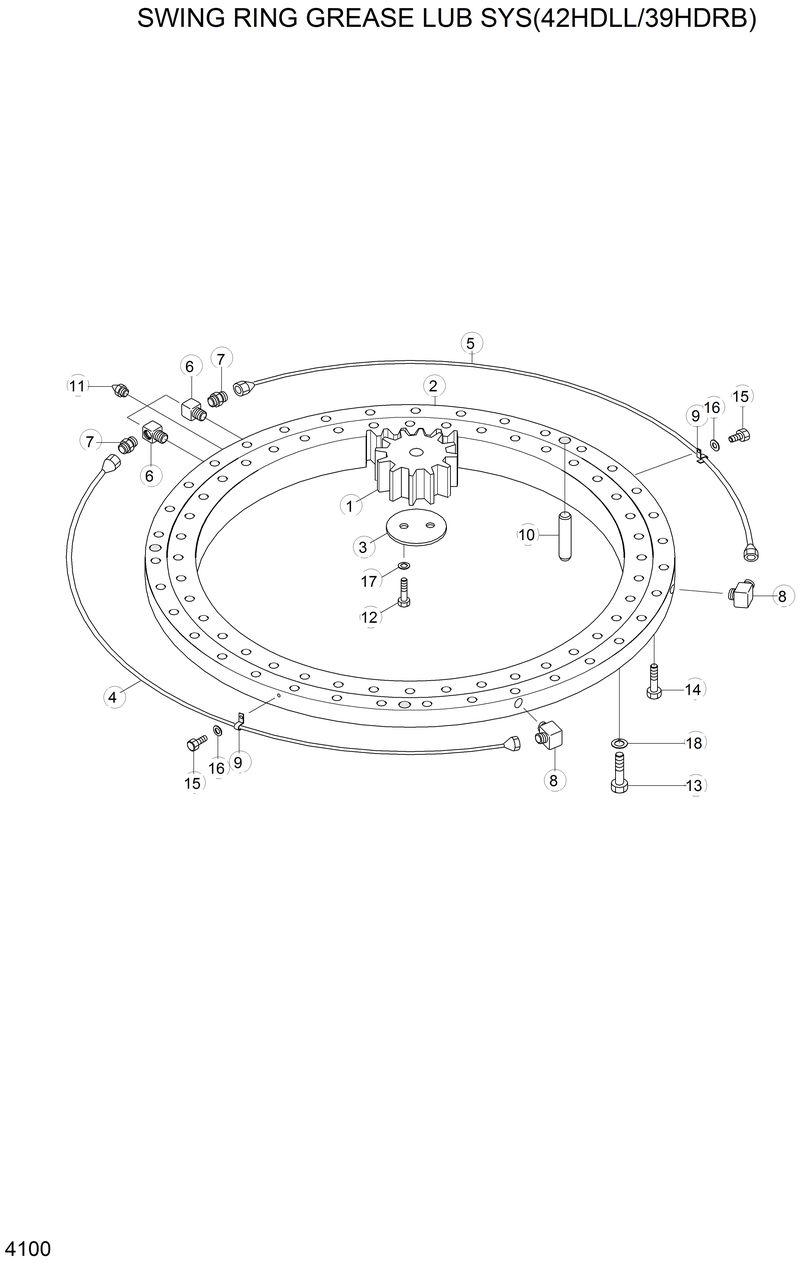

Запчасти Hyundai 42HDLL SWING RING GREASE LUB SYS(42HDLL/39HDRB)

1

81EH-00010

81EH-00010-Pinion-Swing Motor

10

S510-184200

S510-184200-Pin-Dowel

11

S651-810002

S651-810002-Nipple-Grease

12

S017-160402

S017-160402-Bolt-Hex

13

S017-240852

S017-240852-Bolt-Hex

14

S017-241454

S017-241454-Deleted...

15

S017-100152

S017-100152-Bolt-Hex

16

S411-100002

S411-100002-Washer-Spring

17

S411-160002

S411-160002-Washer-Spring

18

S441-240004

S441-240004-Washer-Hardened

2

81EH-00020

81EH-00020-Swing Bearing

3

81EH-00030

81EH-00030-Washer-Plate

4

81EH-00040

81EH-00040-Pipe Comp-Lh

5

81EH-00050

81EH-00050-Pipe Comp-Rh

6

31EH-00610

31EH-00610-Fitting

7

E131-0626

E131-0626-Connector

8

E231-0349

E231-0349-Elbow-90

9

E241-2603

E241-2603-Clamp
