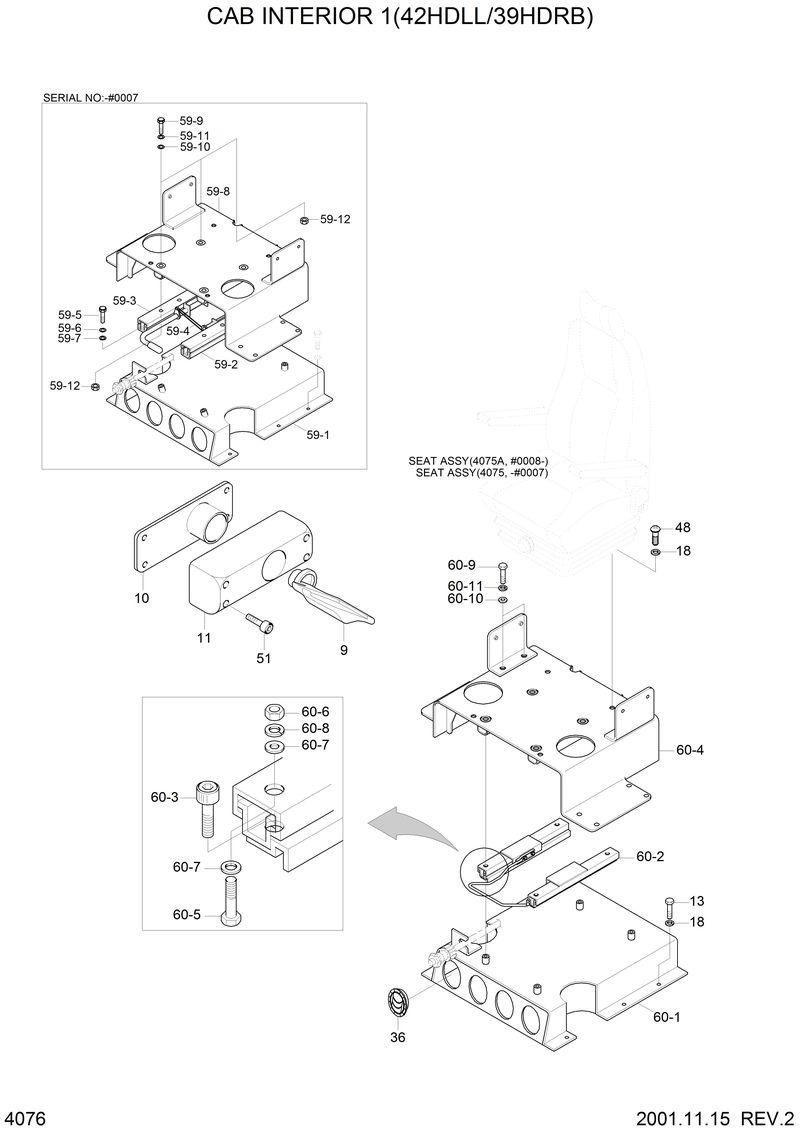

Запчасти Hyundai 42HDLL CAB INTERIOR 1(42HDLL/39HDRB)

71EM-20521

71EM-20521-. Seat Base-Lower

71EM-20511

71EM-20511-Seat Base Assy

71EM-20510

71EM-20510-Seat Base Assy

10

71EM-20250

71EM-20250-Bracket-Cluster

11

71EM-20260

71EM-20260-Cover-Cluster

13

S015-080256

S015-080256-Bolt-Hex

18

S411-080006

S411-080006-Washer-Spring

36

71EM-28010

71EM-28010-Air Vent

48

S161-080256

S161-080256-Screw

51

S105-080756

S105-080756-Bolt-Socket

59

71EM-20460

71EM-20460-Seat Base Assy

59-1

@

@-. Seat Base-Lower

59-10

S403-062002

S403-062002-. Washer-Plain

59-11

S411-060002

S411-060002-. Washer-Spring

59-12

S205-061002

S205-061002-. Nut-Hex

59-5

S161-080166

S161-080166-. Screw

59-8

@

@-. Seat Base-Upper

59-9

S015-060202

S015-060202-. Bolt-Hex

60

71EM-20461

71EM-20461-Seat Base Assy

60-1

71EM-20291

71EM-20291-. Seat Base-Lower

60-10

S403-080002

S403-080002-. Washer-Plain

60-11

S411-080002

S411-080002-. Washer-Spring

60-2

71EM-20600

71EM-20600-. Seat Rail Assy

60-3

S109-080306

S109-080306-. Bolt-Socket

60-4

71EM-20301

71EM-20301-. Seat Base-Upper

60-5

S015-080256

S015-080256-. Bolt-Hex

60-6

S205-081006

S205-081006-. Nut-Hex

60-7

S403-082006

S403-082006-. Washer-Plain

60-7

S403-082006

S403-082006-. Washer-Plain

60-8

S411-080006

S411-080006-. Washer-Spring

60-8

S411-080006

S411-080006-. Washer-Spring

60-9

S015-080252

S015-080252-. Bolt-Hex

9

71EM-20241

71EM-20241-Support-Cluster

N

@

@-Not Individually Supplied

N59-2

@

@-. Seat Rail-Lh

N59-3

@

@-. Seat Rail-Rh

N59-4

@

@-. Bar-Release
