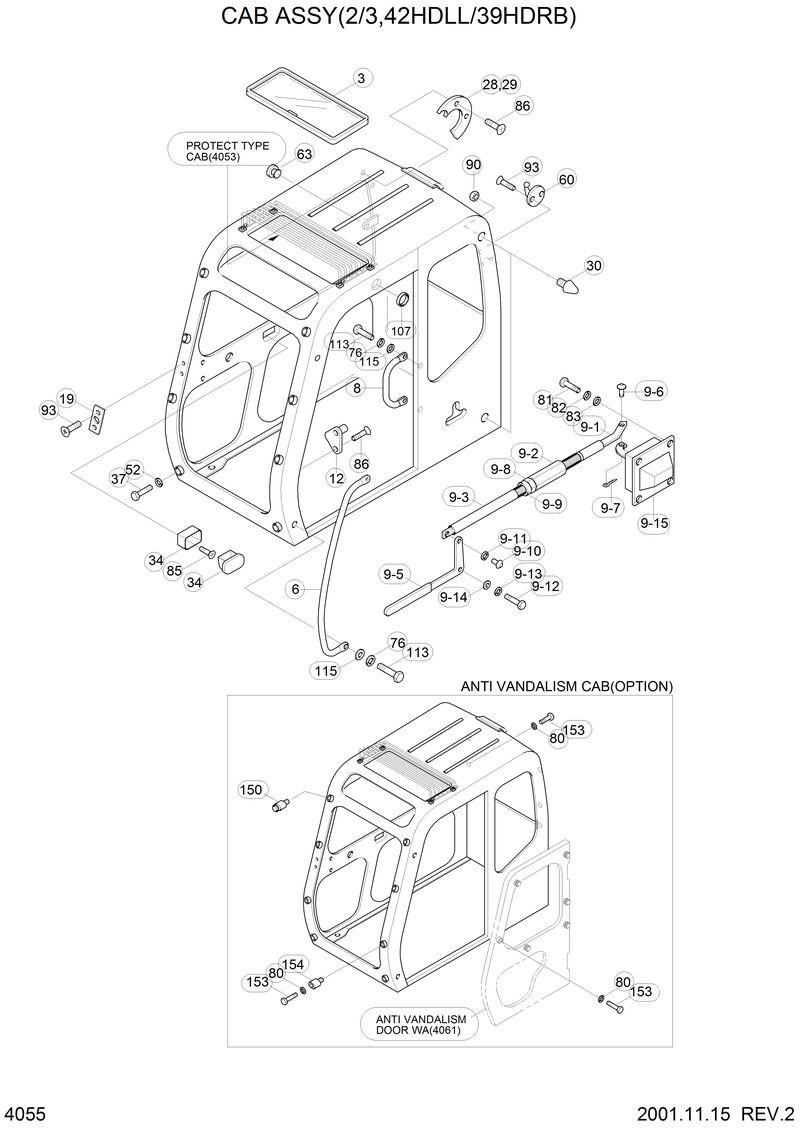

Запчасти Hyundai 42HDLL CAB ASSY(2/3,42HDLL/39HDRB)

*

@

@-Cab Assy

107

S791-016024

S791-016024-. Grommet

113

S017-100256

S017-100256-. Bolt-Hex

115

S403-103006

S403-103006-. Washer-Plain

12

E171-1292

E171-1292-. Pin-Lock

150

76EH-13730

76EH-13730-. Boss

153

S015-080106

S015-080106-. Bolt-Hex

154

76EH-13720

76EH-13720-. Boss

19

E171-1185

E171-1185-. Plate-Nozzle Mtg

28

71EH-12691

71EH-12691-. Stopper-Lh

30

E171-1178

E171-1178-. Rubber-Bumper

34

E171-1176

E171-1176-. Ashtray

37

S017-120206

S017-120206-. Bolt-Hex

52

S411-120006

S411-120006-. Washer-Spring

6

71EH-10640

71EH-10640-. Rail-Hand

60

E171-1172

E171-1172-. Hook-Coat

63

71EH-13230

71EH-13230-. Rubber

76

S411-100006

S411-100006-. Washer-Spring

8

71E6-26301

71E6-26301-. Handle

80

S403-082006

S403-082006-. Washer-Plain

81

S015-060206

S015-060206-. Bolt-Hex

82

S411-060006

S411-060006-. Washer-Spring

83

S403-062006

S403-062006-. Washer-Plain

86

S145-080166

S145-080166-. Screw

9-1

71EH-11200

71EH-11200-.. Rod-Latch,Ff

9-10

71EH-11250

71EH-11250-.. Pin-Round

9-11

S431-040006

S431-040006-.. Washer-Lock

9-12

S015-060106

S015-060106-.. Bolt-Hex

9-13

S403-062006

S403-062006-.. Washer-Plain

9-14

S411-060006

S411-060006-.. Washer-Spring

9-15

71EH-11260

71EH-11260-.. Latch Assy

9-2

71EH-11210

71EH-11210-.. Nut

9-3

71EH-11220

71EH-11220-.. Rod-Latch,Rr

9-5

71EH-11230

71EH-11230-.. Lever-Latch

9-6

71EH-11240

71EH-11240-.. Pin-Round

9-7

S461-050152

S461-050152-.. Pin-Split

9-8

S205-081006

S205-081006-.. Nut-Hex

9-9

S403-082006

S403-082006-.. Washer-Plain

90

S205-101006

S205-101006-. Nut-Hex

93

S151-030166

S151-030166-. Screw

N29

71EH-12701

71EH-12701-. Stopper-Rh

N3

71EH-12121

71EH-12121-. Sun Roof Assy

N9

71EH-11171

71EH-11171-. Door Latch Assy
