Запчасти Hyundai 42HDLL CAB ELECTRIC(39HDRB)

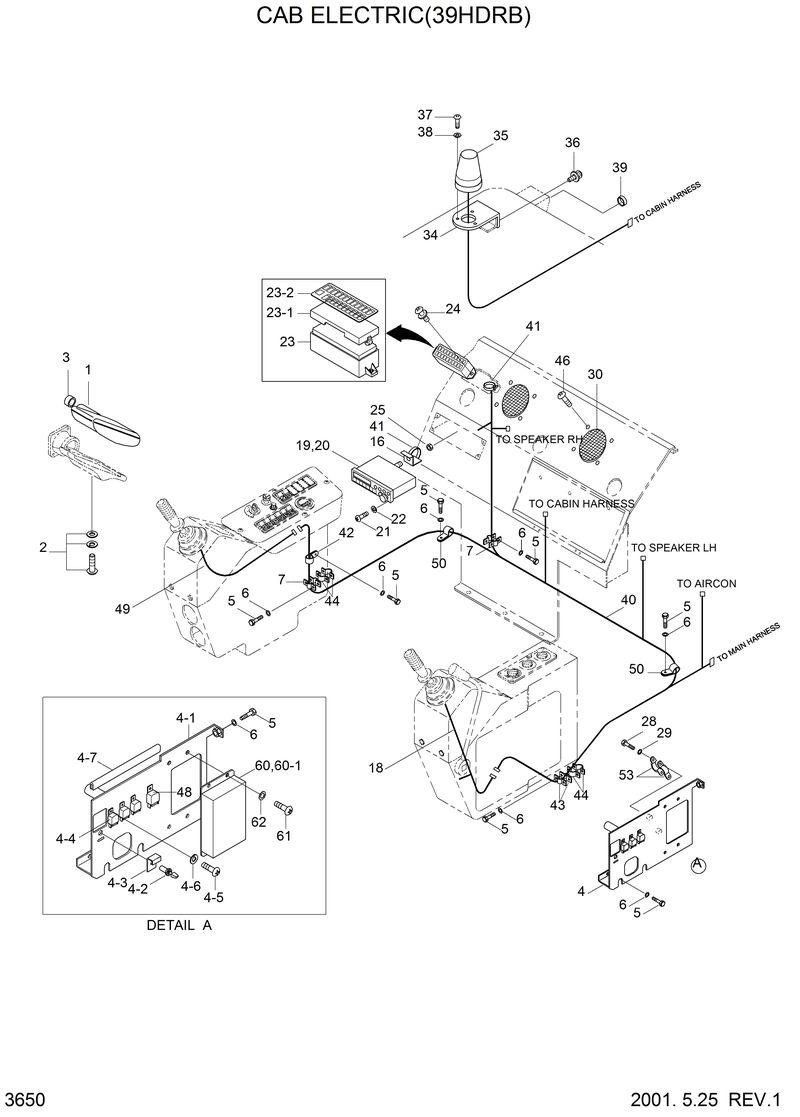

Схема запчастей Hyundai 42HDLL - CAB ELECTRIC(39HDRB)

Артикул

Название

Примечание

Количество

21E9-20320

21E9-20320-Cassette Radio

1

21E6-00200

21E6-00200-Cluster Assy

16

21E1-49810

21E1-49810-Plate-Cassette Radio

18

21FL-00050

21FL-00050-Harness-Ext,Lh

2

S175-060166

S175-060166-Bolt-Hex,Rd Hd

20-1

21E1-60340

21E1-60340-. Harness-Ext

20-1

21E1-60340

21E1-60340-. Harness-Ext

20-2

21E1-4992

21E1-4992-. Knob-Volum

20-2

21E1-4992

21E1-4992-. Knob-Volum

20-3

21E1-4993

21E1-4993-. Knob-Control

20-3

21E1-4993

21E1-4993-. Knob-Control

20-4

21E1-4994

21E1-4994-. Vol Knob

20-4

21E1-4994

21E1-4994-. Vol Knob

23

21EM-30520

21EM-30520-Box-Fuse

23-1

21EM-31200

21EM-31200-. Cover-Fuse Box

23-2

21EM-31020

21EM-31020-. Decal-Fuse Box

24

S132-062546

S132-062546-Screw-W/Washer

25

S201-051006

S201-051006-Nut-Hex

28

S015-080166

S015-080166-Bolt-Hex

29

S411-080006

S411-080006-Washer-Spring

3

21E6-20290

21E6-20290-Grommet-Rubber

30

21EM-40220

21EM-40220-Speaker Assy

34

21EK-00580

21EK-00580-Bracket-Beacon Lamp

35

21EK-10420

21EK-10420-Beacon Lamp Assy

36

S132-062066

S132-062066-Screw-W/Washer

37

S161-050166

S161-050166-Screw

37

S161-050166

S161-050166-Screw

38

S411-050006

S411-050006-Washer-Spring

38

S411-050006

S411-050006-Washer-Spring

39

S681-100400

S681-100400-Grommet

4

21E5-00230

21E5-00230-Relay Board Assy

4-1

21E5-00240

21E5-00240-. Bracket

4-2

21E9-2003

21E9-2003-. Sw-Prolix

4-3

21E1-49430

21E1-49430-. Ring-Lock

4-4

21E4-0011

21E4-0011-. Relay-4p

4-5

S161-060166

S161-060166-. Screw

4-6

S411-060006

S411-060006-. Washer-Spring

4-7

S791-030175

S791-030175-. Grommet-Plate

40

21FR-00014

21FR-00014-Harness Main

41

S551-050203

S551-050203-Clamp-Band

42

21E9-00170

21E9-00170-Clip-Harness

43

21EM-40160

21EM-40160-Clamp

44

21EM-40170

21EM-40170-Clamp

46

S151-040166

S151-040166-Screw

48

21E4-0011

21E4-0011-Relay-4p

49

21FL-00060

21FL-00060-Harness-Ext,Rh

5

S017-100206

S017-100206-Bolt-Hex

50

S543-280002

S543-280002-Clamp-Tube

53

21EM-40180

21EM-40180-Clamp

6

S411-100006

S411-100006-Washer-Spring

60

21E9-32130

21E9-32130-Cpu Controller

60-1

21E9-32140

21E9-32140-. Ep-Rom

61

S161-060166

S161-060166-Screw

62

S411-060006

S411-060006-Washer-Spring

7

21EM-40190

21EM-40190-Clamp

N19

21E9-20330

21E9-20330-Cassette Radio

N20

21E9-20310

21E9-20310-Cassette Radio

Выбрано товаров: 57
