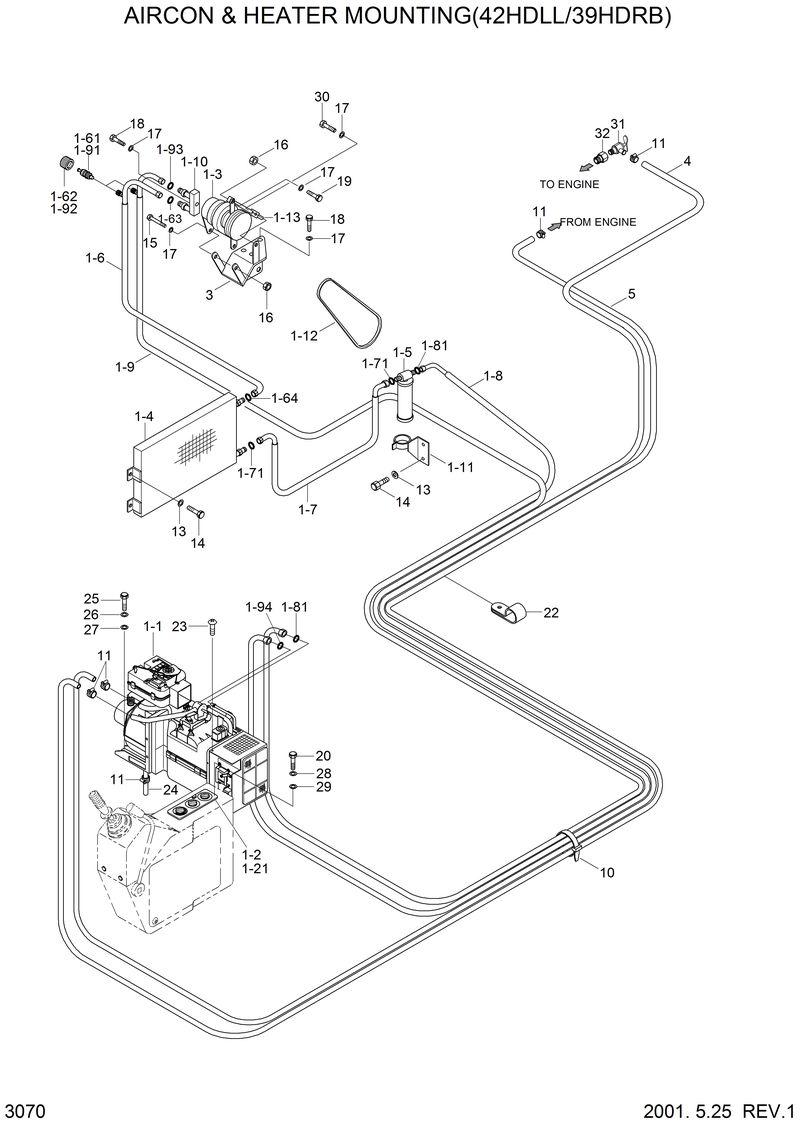

Запчасти Hyundai 42HDLL AIRCON & HEATER MOUNTING(42HDLL/39HDRB)
№
Артикул
Название
Примечание
Количество
21FD-40201
21FD-40201-Hose-Inlet
21FD-40210
21FD-40210-Hose-Outlet
1
11FL-94010
11FL-94010-Air Con & Heater Assy
1-1
11EM-90020
11EM-90020-. Heater & Evap Unit
1-10
12E3-3509
12E3-3509-. Plate-Comp Joint
1-11
11E6-36100
11E6-36100-. Bracket-R/Drier
1-13
14L1-01330
14L1-01330-. Piece-Tension
1-2
11EM-90030
11EM-90030-. Control Assy
1-21
AE60001100-2
AE60001100-2-.. Knob
1-3
11EM-90040
11EM-90040-. Compressor Assy
1-4
11EM-90050
11EM-90050-. Condenser Assy
1-5
11E6-36050
11E6-36050-. R/Drier Assy
1-6
11E9-90070
11E9-90070-. Hose Assy-Discharge
1-62
A3043-007-01-4
A3043-007-01-4-.. Cap-H
1-7
11EM-90060
11EM-90060-. Hose-Liquid(A)
1-8
11FL-90060
11FL-90060-. Hose-Liquid(B)
1-9
11W1-90080
11W1-90080-. Hose-Suction
1-91
A3041-005-01-4
A3041-005-01-4-.. Valve-Core
1-91
A3041-005-01-4
A3041-005-01-4-.. Valve-Core
1-92
A3043-008-01-4
A3043-008-01-4-.. Cap-L
1-93
A5000-587-99-1
A5000-587-99-1-.. O-Ring
1-93
A5000-587-99-1
A5000-587-99-1-.. O-Ring
10
S551-035146
S551-035146-Tie-Wire
11
S520-015000
S520-015000-Clamp-Hose
13
S411-080002
S411-080002-Washer-Spring
14
S015-080202
S015-080202-Bolt-Hex
15
S017-100352
S017-100352-Bolt-Hex
16
S205-101002
S205-101002-Nut-Hex
17
S411-100002
S411-100002-Washer-Spring
18
S017-100302
S017-100302-Bolt-Hex
19
S017-100502
S017-100502-Bolt-Hex
20
S015-050152
S015-050152-Bolt-Hex
22
S542-220002
S542-220002-Clamp-Tube
23
S152-040122
S152-040122-Screw-Tapping
24
11EK-92060
11EK-92060-Hose-Drain
28
S411-050002
S411-050002-Washer-Spring
29
S401-051002
S401-051002-Washer-Plain
3
12E2-3504
12E2-3504-Bracket-Comp.Mtg
30
S018-100252
S018-100252-Bolt-Hex
32
21L1-4006
21L1-4006-Adapter
4
21FL-40201
21FL-40201-Hose-Inlet
5
21FL-40210
21FL-40210-Hose-Outlet
Выбрано товаров: 51
