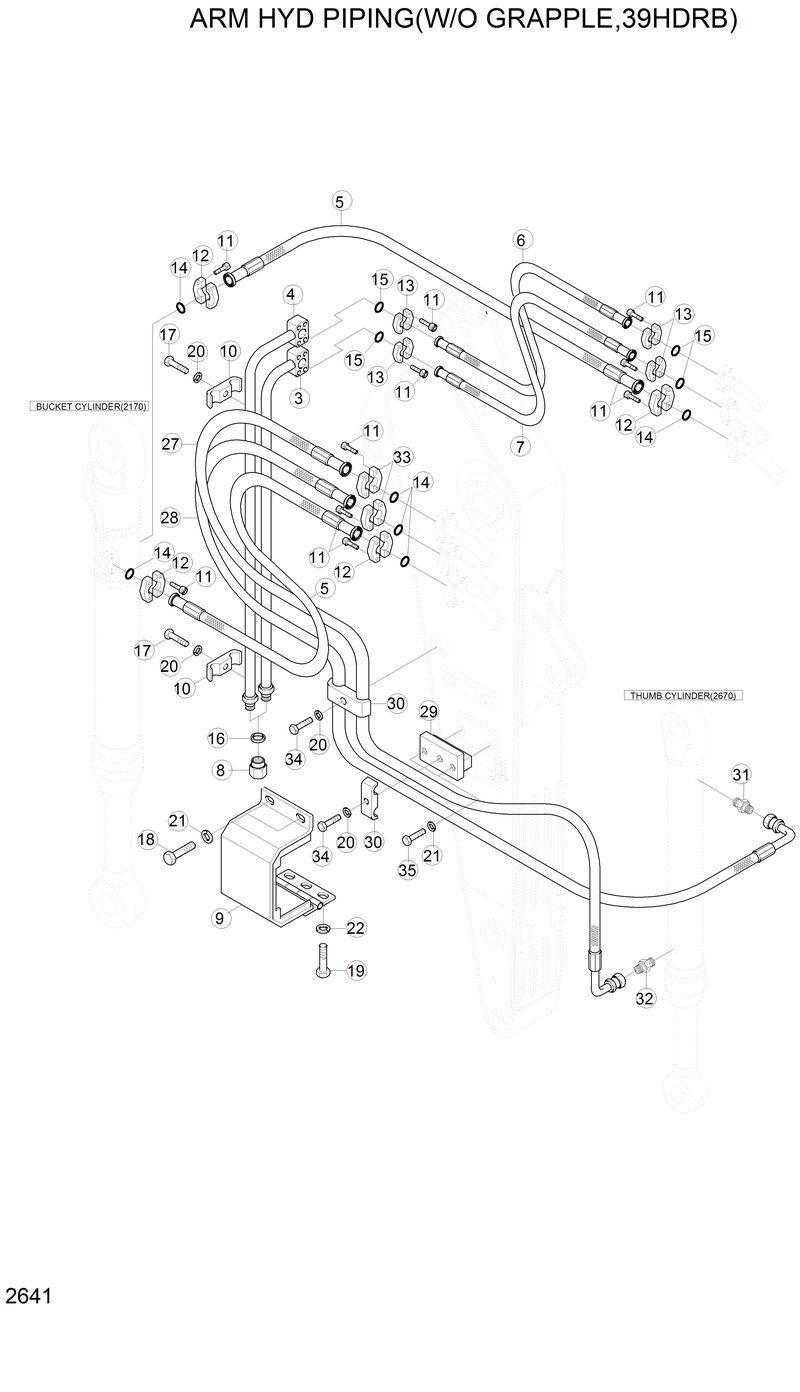

Запчасти Hyundai 42HDLL ARM HYD PIPING(W/O GRAPPLE,39HDRB)

10

31FR-60150

31FR-60150-Clamp-Pipe

11

S107-100354

S107-100354-Bolt-Socket

12

P173-160104

P173-160104-Flange-Split

13

P174-120103

P174-120103-Flange-Split

14

CO0423A

CO0423A-O-Ring

15

CO0418A

CO0418A-O-Ring

16

2-014

2-014-Seal-Lok O-Ring

17

S017-160602

S017-160602-Bolt-Hex

18

S015-080252

S015-080252-Bolt-Hex

19

S015-060202

S015-060202-Bolt-Hex

20

S411-160002

S411-160002-Washer-Spring

21

S411-080002

S411-080002-Washer-Spring

22

S411-060002

S411-060002-Washer-Spring

27

31FR-60370

31FR-60370-Hose Assy

28

31FR-60380

31FR-60380-Hose Assy

29

31FR-60390

31FR-60390-Clamp Wa

3

31FR-60180

31FR-60180-Pipe Wa

30

E131-0333

E131-0333-Clamp-Pipe

31

052643500

052643500-Connector

32

052642500

052642500-Elbow 90

33

P174-160105

P174-160105-Flange-Split

34

S017-160802

S017-160802-Bolt-Hex

35

S015-080352

S015-080352-Bolt-Hex

4

31FR-60190

31FR-60190-Pipe Wa

5

P703-167332

P703-167332-Hose Assy

6

31FR-60220

31FR-60220-Hose Assy

7

31FR-60230

31FR-60230-Hose Assy

8

31FR-60270

31FR-60270-Cap

9

31FR-60310

31FR-60310-Cover Wa-Valve
