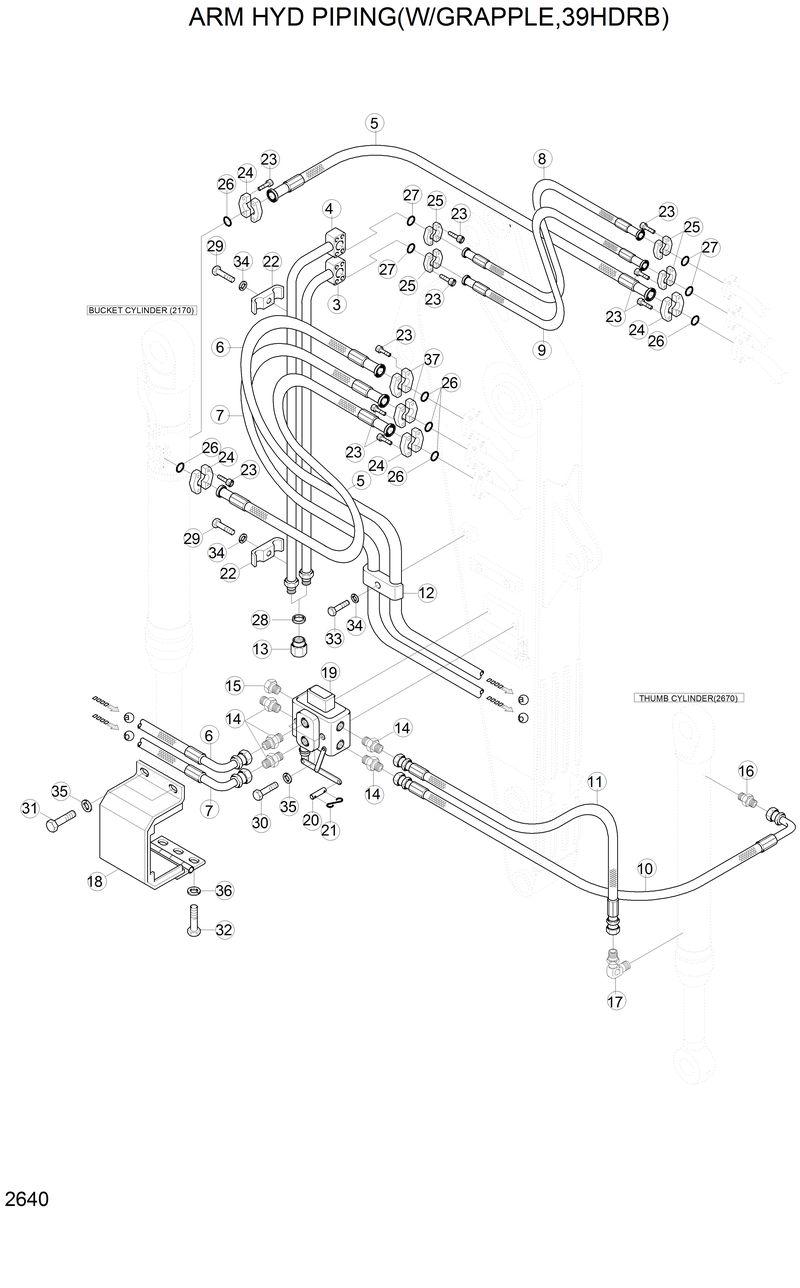

Запчасти Hyundai 42HDLL ARM HYD PIPING(W/GRAPPLE,39HDRB)

10

31FR-60240

31FR-60240-Hose Assy

11

31FR-60250

31FR-60250-Hose Assy

12

E131-0333

E131-0333-Clamp-Pipe

13

31FR-60270

31FR-60270-Cap

14

31FR-60280

31FR-60280-Connector

15

9403374

9403374-Plug

16

052643500

052643500-Connector

17

052642500

052642500-Elbow 90

18

31FR-60310

31FR-60310-Cover Wa-Valve

19

P33-0347

P33-0347-Selector Valve

20

31FR-60320

31FR-60320-Pin

21

31FR-60330

31FR-60330-Lock-Pin

22

31FR-60150

31FR-60150-Clamp-Pipe

23

S107-100354

S107-100354-Bolt-Socket

24

P173-160104

P173-160104-Flange-Split

25

P174-120103

P174-120103-Flange-Split

26

CO0423A

CO0423A-O-Ring

27

CO0418A

CO0418A-O-Ring

28

2-014

2-014-Seal-Lok O-Ring

29

S017-160602

S017-160602-Bolt-Hex

3

31FR-60180

31FR-60180-Pipe Wa

30

S015-080902

S015-080902-Bolt-Hex

31

S015-080252

S015-080252-Bolt-Hex

32

S015-060202

S015-060202-Bolt-Hex

33

S017-160802

S017-160802-Bolt-Hex

34

S411-160002

S411-160002-Washer-Spring

35

S411-080002

S411-080002-Washer-Spring

36

S411-060002

S411-060002-Washer-Spring

37

P174-160105

P174-160105-Flange-Split

4

31FR-60190

31FR-60190-Pipe Wa

5

P703-167332

P703-167332-Hose Assy

6

31FR-60200

31FR-60200-Hose Assy

7

31FR-60210

31FR-60210-Hose Assy

8

31FR-60220

31FR-60220-Hose Assy

9

31FR-60230

31FR-60230-Hose Assy
