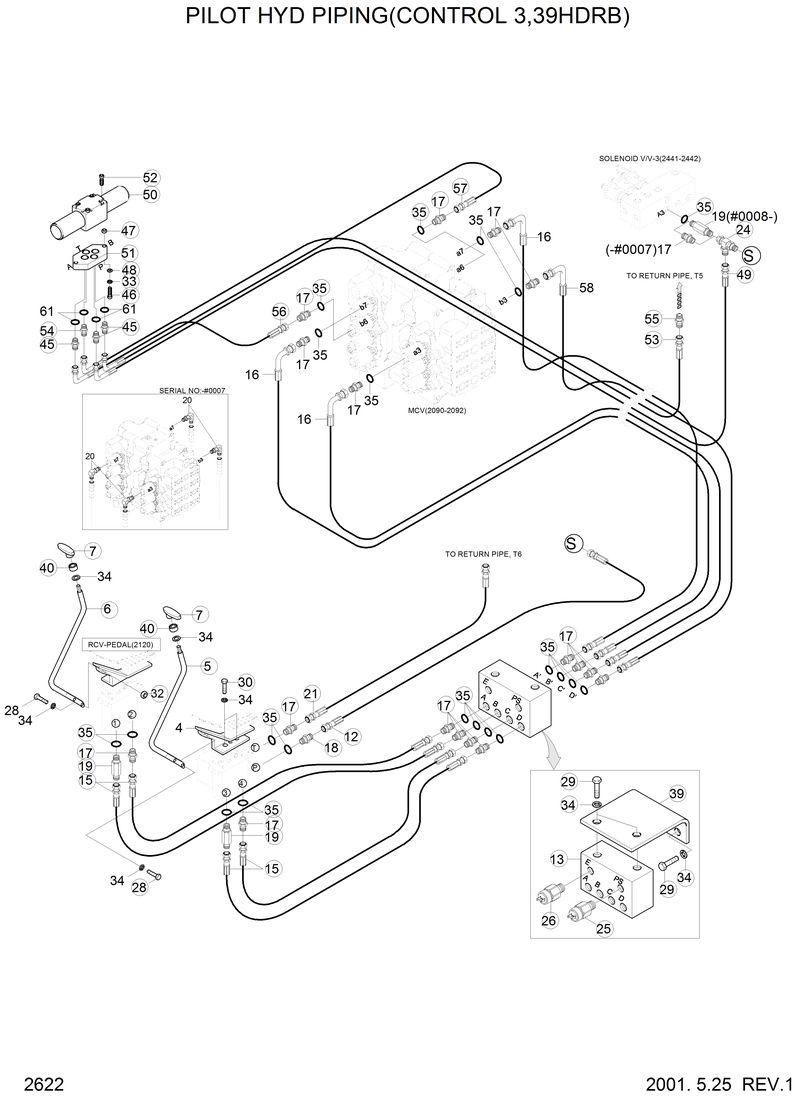

Запчасти Hyundai 42HDLL PILOT HYD PIPING(CONTROL 3,39HDRB)

P010-110009

P010-110009-Connector-Long

P010-110009

P010-110009-Connector-Long

P010-110002

P010-110002-Connector

P010-110002

P010-110002-Connector

12

P620-042078

P620-042078-Hose Assy-Thd 0x90

13

31E9-22200

31E9-22200-Shuttle Valve

15

P600-042036

P600-042036-Hose Assy-Thd

16

P620-042050

P620-042050-Hose Assy

18

31EK-20100

31EK-20100-Filter-Last Guard

20

P020-110001

P020-110001-Elbow-90

21

P600-042084

P600-042084-Hose Assy

24

32E6-10460

32E6-10460-Tee-Swivel

25

31E5-40540

31E5-40540-Switch-Press,T/Alarm

26

31E5-40520

31E5-40520-Switch-Press,A/Idle

28

S017-100206

S017-100206-Bolt-Hex

29

S017-100256

S017-100256-Bolt-Hex

30

S017-100306

S017-100306-Bolt-Hex

32

S206-101002

S206-101002-Nut-Hex

33

S411-060002

S411-060002-Washer-Spring

34

S411-100006

S411-100006-Washer-Spring

35

S631-011001

S631-011001-O-Ring

39

31E9-10540

31E9-10540-Bracket-Shuttle Vlv

4

31EH-00550

31EH-00550-Plate-Pedal

40

E131-1047

E131-1047-Ring

45

P010-310003

P010-310003-Connector

46

S015-060352

S015-060352-Bolt-Hex

47

S203-061002

S203-061002-Nut-Hex

48

S403-062002

S403-062002-Washer-Plain

49

P600-042062

P600-042062-Hose Assy

5

31EH-00620

31EH-00620-Lever-Lh

50

P33-0004

P33-0004-Selector Valve

51

P33-0029

P33-0029-Plate-Valve Sub

52

P3653

P3653-Bolt

53

31FD-20050

31FD-20050-Hose Assy

54

P010-810002

P010-810002-Connector

55

9402747

9402747-Connector

56

P620-042031

P620-042031-Hose Assy

57

P620-042041

P620-042041-Hose Assy

58

P620-042042

P620-042042-Hose Assy-Thd 0x90

6

31EH-00630

31EH-00630-Lever-Rh

61

S611-012001

S611-012001-O-Ring

7

E131-1019

E131-1019-Knob
