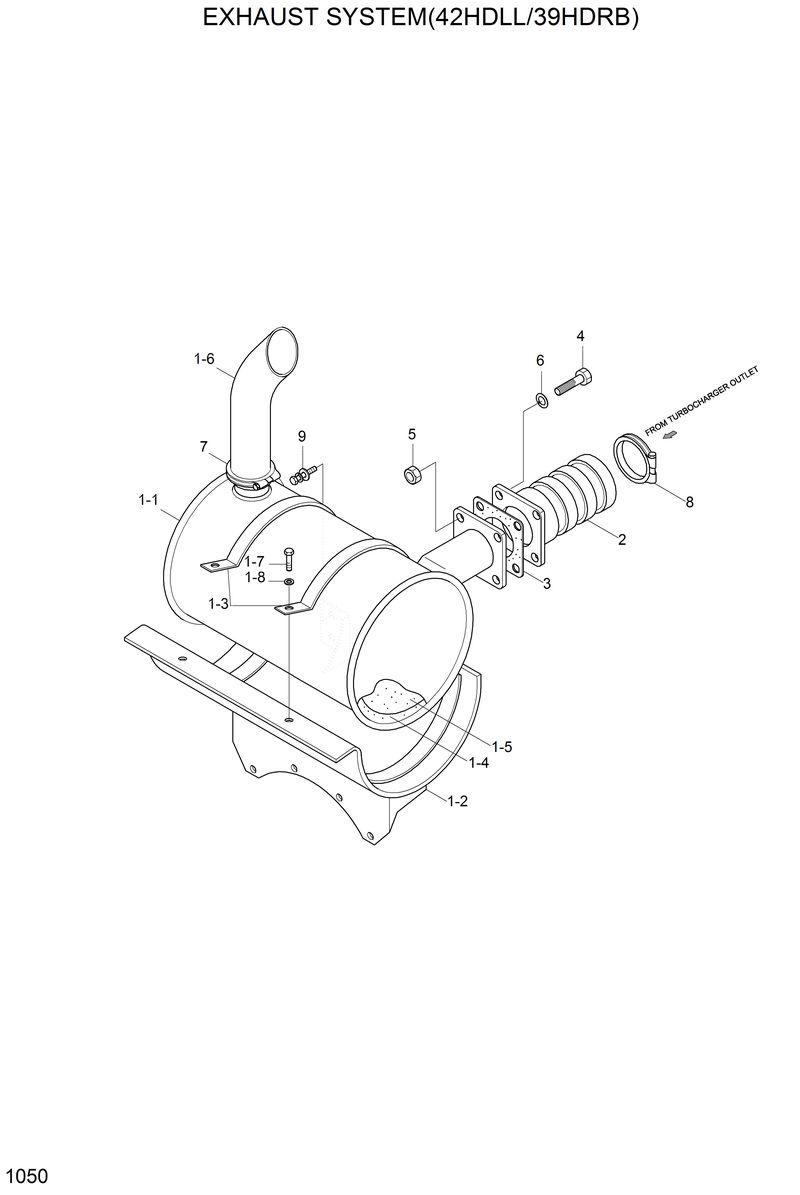

Запчасти Hyundai 42HDLL EXHAUST SYSTEM(42HDLL/39HDRB)

1

11E9-32200

11E9-32200-Muffler Sub Assy

1-1

11E9-32020

11E9-32020-. Muffler

1-2

11E9-32090

11E9-32090-. Bracket

1-3

11EM-30130

11EM-30130-. Clamp-Band

1-4

11E9-3005

11E9-3005-. Insulator

1-6

11E9-32051

11E9-32051-. Tail Pipe

1-7

S017-100302

S017-100302-. Bolt-Hex

1-8

S403-102002

S403-102002-. Washer-Plain

2

11E9-33010

11E9-33010-Pipe-Flexible

3

11E5-3003

11E5-3003-Gasket

4

S017-120402

S017-120402-Bolt-Hex

5

S207-121002

S207-121002-Nut-Hex

6

S411-120002

S411-120002-Washer-Spring

7

11E9-32060

11E9-32060-Clamp-Exhaust Pipe

8

11EH-32080

11EH-32080-Clamp-Pipe

9

S037-123022

S037-123022-Bolt-W/Washer

N1-5

11E9-3006

11E9-3006-. Insulator
