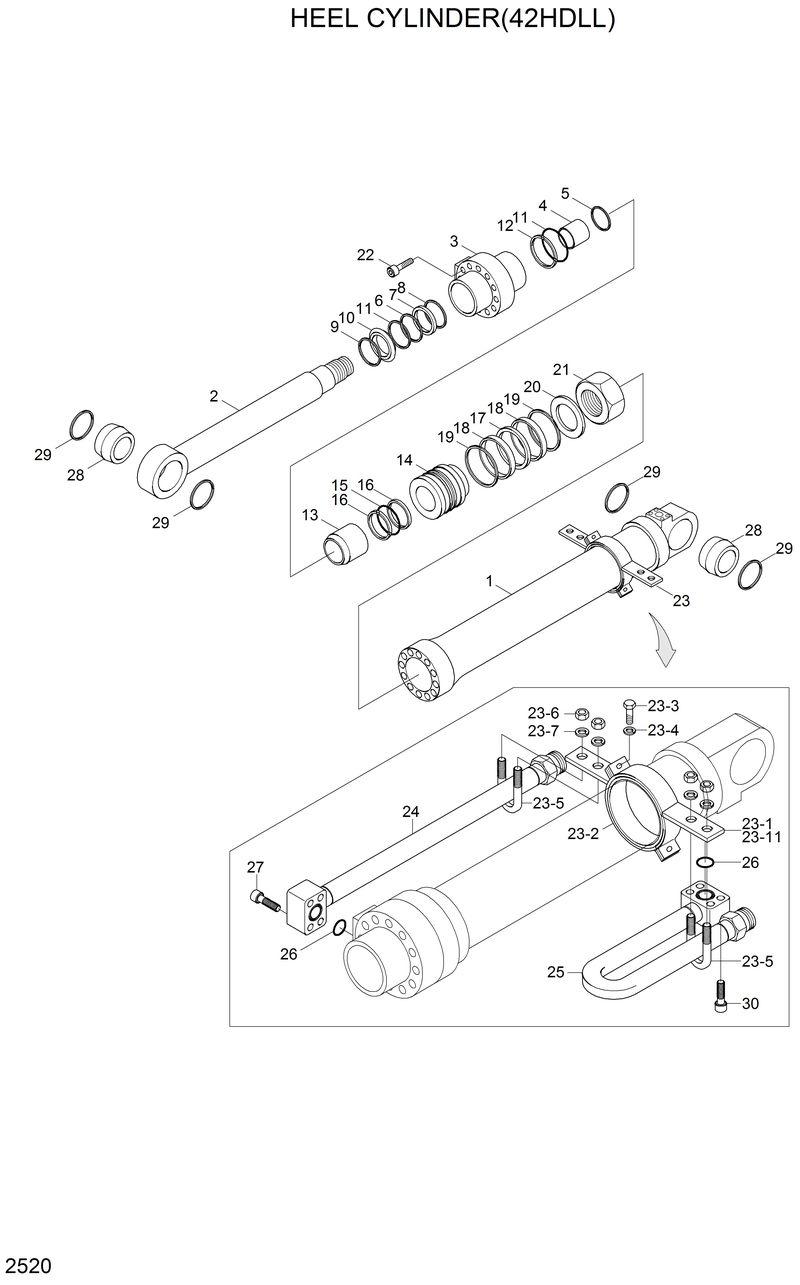

Запчасти Hyundai 42HDLL HEEL CYLINDER(42HDLL)

*

32W2-60010

32W2-60010-Heel Cylinder Assy

*-1

31Y1-16770

31Y1-16770-. Heel Cylinder

1

31Y1-16780

31Y1-16780-.. Tube Assy

10

Y190-126000

Y190-126000-.. Ring-Snap

13

31YC-23050

31YC-23050-.. Ring-Cushion

14

31Y1-15000

31Y1-15000-.. Piston

2

31Y1-16830

31Y1-16830-.. Rod Assy

20

31YC-66080

31YC-66080-.. Washer-Lock

21

31YC-61142

31YC-61142-.. Nut-Lock

22

S109-200904

S109-200904-.. Bolt-Socket

23

31Y1-16870

31Y1-16870-. Band Assy

23-1

31Y1-16880

31Y1-16880-.. Band Sub Assy

23-11

31YC-32240

31YC-32240-.. Band

23-2

31Y1-17450

31Y1-17450-.. Band Sub Assy

23-3

S015-120452

S015-120452-.. Bolt-Hex

23-4

S411-120002

S411-120002-.. Washer-Spring

23-5

S071-023430

S071-023430-.. U-Bolt

23-6

S201-101002

S201-101002-.. Nut-Hex

23-7

S411-100002

S411-100002-.. Washer-Spring

24

31Y1-16890

31Y1-16890-. Pipe Assy-R

25

31Y1-17200

31Y1-17200-. Pipe Assy-B

27

S107-120554

S107-120554-. Bolt

28

31YC-11550

31YC-11550-.. Bush-Pin

30

S107-100554

S107-100554-. Bolt-Socket

4

S732-110045

S732-110045-.. Bushing

5

Y191-117000

Y191-117000-.. Ring-Snap

K

31Y1-16900

31Y1-16900-Seal Kit(6-9,11,12,

K11

S631-140004

S631-140004-.. O-Ring

K12

S641-140003

S641-140003-.. Ring-Back Up

K15

S632-095004

S632-095004-.. O-Ring

K16

S642-095003

S642-095003-.. Ring-Back Up

K17

Y420-150000

Y420-150000-.. Seal-Piston

K18

Y310-150003

Y310-150003-.. Ring-Wear

K19

Y440-150002

Y440-150002-.. Ring-Dust

K26

Y171-024004

Y171-024004-. O-Ring

K29

Y000-090000

Y000-090000-.. Seal-Dust

K7

Y180-110020

Y180-110020-.. Ring-Back Up

K8

Y240-110011

Y240-110011-.. Ring-Buffer

K9

Y110-110011

Y110-110011-.. Wiper-Dust

N3

31Y1-14990

31Y1-14990-.. Gland

NK6

Y220-110011

Y220-110011-.. Seal-Rod
