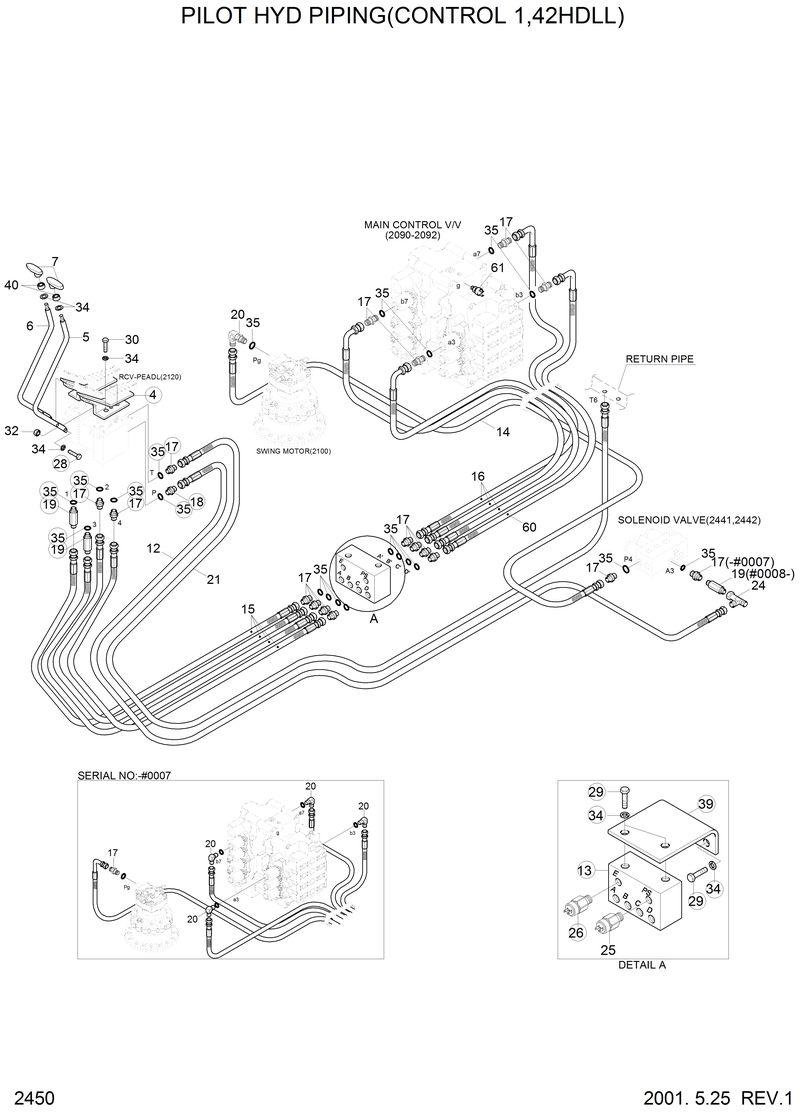

Запчасти Hyundai 42HDLL PILOT HYD PIPING(CONTROL 1,42HDLL)

P020-110001

P020-110001-Elbow-90

P020-110001

P020-110001-Elbow-90

P010-110009

P010-110009-Connector-Long

P010-110009

P010-110009-Connector-Long

P010-110002

P010-110002-Connector

P010-110002

P010-110002-Connector

12

P620-042098

P620-042098-Hose Assy-Thd 0x90

13

31E9-22200

31E9-22200-Shuttle Valve

14

P620-042051

P620-042051-Hose Assy

15

P600-042056

P600-042056-Hose Assy-Thd

16

P620-042050

P620-042050-Hose Assy

18

31EK-20100

31EK-20100-Filter-Last Guard

21

P600-042102

P600-042102-Hose Assy-Thd

24

32E6-10460

32E6-10460-Tee-Swivel

25

31E5-40540

31E5-40540-Switch-Press,T/Alarm

26

31E5-40520

31E5-40520-Switch-Press,A/Idle

28

S017-100206

S017-100206-Bolt-Hex

29

S017-100256

S017-100256-Bolt-Hex

30

S017-100306

S017-100306-Bolt-Hex

32

S206-101002

S206-101002-Nut-Hex

34

S411-100006

S411-100006-Washer-Spring

35

S631-011001

S631-011001-O-Ring

39

31E9-10540

31E9-10540-Bracket-Shuttle Vlv

4

31EH-00550

31EH-00550-Plate-Pedal

40

E131-1047

E131-1047-Ring

5

31EH-00620

31EH-00620-Lever-Lh

6

31EH-00630

31EH-00630-Lever-Rh

60

P620-042042

P620-042042-Hose Assy-Thd 0x90

61

31E5-40560

31E5-40560-Switch-Press, A/Idle

7

E131-1019

E131-1019-Knob
