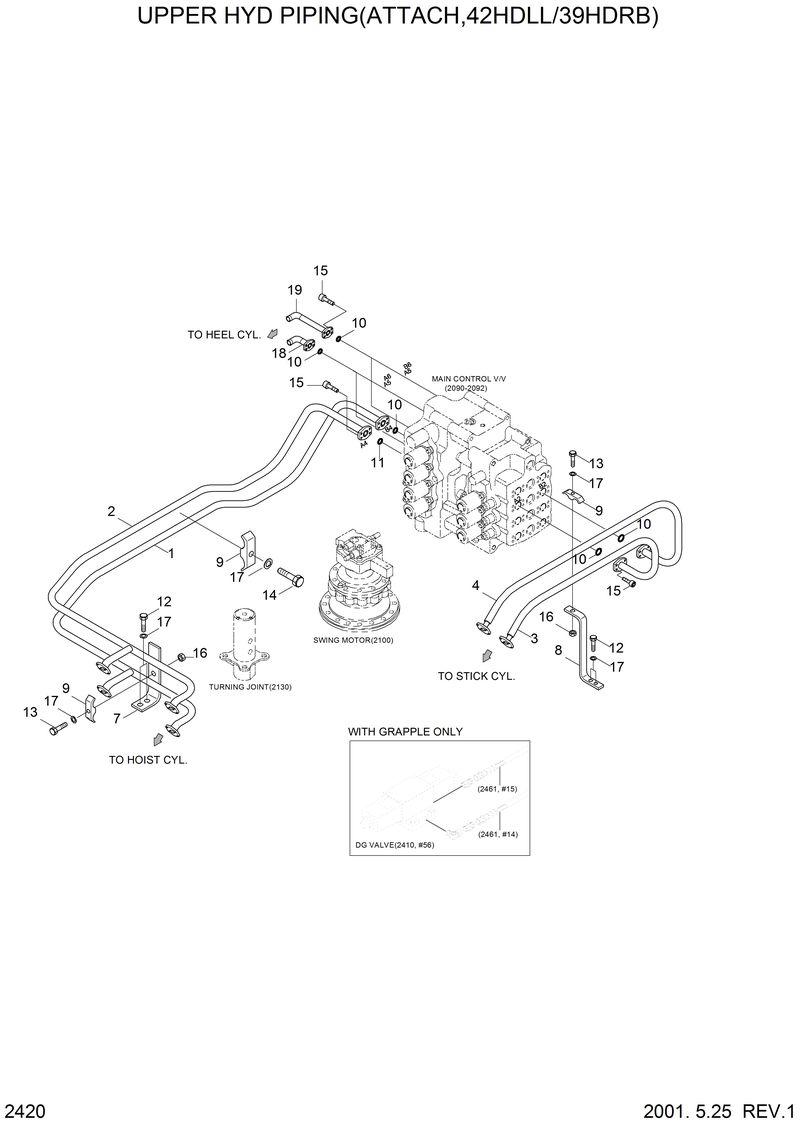

Запчасти Hyundai 42HDLL UPPER HYD PIPING(ATTACH,42HDLL/39HDRB)

1

31E9-0014

31E9-0014-Pipe Assy

10

Y171-019001

Y171-019001-O-Ring

11

Y171-024001

Y171-024001-O-Ring

12

S017-100252

S017-100252-Bolt-Hex

13

S017-100702

S017-100702-Bolt-Hex

14

S017-100752

S017-100752-Bolt-Hex

15

S109-100306

S109-100306-Bolt-Socket

16

S205-101002

S205-101002-Nut-Hex

17

S411-100002

S411-100002-Washer-Spring

18

RL800-0101

RL800-0101-Pipe Assy

19

RL800-0102

RL800-0102-Pipe Assy

2

31E9-0015

31E9-0015-Pipe Assy

3

32W2-13010

32W2-13010-Pipe Assy

4

32W2-13020

32W2-13020-Pipe Assy

7

31E9-13050

31E9-13050-Bracket-Boom

8

32W2-13030

32W2-13030-Bracket-Attach

9

31EM-12170

31EM-12170-Clamp-Pipe
