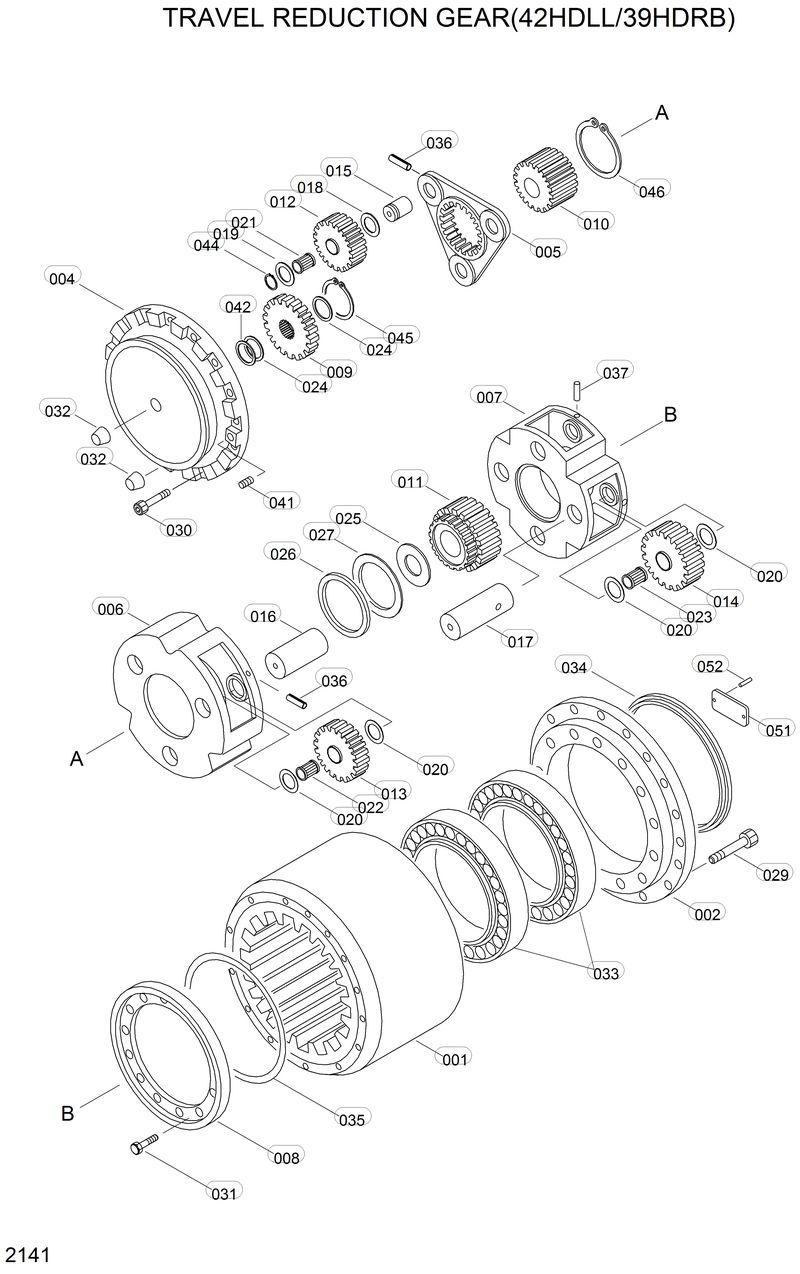

Запчасти Hyundai 42HDLL TRAVEL REDUCTION GEAR(42HDLL/39HDRB)

*-2

3560BX073

3560BX073-T/Reduction Gear

001

35050BAA-001

35050BAA-001-Ring Gear

002

3530800138

3530800138-Housing

004

35050BAA-004

35050BAA-004-Cover-Side

008

3530800233

3530800233-Retainer-Bearing

009

35050BBA-009

35050BBA-009-Gear-Sun73 No1

010

35050BAA-010

35050BAA-010-Gear-Sun No2

011

35050BAA-011

35050BAA-011-Gear-Sun No3

024

35050BAA-024

35050BAA-024-Ring-Thrust

025

63050-AA-285

63050-AA-285-Ring-Thrust

026

63050-AA-289

63050-AA-289-Ring-Thrust

029

OSBM20100

OSBM20100-Screw-Hex

030

OSBM1035

OSBM1035-Screw-Hex

031

PWBM1230M

PWBM1230M-Screw-Hex

032

OBP12

OBP12-Plug

033

35050BAA-033

35050BAA-033-Bearing-Angular

034

P297

P297-Seal-Floating

035

35050-00-035

35050-00-035-Shim

041

OSSSM1030

OSSSM1030-Screw-Set

042

35050BAA-042

35050BAA-042-Shim

045

PWR110

PWR110-Clip

046

PWR130

PWR130-Clip

NS006

3520800218

3520800218-Carrier No2

NS007

3520800250

3520800250-Carrier No3

S

3550800298

3550800298-Carrier-No2.Sub Assy

S

3550800326

3550800326-Carrier-No3.Sub Assy

S

3550BX073-05

3550BX073-05-Carrier-No1.Sub Assy

S005

35050BBA-005

35050BBA-005-Carrier73 No.1

S012

35050BBA-012

35050BBA-012-Gear-Planetary73 No1

S013

35050BAA-013

35050BAA-013-Gear-Planetary No2

S014

35050-00-014

35050-00-014-Gear-Planetary No3

S015

35050BAA-015

35050BAA-015-Pin No1

S016

35050BAA-016

35050BAA-016-Pin No2

S017

35050-00-017

35050-00-017-Pin No3

S018

35050BAA-018

35050BAA-018-Plate-Side

S019

35050BAA-019

35050BAA-019-Plate-Side

S020

35050BAA-020

35050BAA-020-Plate-Side

S021

PKT505825E4

PKT505825E4-Gauge-Needle

S022

PKT597132

PKT597132-Gauge-Needle

S023

PBN506006

PBN506006-Gauge-Needle

S027

3550800193

3550800193-Shim

S036

OSPV625

OSPV625-Pin-Spring

S037

OSPV832

OSPV832-Pin-Spring

S044

OSR50

OSR50-Ring-Snap
