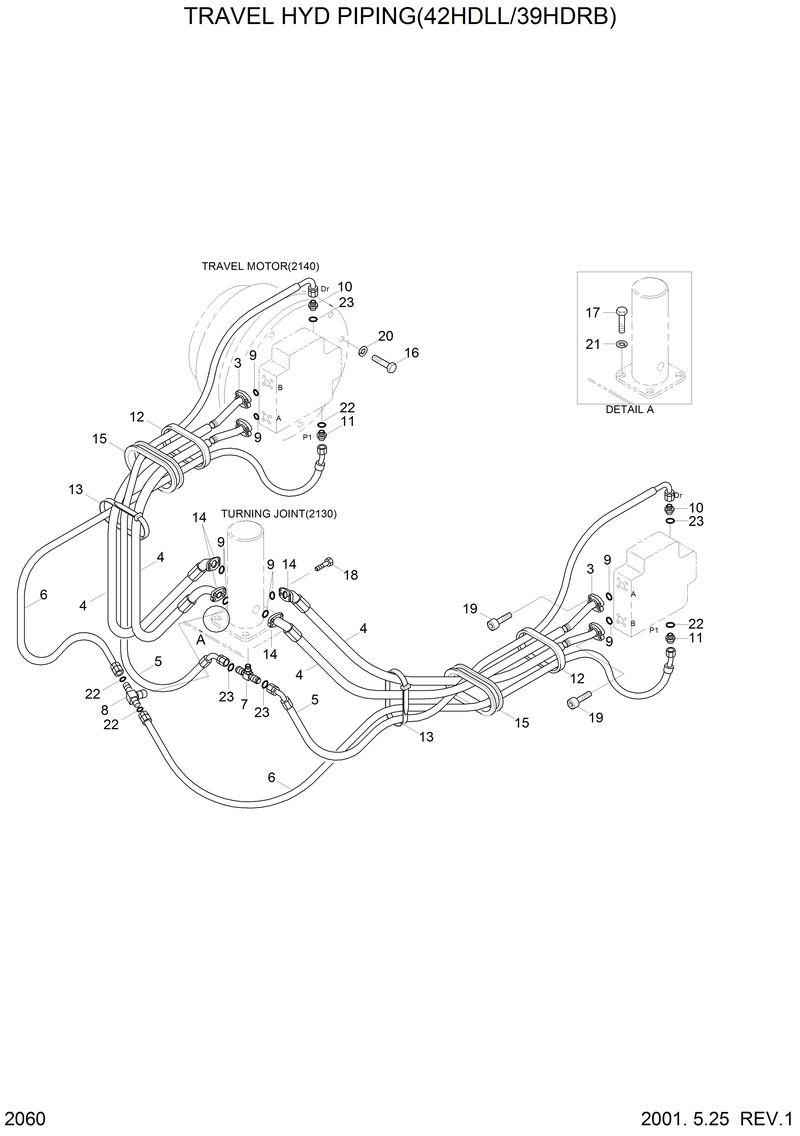

Запчасти Hyundai 42HDLL TRAVEL HYD PIPING(42HDLL/39HDRB)

*

@

@-Change Of Illust

10

P010-110004

P010-110004-Connector

11

P010-110009

P010-110009-Connector-Long

12

S760-151224

S760-151224-Grommet

13

S760-142200

S760-142200-Grommet

14

P173-160104

P173-160104-Flange-Split

15

S551-050203

S551-050203-Clamp-Band

16

S017-200752

S017-200752-Bolt-Hex

17

S017-160352

S017-160352-Bolt-Hex

18

S109-100306

S109-100306-Bolt-Socket

19

S109-120356

S109-120356-Bolt-Socket

20

S411-200002

S411-200002-Washer-Spring

21

S411-160002

S411-160002-Washer-Spring

22

S631-011001

S631-011001-O-Ring

23

S631-018001

S631-018001-O-Ring

3

32E9-00800

32E9-00800-Flange Wa

4

P660-167354

P660-167354-Hose Assy

5

P620-082063

P620-082063-Hose Assy-Thd 0x90

6

P610-042070

P610-042070-Hose Assy-Thd 0x45

7

P310-080808

P310-080808-Tee

8

P310-040404

P310-040404-Tee

9

Y171-024001

Y171-024001-O-Ring
