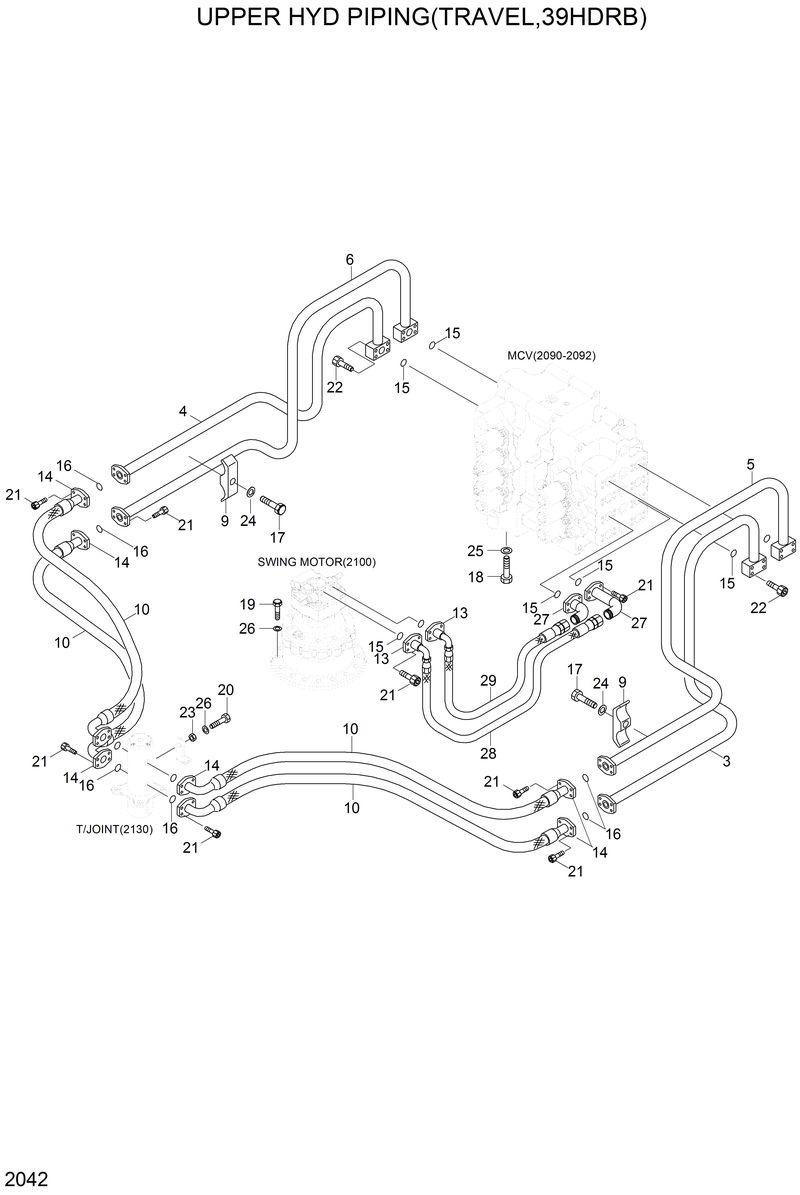

Запчасти Hyundai 42HDLL UPPER HYD PIPING(TRAVEL,39HDRB)

10

31E5-2006

31E5-2006-Hose Assy

13

P173-120102

P173-120102-Flange-Split

14

P173-160104

P173-160104-Flange-Split

15

CO0418A

CO0418A-O-Ring

16

CO0423A

CO0423A-O-Ring

17

S017-100652

S017-100652-Bolt-Hex

18

S017-160402

S017-160402-Bolt-Hex

19

S017-200852

S017-200852-Bolt-Hex

20

S017-200902

S017-200902-Bolt-Hex

21

S107-100304

S107-100304-Bolt-Socket

22

S107-100554

S107-100554-Bolt-Socket

23

S205-201002

S205-201002-Nut-Hex

24

S411-100002

S411-100002-Washer-Spring

25

S411-160002

S411-160002-Washer-Spring

26

S411-200002

S411-200002-Washer-Spring

27

E131-0067

E131-0067-Pipe Assy

28

P663-127318

P663-127318-Hose Assy-Thd

29

P663-127315

P663-127315-Hose Assy-Thd

3

31E9-0020

31E9-0020-Pipe Assy

4

31E9-0021

31E9-0021-Pipe Assy

5

31E9-0022

31E9-0022-Pipe Assy

6

31E9-0023

31E9-0023-Pipe Assy

9

31E4-3028

31E4-3028-Clamp-Pipe
