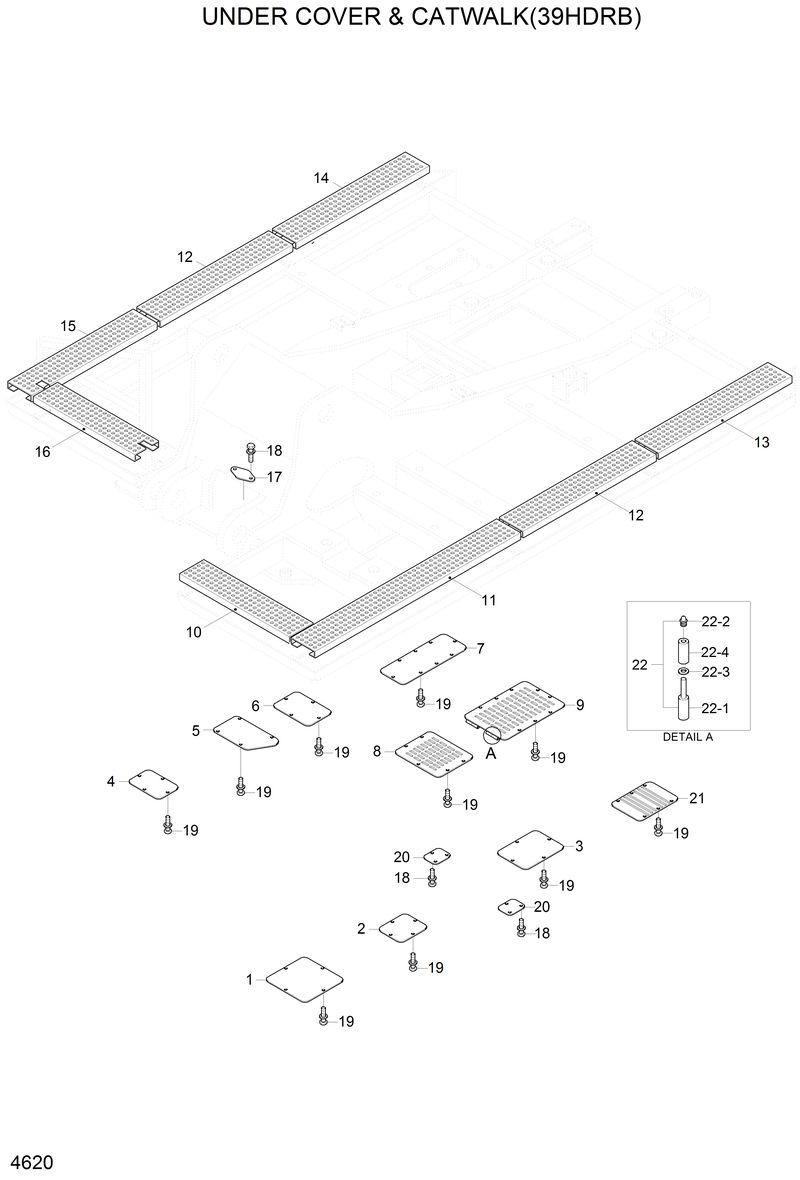

Запчасти Hyundai 42HDLL UNDER COVER & CATWALK(39HDRB)

10

41FD-10110

41FD-10110-Catwalk-A

10

41FD-10110

41FD-10110-Catwalk-A

11

41FD-10220

41FD-10220-Catwalk-B

12

41FD-10230

41FD-10230-Catwalk-C

13

41FD-10240

41FD-10240-Catwalk-D

14

41FD-10250

41FD-10250-Catwalk-E

15

41FD-10260

41FD-10260-Catwalk-F

16

41FD-10270

41FD-10270-Catwalk-G

17

41EC-13080

41EC-13080-Cover

18

S037-102552

S037-102552-Bolt-W/Washer

19

S037-123052

S037-123052-Bolt-W/Washer

2

41FD-10120

41FD-10120-Under Cover-B

20

41FD-10280

41FD-10280-Cover

21

41FD-10290

41FD-10290-Under Cover-J

22

P90-0064

P90-0064-Hinge Assy

22-1

71FD-51200

71FD-51200-. Hinge-A

22-2

71FD-51130

71FD-51130-. Hinge-B

22-3

71FD-03340

71FD-03340-. Washer

22-4

71FD-03350

71FD-03350-. Nipple-Grease

3

41FD-10130

41FD-10130-Under Cover-C

4

41FD-10140

41FD-10140-Under Cover-D

5

42W3-10150

42W3-10150-Under Cover-E

6

41FD-10160

41FD-10160-Under Cover-F

7

41FD-10170

41FD-10170-Under Cover-G

8

41FD-10180

41FD-10180-Under Cover-H

9

41FD-10191

41FD-10191-Under Cover-I
