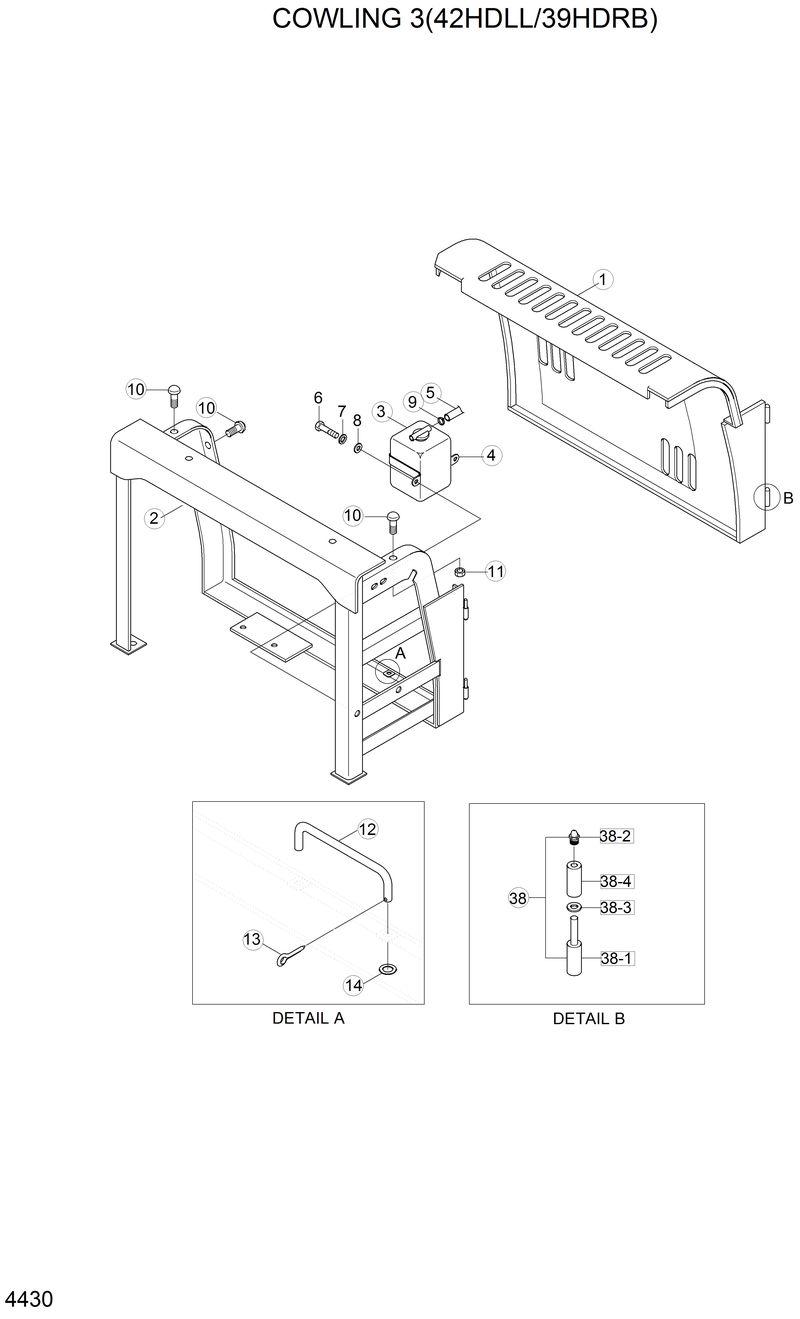

Запчасти Hyundai 42HDLL COWLING 3(42HDLL/39HDRB)

*

71FD-51023

71FD-51023-Side Cowl Assy-Rh

1

71FD-51050

71FD-51050-. Side Cover Wa-Rh

10

71EH-13150

71EH-13150-. Bumper-Rubber

11

S205-101002

S205-101002-. Nut-Hex

12

E171-2014

E171-2014-. Stay

13

S461-320202

S461-320202-. Pin-Split

14

S403-100002

S403-100002-. Washer-Plain

2

71FD-51061

71FD-51061-. Support Wa-Rh

3

11EN-42330

11EN-42330-. Tank-Reservoir

38

P90-0176

P90-0176-Hinge Assy

38-1

71FD-03300

71FD-03300-. Hinge Wa-A

38-2

71FD-03310

71FD-03310-. Hinge Wa-B

38-3

71FD-03360

71FD-03360-. Washer

38-4

71FD-03350

71FD-03350-. Nipple-Grease

4

11EN-42300

11EN-42300-. Clamp-Plate

5

E111-4013

E111-4013-. Hose

6

S015-080202

S015-080202-. Bolt-Hex

7

S411-080002

S411-080002-. Washer-Spring

8

S403-080002

S403-080002-. Washer-Plain

9

S520-015000

S520-015000-. Clamp
