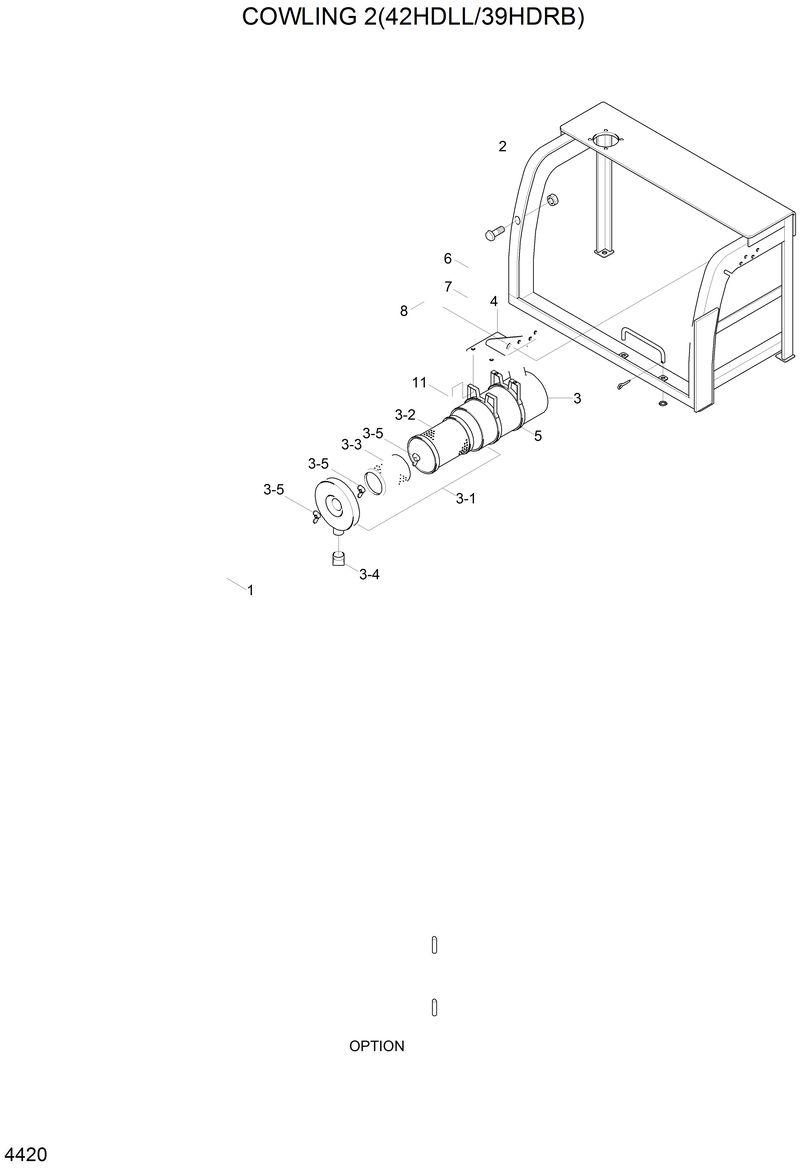

Запчасти Hyundai 42HDLL COWLING 2(42HDLL/39HDRB)

71FD-52011

71FD-52011-Side Cowl Assy-Lh

71FD-52030

71FD-52030-. Side Cover Wa-Lh

*

71FD-51013

71FD-51013-Side Cowl Assy-Lh

1

71FD-51031

71FD-51031-. Side Cover Wa-Lh

11

S205-081002

S205-081002-. Nut-Hex

13

71EH-13150

71EH-13150-. Bumper-Rubber

14

S205-101002

S205-101002-. Nut-Hex

15

E171-2014

E171-2014-. Stay

16

S461-320202

S461-320202-. Pin-Split

2

71FD-51042

71FD-51042-. Support Wa-Lh

3

E211-2101

E211-2101-. Air Cleaner Assy

3-1

E211-2102

E211-2102-.. Body Assy

3-2

E211-2103

E211-2103-.. Element-Outer

3-3

E211-2104

E211-2104-.. Element-Inner

3-4

E211-2105

E211-2105-.. Valve-Vacuum

3-5

11E6-21281

11E6-21281-.. Nut-Wing

38

P90-0176

P90-0176-Hinge Assy

38-1

71FD-03300

71FD-03300-. Hinge Wa-A

38-2

71FD-03310

71FD-03310-. Hinge Wa-B

38-3

71FD-03360

71FD-03360-. Washer

38-4

71FD-03350

71FD-03350-. Nipple-Grease

4

11E9-22050

11E9-22050-. Bracket-Air Cleaner

5

E110-2002

E110-2002-. Clamp-Band

6

S015-080202

S015-080202-. Bolt-Hex

7

S411-080002

S411-080002-. Washer-Spring

8

S037-102052

S037-102052-. Bolt-W/Washer

9

S441-100002

S441-100002-. Washer-Hardened
