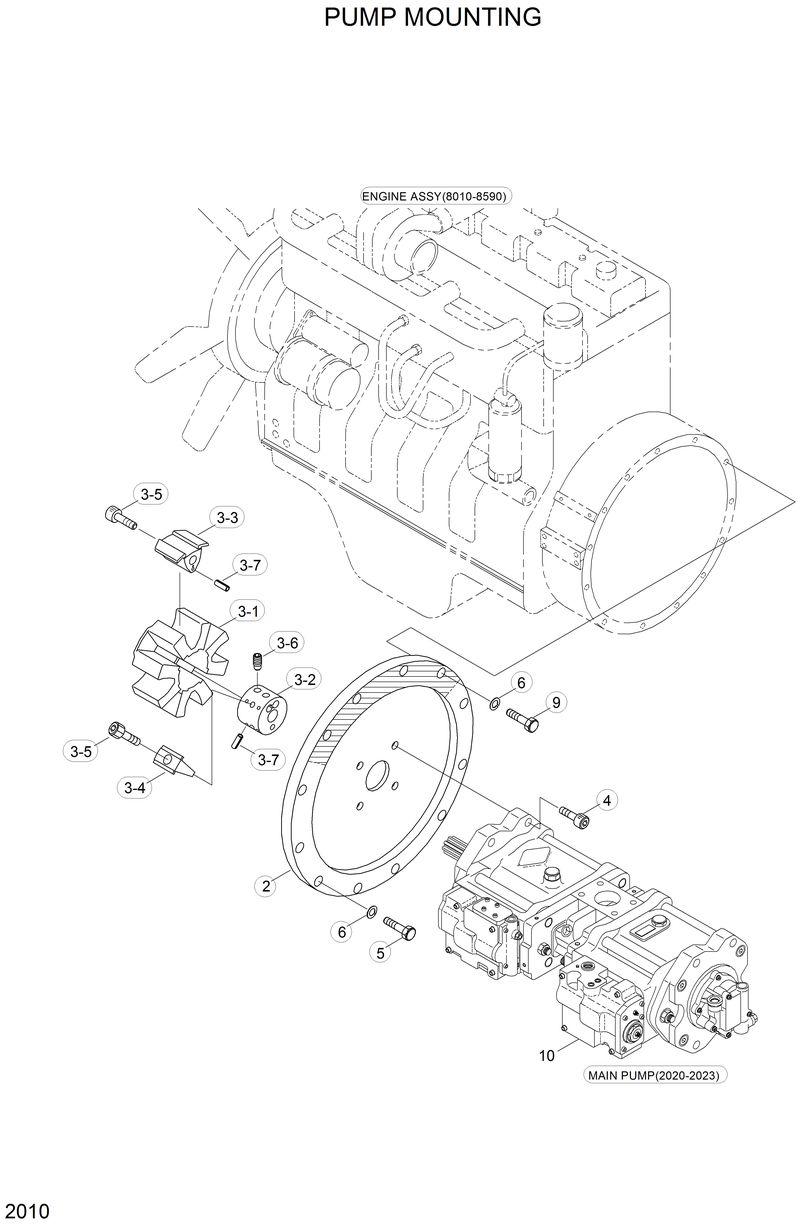

Запчасти Hyundai 33HDLL PUMP MOUNTING

10

31EM-10100 IS DescriptionMain Pump Qty1 Serial_No

31EM-10100 IS DescriptionMain Pump Qty1 Serial_No Itc RmkLOW EM-Main Pump

2

11EM-12010

11EM-12010-Housing

3

11EM-12020

11EM-12020-Coupling Assy

3-1

11E1-1507

11E1-1507-. Element

3-2

11E1-1508

11E1-1508-. Hub

3-3

11E1-1509

11E1-1509-. Insert-A

3-4

11E1-1510

11E1-1510-. Insert-R

3-5

S107-160602

S107-160602-. Bolt-Socket

3-6

11E1-1511

11E1-1511-. Bolt-Clamp

3-7

S472-500102

S472-500102-. Pin-Spring

4

S107-200504

S107-200504-Bolt-Socket

5

S017-100352

S017-100352-Bolt-Hex

6

S411-100002

S411-100002-Washer-Spring

9

S017-100402

S017-100402-Bolt-Hex
