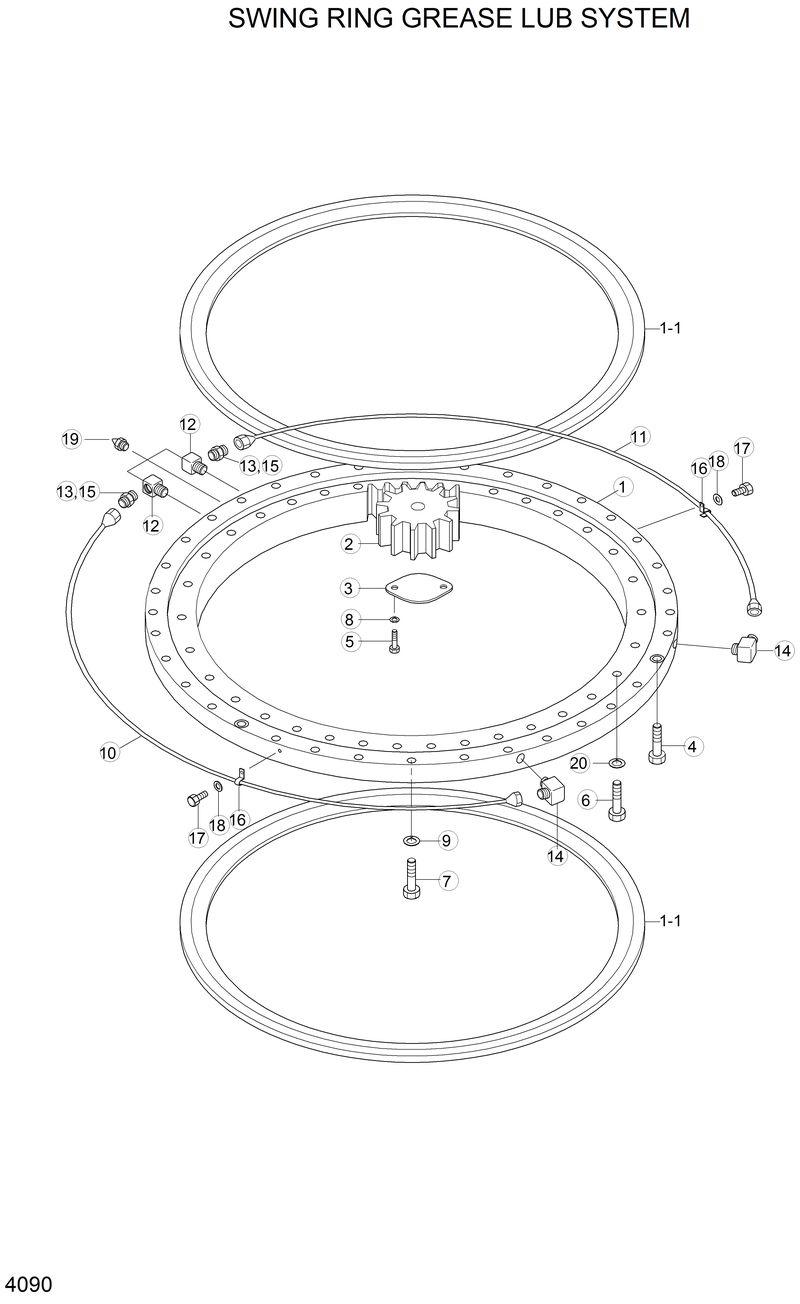

Запчасти Hyundai 33HDLL SWING RING GREASE LUB SYSTEM

1

81EN-00051

81EN-00051-Swing Bearing

1-1

82E4-10040

82E4-10040-. Seal-Swing Bearing

10

81EN-00030

81EN-00030-Pipe-Comp/Lh

11

81EN-00040

81EN-00040-Pipe-Comp/Rh

12

31EH-00610

31EH-00610-Fitting

13

E131-0626

E131-0626-Connector

14

E231-0349

E231-0349-Elbow-90

15

P391-040000

P391-040000-Washer-Copper

16

81EM-00650

81EM-00650-Clamp

17

S017-100162

S017-100162-Bolt-Hex

18

S411-100002

S411-100002-Washer-Spring

19

S651-810002

S651-810002-Nipple-Grease

2

81EN-00011

81EN-00011-Pinion

20

S441-240002

S441-240002-Washer-Hardened

3

81EN-00020

81EN-00020-Plate-Washer

4

81EN-00060

81EN-00060-Bolt-Reamer

5

S017-160352

S017-160352-Bolt-Hex

6

S017-240702

S017-240702-Bolt-Hex

7

S017-221202

S017-221202-Bolt-Hex

8

S411-160002

S411-160002-Washer-Spring
