Запчасти Hyundai 33HDLL FUEL FILLER PUMP

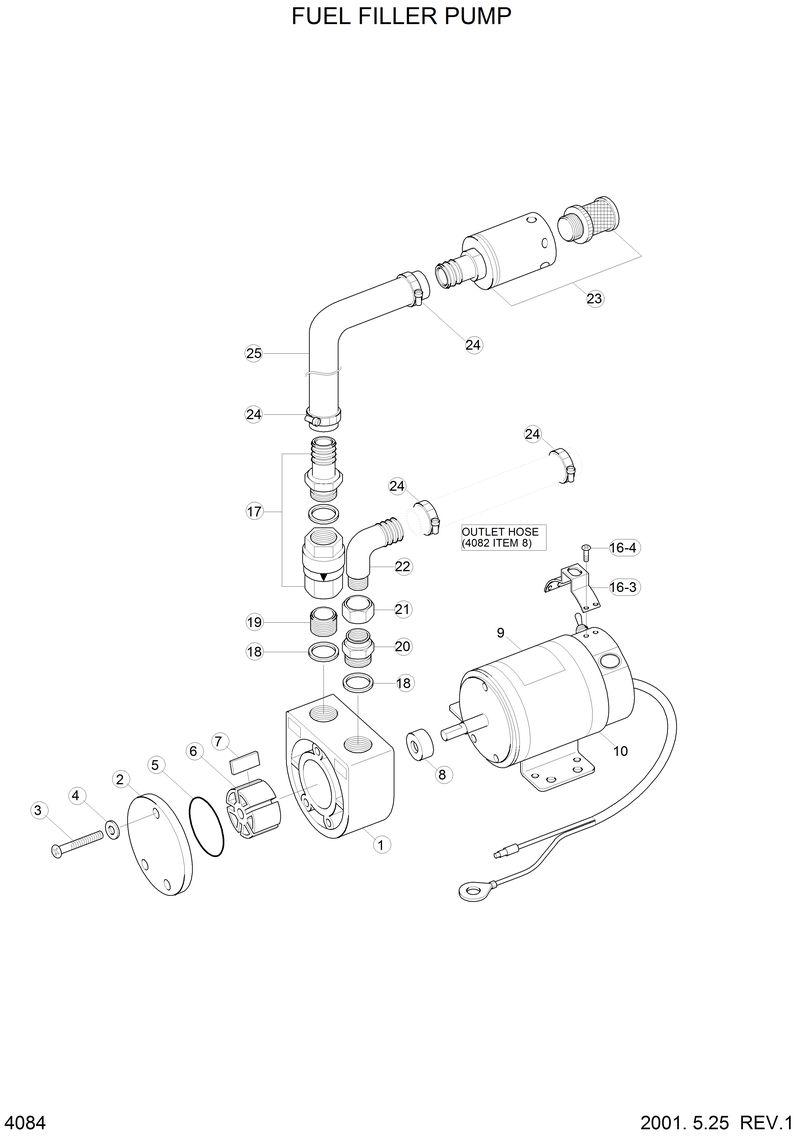

Схема запчастей Hyundai 33HDLL - FUEL FILLER PUMP

Артикул

Название

Примечание

Количество

*

21EM-45030

21EM-45030-Fuel Filler Pump Assy

16

21EM-45100

21EM-45100-. Box-Switch

16-3

21EM-45300

21EM-45300-.. Cover-Switch

16-4

S161-050166

S161-050166-.. Screw

17

21EM-45400

21EM-45400-. Check Valve Assy

18

21EM-45500

21EM-45500-. Washer

19

21EM-45600

21EM-45600-. Fitting

20

21EM-45700

21EM-45700-. Fitting

21

21EM-45800

21EM-45800-. Nut-Elbow

22

21EM-45900

21EM-45900-. Elbow

23

21EM-46000

21EM-46000-. Strainer Assy

24

27176003

27176003-. Clamp-Hose

25

21EM-46100

21EM-46100-. Hose-Inlet

9

21EM-45090

21EM-45090-. Decal

K

21EM-46200

21EM-46200-Service Kit(5,6,7,8)

K5

21EM-45050

21EM-45050-. O-Ring

K6

21EM-45060

21EM-45060-. Rotor

K7

21EM-45070

21EM-45070-. Vane

K8

21EM-45080

21EM-45080-. Seal-Oil

N

@

@-Not Individually Supplied

N1

@

@-. Body

N10

@

@-. Housing-Motor

N2

@

@-. Cover

N3

@

@-. Screw

N4

@

@-. Washer-Spring

Выбрано товаров: 25
