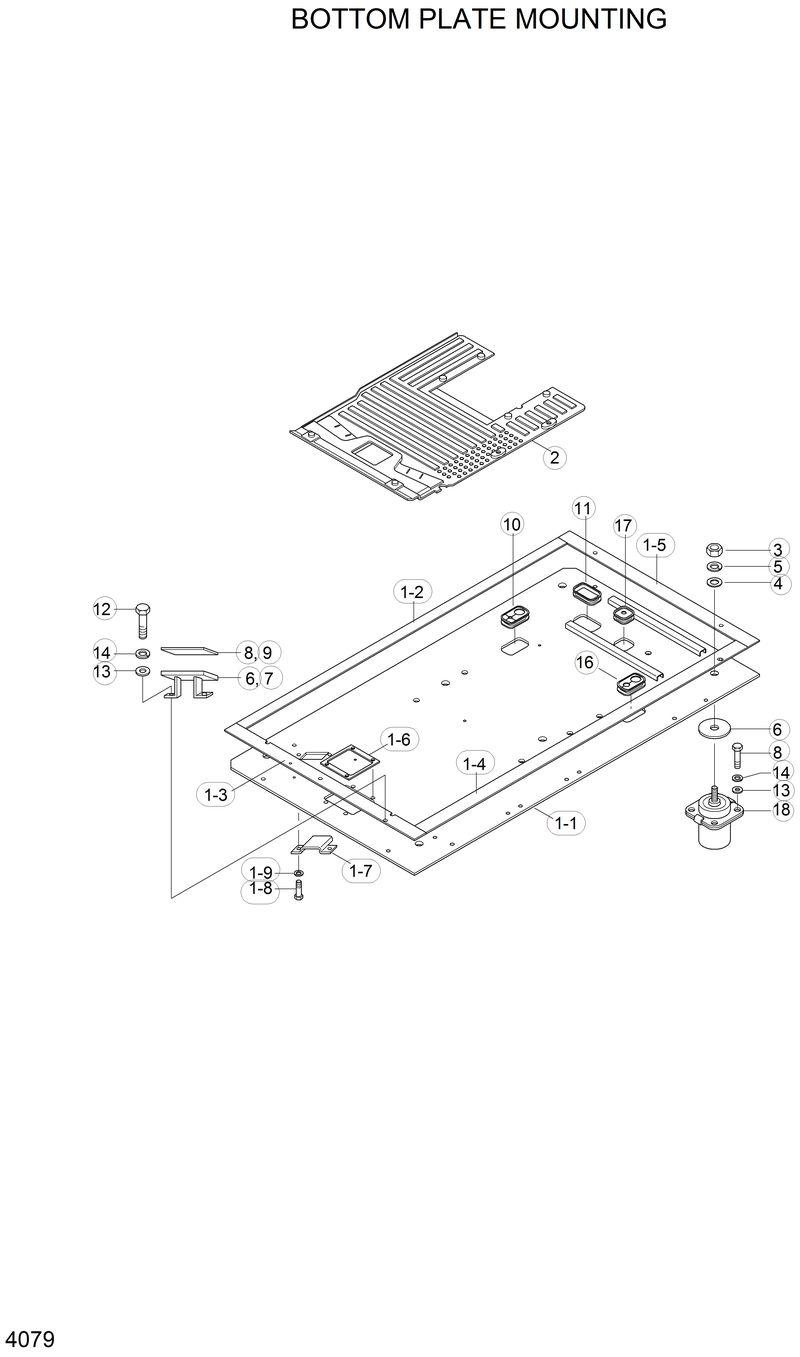

Запчасти Hyundai 33HDLL BOTTOM PLATE MOUNTING

1

71E9-10801

71E9-10801-Bottom Plate Assy

1-1

71E9-10811

71E9-10811-. Bottom Plate Wa

1-2

71EN-10170

71EN-10170-. Pad-Rubber

1-3

72E6-10700

72E6-10700-. Pad-Rubber

1-4

71EN-10180

71EN-10180-. Pad-Rubber

1-5

72E6-10720

72E6-10720-. Pad-Rubber

1-6

72E6-10730

72E6-10730-. Pad-Rubber

1-7

71E9-10660

71E9-10660-. Cover

1-8

S017-100162

S017-100162-. Bolt-Hex

1-9

S411-100002

S411-100002-. Washer-Spring

10

71E9-10610

71E9-10610-Grommet

11

71E9-10640

71E9-10640-Grommet

12

S017-100206

S017-100206-Bolt-Hex

13

S403-103006

S403-103006-Washer-Plain

14

S411-100006

S411-100006-Washer-Spring

16

71E9-10620

71E9-10620-Grommet

17

71E9-10630

71E9-10630-Grommet

18

71EM-10161

71EM-10161-Mount-Viscous

19

S017-100306

S017-100306-Bolt-Hex

2

71EM-10950

71EM-10950-Cover-Mat Floor

20

71E9-10650

71E9-10650-Washer-Rebound

3

S207-161006

S207-161006-Nut-Hex

4

S403-162006

S403-162006-Washer-Plain

5

S411-160006

S411-160006-Washer-Spring

6

E111-5001

E111-5001-Foot Rest-Rh

7

E111-5002

E111-5002-Foot Rest-Lh

8

E111-5007

E111-5007-Rubber-Foot Rest,Rh

9

E111-5008

E111-5008-Rubber-Foot Rest,Lh
