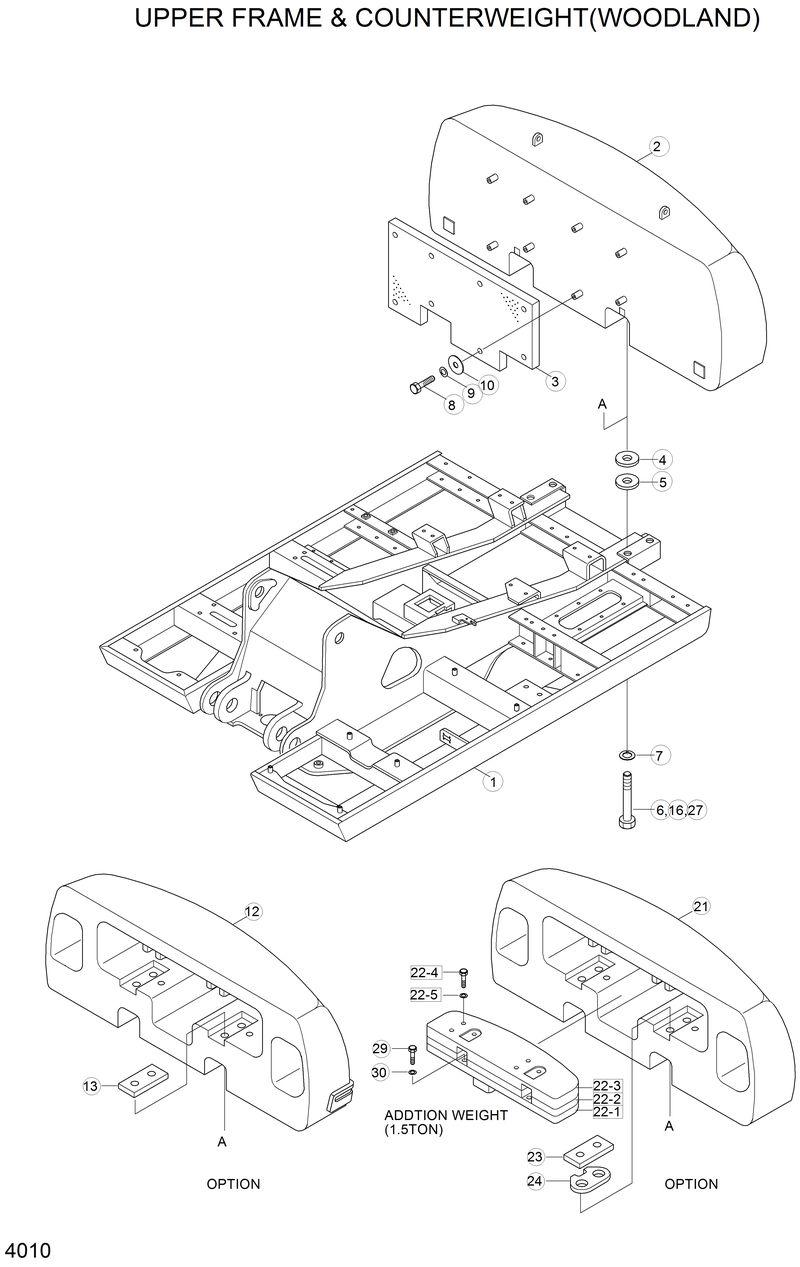

Запчасти Hyundai 33HDLL UPPER FRAME & COUNTERWEIGHT(WOODLAND)

41EM-00500

41EM-00500-Upper Frame Wa

1

41EM-00017

41EM-00017-Upper Frame Wa

10

61L1-2037

61L1-2037-Washer-Hardened

12

41EM-14002

41EM-14002-Counterweight

13

41EM-14040

41EM-14040-Block

16

S017-302702

S017-302702-Bolt-Hex

2

41EM-34000

41EM-34000-Counterweight

21

41EM-14001

41EM-14001-Counterweight

22

41EM-24010

41EM-24010-Weight-Addition

22-1

41EM-24020

41EM-24020-. Plate Wa

22-2

41EM-24030

41EM-24030-. Plate

22-3

41EM-24040

41EM-24040-. Plate Wa

22-4

S017-272702

S017-272702-. Bolt-Hex

22-5

S441-270002

S441-270002-. Washer-Hardened

23

41E1-3401

41E1-3401-Block

24

41EM-14070

41EM-14070-Lock Plate

27

S018-362502

S018-362502-Bolt-Hex

29

S017-301352

S017-301352-Bolt-Hex

3

41EM-34220

41EM-34220-Sponge

30

S441-300002

S441-300002-Washer-Hardened

30

S441-300002

S441-300002-Washer-Hardened

4

E141-5016

E141-5016-Shim

5

E141-5017

E141-5017-Shim

6

S018-362302

S018-362302-Bolt-Hex

8

S017-100252

S017-100252-Bolt-Hex

9

S411-100002

S411-100002-Washer-Spring
