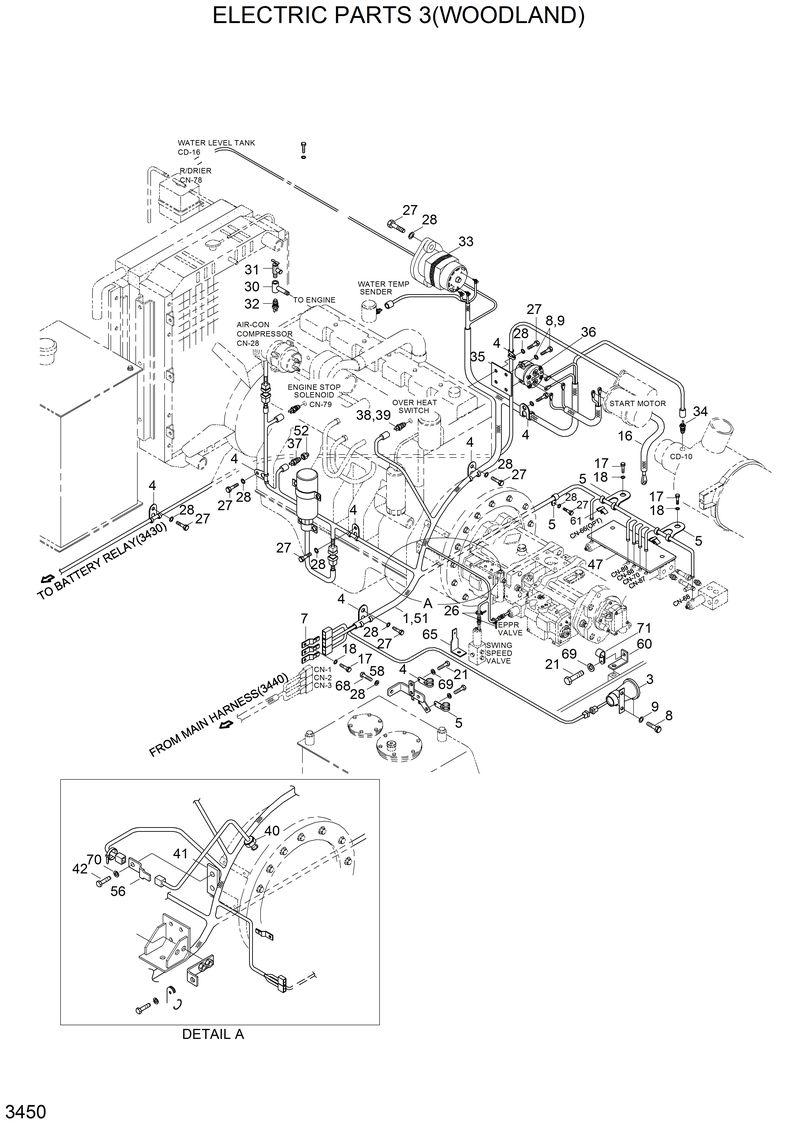

Запчасти Hyundai 33HDLL ELECTRIC PARTS 3(WOODLAND)

21EM-30581

21EM-30581-Hose-Rubber

1

21EM-10312

21EM-10312-Harness-Engine

16

21EH-30720

21EH-30720-Strap-Earth

17

S017-100162

S017-100162-Bolt-Hex

18

S411-100002

S411-100002-Washer-Spring

21

S017-080162

S017-080162-Bolt-Hex

26

S552-050203

S552-050203-Clamp-Band

27

S017-120162

S017-120162-Bolt-Hex

28

S411-120002

S411-120002-Washer-Spring

29

21E7-0612

21E7-0612-Plate-Connector

3

21E4-2003

21E4-2003-Buzzer-Travel Alarm

30

21E1-49910

21E1-49910-Adapter

31

14L1-01370

14L1-01370-Valve-Heater

32

E123-4012

E123-4012-Sender-Temp

33

21E6-40030

21E6-40030-Alternator Assy

34

E128-0059

E128-0059-Switch-Air Cleaner

35

21E1-49900

21E1-49900-Bracket-Start Relay

36

E225-0004

E225-0004-Relay-Start

37

21E3-5001

21E3-5001-Switch-Eng Oil Press

38

21L3-00501

21L3-00501-Adapter

39

21E3-5002

21E3-5002-Switch-Water Temp

4

21E9-00170

21E9-00170-Clip-Harness

40

21E3-0042

21E3-0042-Sensor-Speed

41

21EL-30150

21EL-30150-Bracket-Speed Sensor

42

S015-050162

S015-050162-Bolt-Hex

43

21EM-30580

21EM-30580-Hose-Rubber

44

21EM-30570

21EM-30570-Connector-Tube

45

21EM-00160

21EM-00160-Washer Tank Assy

45-1

21EL-00170

21EL-00170-. Motor Pump Assy

45-2

21EL-00180

21EL-00180-. Tank

45-3

21EL-00190

21EL-00190-. Cap

45-4

21EL-00200

21EL-00200-. Push-Rubber

45-5

21EM-10730

21EM-10730-. Bracket

45-6

S814-102000

S814-102000-. Plug-2p

46

21EM-30630

21EM-30630-Clamp-Quick

47

21EM-40130

21EM-40130-Bracket-Connector

5

S593-000902

S593-000902-Clip-Harness

51

21EM-10320 IS DescriptionHarness-Engine Qty1 Seria

21EM-10320 IS DescriptionHarness-Engine Qty1 Serial_No Itc RmkLOW EM-Harness-Engine

52

21EN-00511

21EN-00511-Adapter-Oil Pressure

52-1

21EN-00520

21EN-00520-. O-Ring

54

21E1-21120

21E1-21120-Wire Link-Alternator

56

21E9-06080

21E9-06080-Plate

57

21E9-06110

21E9-06110-Plate

58

21E9-06120

21E9-06120-Plate

59

21E9-06130

21E9-06130-Plate

60

21E9-06240

21E9-06240-Plate

61

21E9-06160

21E9-06160-Clip

65

21EM-10850

21EM-10850-Plate

66

S552-035146

S552-035146-Clamp-Band

68

S017-120252

S017-120252-Bolt-Hex

69

S403-082002

S403-082002-Washer-Plain

7

21E7-0606

21E7-0606-Plate-Connector

70

S403-062002

S403-062002-Washer-Plain

71

31E7-0316

31E7-0316-Clamp

8

S015-060202

S015-060202-Bolt-Hex

9

S411-060002

S411-060002-Washer-Spring
