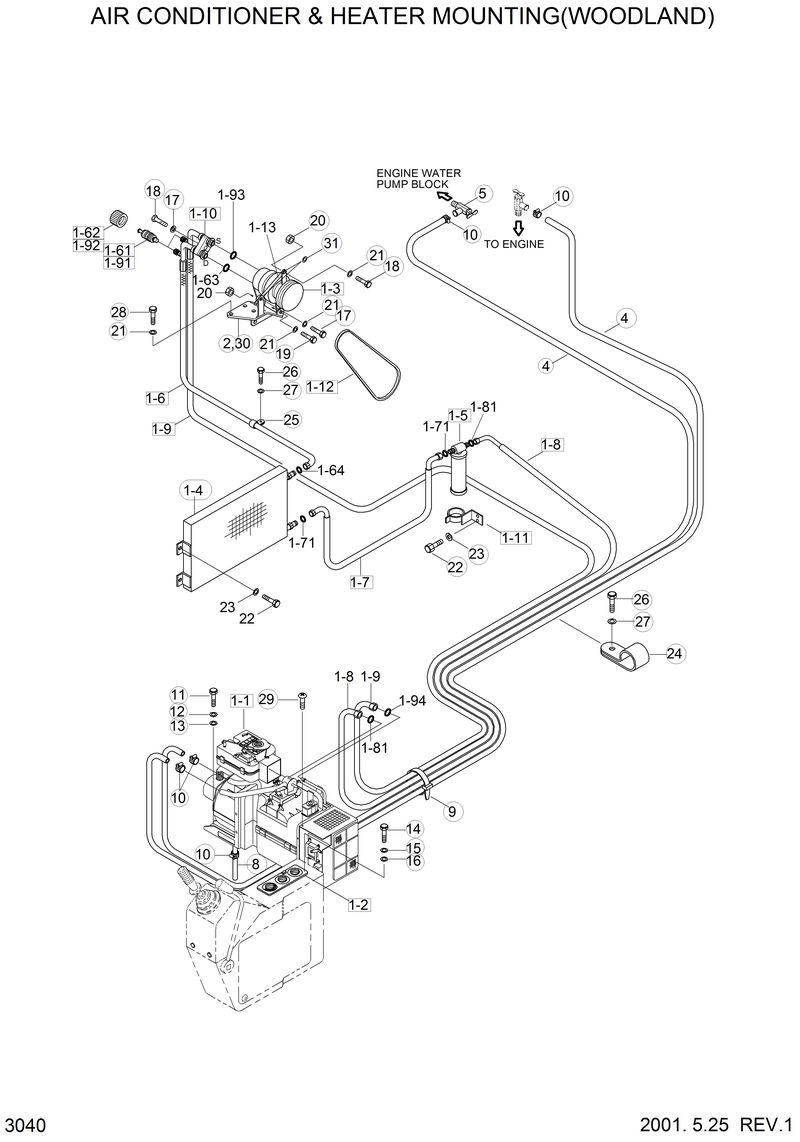

Запчасти Hyundai 33HDLL AIR CONDITIONER & HEATER MTG(WOODLAND)

1

11EM-92510

11EM-92510-Air Con & Heater Assy

1-1

11EM-90020

11EM-90020-. Heater & Evap Unit

1-10

12E3-3509

12E3-3509-. Plate-Comp Joint

1-11

11E6-36100

11E6-36100-. Bracket-Receiver Drier

1-12

12E2-3505

12E2-3505-. V-Belt

1-13

14L1-01330

14L1-01330-. Piece-Tension

1-2

11EM-90030

11EM-90030-. Control Assy

1-3

11EM-90040

11EM-90040-. Compressor Assy

1-4

11EM-90050

11EM-90050-. Condenser Assy

1-5

11E6-36050

11E6-36050-. R/Drier Assy

1-6

11EK-90030

11EK-90030-. Hose-Discharge

1-62

A3043-008-01-4

A3043-008-01-4-.. Cap-L

1-64

A3050-002-05-2

A3050-002-05-2-.. O-Ring

1-7

11EM-90060

11EM-90060-. Hose-Liquid(A)

1-8

11EM-90150

11EM-90150-. Hose-Liquid(B)

1-81

A3050-002-09-2

A3050-002-09-2-.. O-Ring

1-81

A3050-002-09-2

A3050-002-09-2-.. O-Ring

1-9

11E9-90080

11E9-90080-. Hose-Suction

1-91

A3041-005-01-4

A3041-005-01-4-.. Valve-Core

1-91

A3041-005-01-4

A3041-005-01-4-.. Valve-Core

1-92

A3043-007-01-4

A3043-007-01-4-.. Cap-H

1-93

A5000-587-99-1

A5000-587-99-1-.. O-Ring

1-93

A5000-587-99-1

A5000-587-99-1-.. O-Ring

1-94

A3050-002-03-2

A3050-002-03-2-.. O-Ring

10

S520-015000

S520-015000-Clamp-Hose

11

S017-120302

S017-120302-Bolt-Hex

12

S411-120002

S411-120002-Washer-Spring

13

S403-122002

S403-122002-Washer-Plain

14

S015-050162

S015-050162-Bolt-Hex

15

S411-050002

S411-050002-Washer-Spring

16

S401-051002

S401-051002-Washer-Plain

17

S017-100252

S017-100252-Bolt-Hex

18

S017-100502

S017-100502-Bolt-Hex

19

S017-100402

S017-100402-Bolt-Hex

2

12E1-3510

12E1-3510-Bracket-Comp Mount

20

S205-101002

S205-101002-Nut-Hex

21

S411-100002

S411-100002-Washer-Spring

22

S015-080162

S015-080162-Bolt-Hex

23

S411-080002

S411-080002-Washer-Spring

24

S542-220002

S542-220002-Clamp

25

S541-180002

S541-180002-Clamp

26

S015-060162

S015-060162-Bolt-Hex

27

S411-060002

S411-060002-Washer-Spring

28

S017-100302

S017-100302-Bolt-Hex

29

S152-040122

S152-040122-Screw-Tapping

30

11EM-93012

11EM-93012-Bracket-Comp Mount

31

11EM-02030

11EM-02030-Spacer

4

11EH-92050

11EH-92050-Hose-Suction

5

14L1-01350

14L1-01350-Valve-Heater

8

11EK-92060

11EK-92060-Hose-Drain

9

S551-035146

S551-035146-Tie-Wire
