Запчасти Hyundai 33HDLL CAB ELECTRIC 1

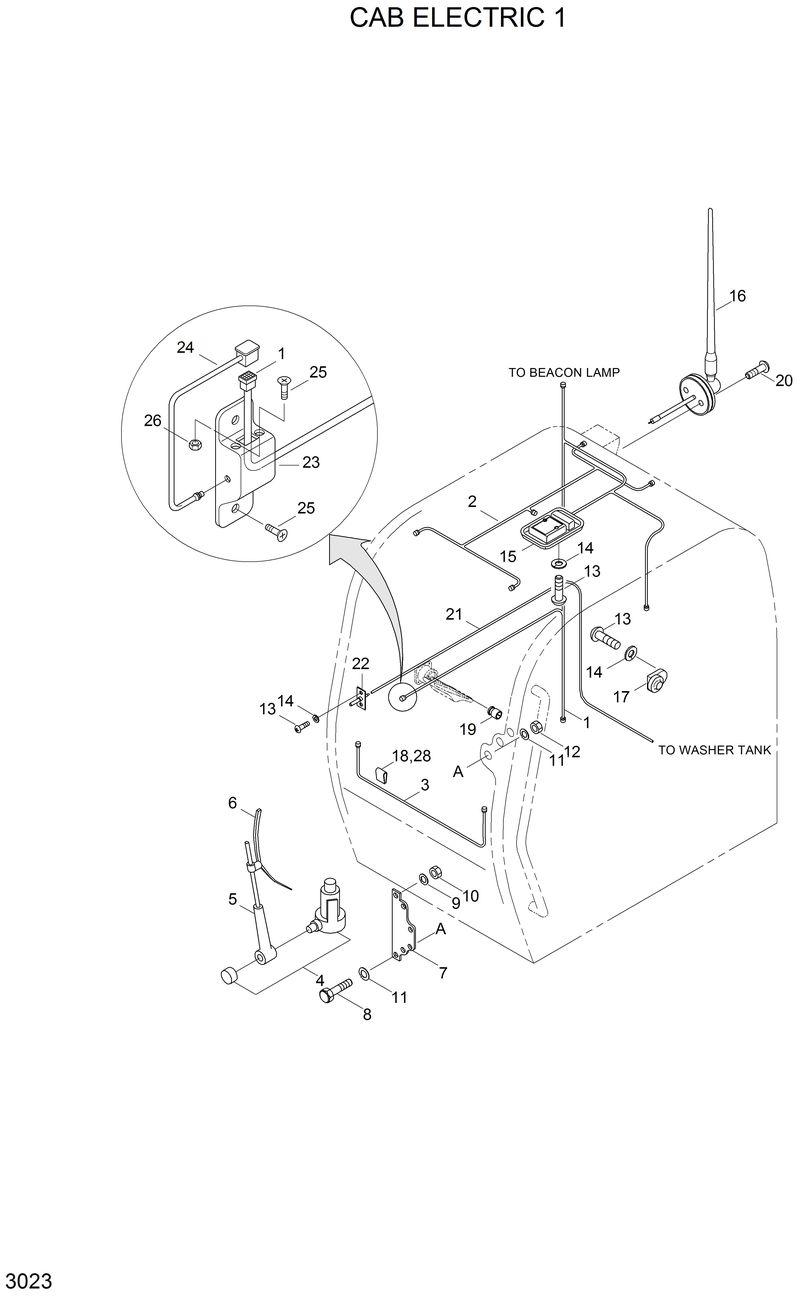

Схема запчастей Hyundai 33HDLL - CAB ELECTRIC 1

Артикул

Название

Примечание

Количество

*

@

@-Cab Elec Assy

1

21EK-50010

21EK-50010-. Harness(1)-Cab

10

S205-081006

S205-081006-. Nut-Hex

11

S411-060006

S411-060006-. Washer-Spring

12

S201-061006

S201-061006-. Nut-Hex

13

S161-050166

S161-050166-. Screw

14

S411-050006

S411-050006-. Washer-Spring

15

21EH-0011

21EH-0011-. Lamp-Room

16

21EM-30660

21EM-30660-. Antenna

17

E123-3022

E123-3022-. Switch-Door

18

E127-3133

E127-3133-. Holder-Cable Tie

19

21E6-20290

21E6-20290-. Grommet-Rubber

2

21E1-4998

21E1-4998-. Harness-Cab

20

S152-040166

S152-040166-. Screw-Tapping

21

21EM-10890

21EM-10890-. Hose-Washer Tank

22

24L3-41090

24L3-41090-. Nozzle

23

21EM-10870

21EM-10870-. Plate

24

21EM-10880

21EM-10880-. Cap

25

S141-040166

S141-040166-. Screw-C/R,Flat Hd

26

S201-041006

S201-041006-. Nut-Hex

28

S552-020102

S552-020102-. Clamp-Band

3

21EH-1004

21EH-1004-. Harness-Wiper Motor

4

21E7-3002

21E7-3002-. Wiper Motor Assy

5

21EC-30050

21EC-30050-. Arm-Wiper

6

21EC-30070

21EC-30070-. Blade-Wiper

7

21EH-00130

21EH-00130-. Bracket-Wiper Motor

8

S015-060166

S015-060166-. Bolt-Hex

9

S411-080006

S411-080006-. Washer-Spring

Выбрано товаров: 28
