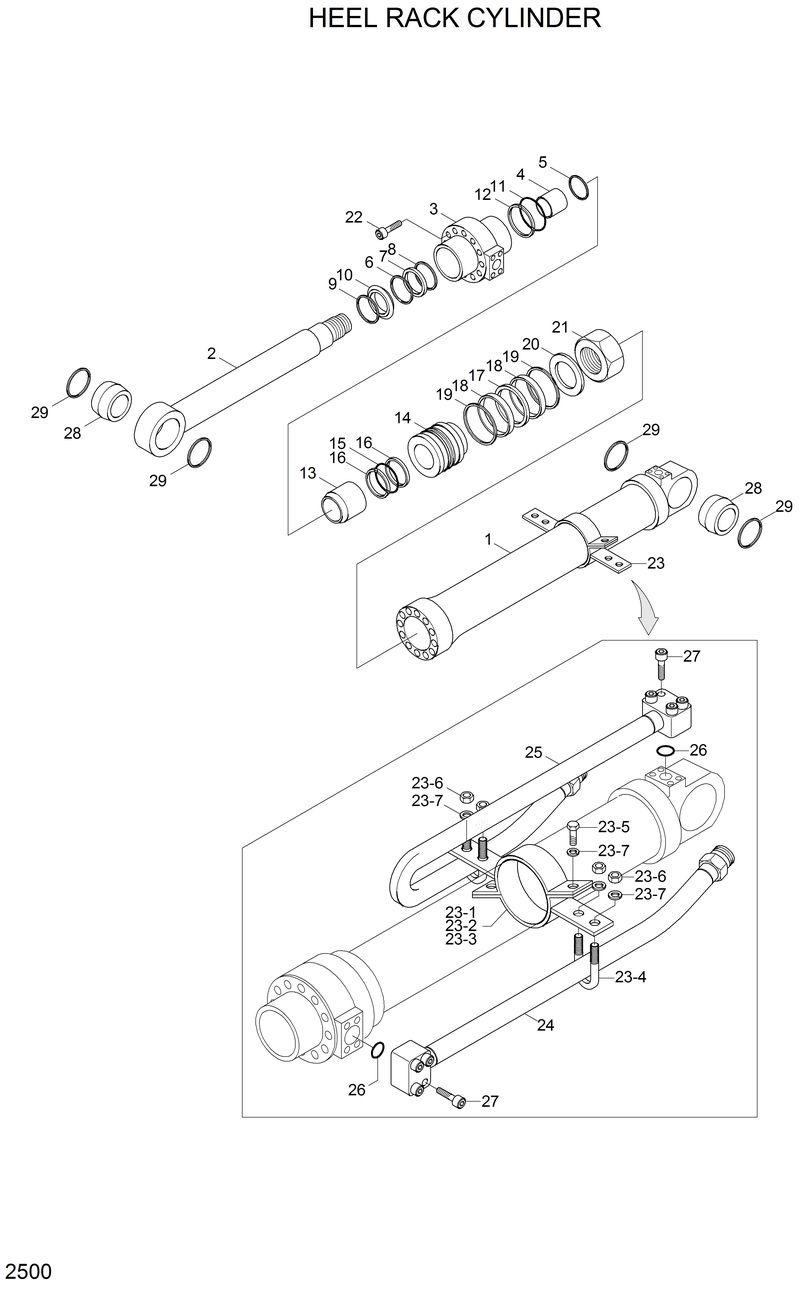

Запчасти Hyundai 33HDLL HEEL RACK CYLINDER

*

31W2-60010

31W2-60010-Heel Rack Cylinder

*-1

31Y1-17210

31Y1-17210-. Heelrack Cyl Sub Assy

1

31Y1-17220

31Y1-17220-.. Tube Assy

10

Y190-099000

Y190-099000-.. Ring-Snap

13

31YC-23020

31YC-23020-.. Ring-Cushion

14

31Y1-15810

31Y1-15810-.. Piston

2

31Y1-17260

31Y1-17260-.. Rod Assy

20

31YC-66040

31YC-66040-.. Washer-Lock

21

31YC-61242

31YC-61242-.. Nut-Lock

22

S109-160804

S109-160804-.. Bolt-Socket

23

31Y1-17300

31Y1-17300-.. Band Assy

23-1

31Y1-17310

31Y1-17310-... Band Sub Assy

23-2

31YC-32220

31YC-32220-... Band

23-3

31Y1-17460

31Y1-17460-... Band Sub Assy

23-4

S071-022730

S071-022730-... U-Bolt

23-5

S011-100352

S011-100352-... Bolt-Hex

23-6

S201-101002

S201-101002-... Nut-Hex

23-7

S411-100002

S411-100002-... Washer-Spring

24

31Y1-17320

31Y1-17320-.. Pipe Assy-R

25

31Y1-17330

31Y1-17330-.. Pipe Assy-B

27

S107-100454

S107-100454-.. Bolt-Socket

28

31YC-11540

31YC-11540-.. Bush-Pin

3

31Y1-17290

31Y1-17290-.. Gland

4

S732-085030

S732-085030-.. Bushing-Du

5

Y191-092000

Y191-092000-.. Ring-Snap

K

31Y1-17340

31Y1-17340-Seal Kit(6-9,11,12

K11

S631-110004

S631-110004-.. O-Ring

K12

S641-110003

S641-110003-.. Ring-Back Up

K15

S632-075004

S632-075004-.. O-Ring

K16

S642-075003

S642-075003-.. Ring-Back Up

K17

Y420-120000

Y420-120000-.. Seal-Piston

K18

Y310-120000

Y310-120000-.. Ring-Wear

K19

Y440-120000

Y440-120000-.. Ring-Dust

K26

Y171-019004

Y171-019004-.. O-Ring

K29

Y000-080200

Y000-080200-.. Seal-Dust

K6

Y220-085011

Y220-085011-.. Seal-Rod

K7

Y180-085020

Y180-085020-.. Ring-Back Up

K8

Y240-085011

Y240-085011-.. Ring-Buffer

K9

Y110-085011

Y110-085011-.. Wiper-Dust
