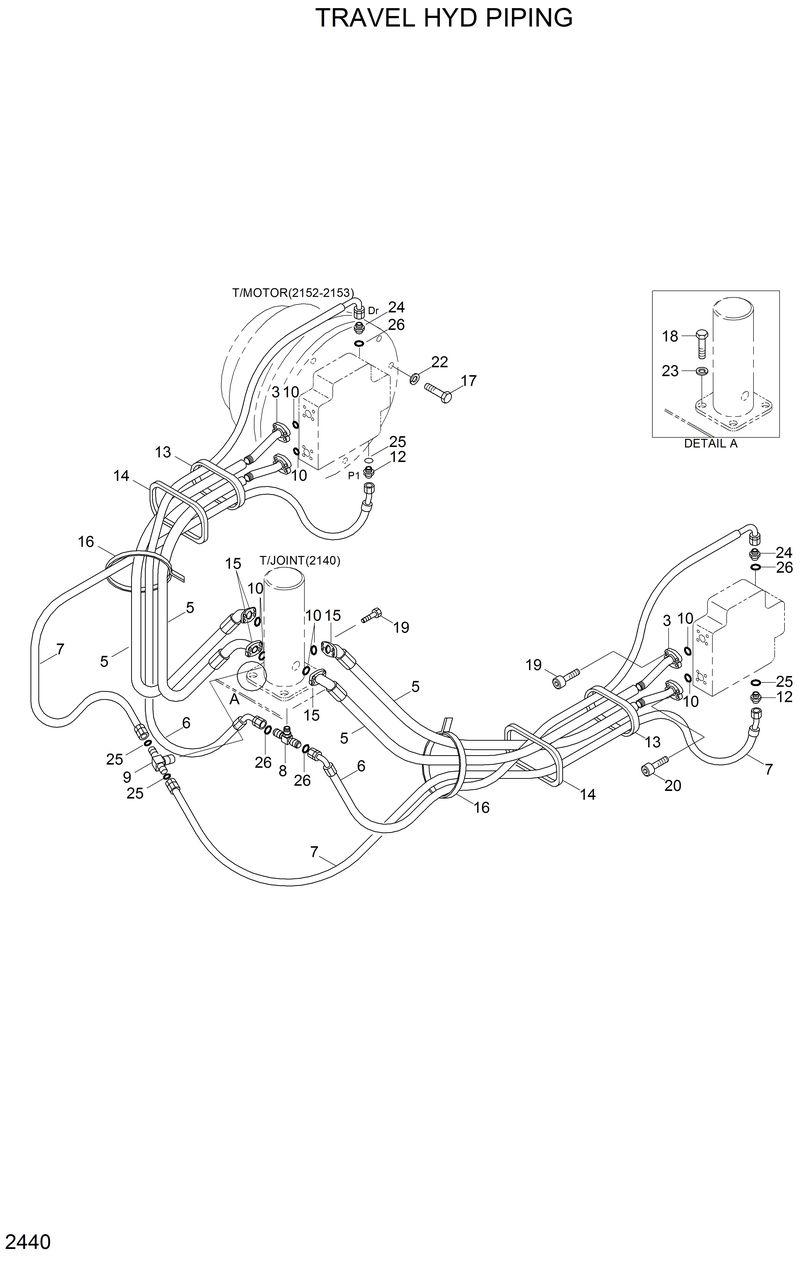

Запчасти Hyundai 33HDLL TRAVEL HYD PIPING

10

CO0423A

CO0423A-O-Ring

12

P010-110009

P010-110009-Connector-Long

13

E231-0270

E231-0270-Grommet

14

31E3-3119

31E3-3119-Grommet

15

P173-160104

P173-160104-Flange-Split

16

S551-050203

S551-050203-Clamp-Band

17

S017-200654

S017-200654-Bolt-Hex

18

S017-160502

S017-160502-Bolt-Hex

19

S107-100302

S107-100302-Bolt-Socket

20

S107-120352

S107-120352-Bolt-Socket

22

S411-200002

S411-200002-Washer-Spring

23

S411-160002

S411-160002-Washer-Spring

24

P101-108084

P101-108084-Connector-Long

25

S631-011001

S631-011001-O-Ring

26

S631-018001

S631-018001-O-Ring

3

32E9-00800

32E9-00800-Flange Wa

5

P660-167349

P660-167349-Hose Assy

6

P620-083055

P620-083055-Hose Assy-Thd 0x90

7

P610-042065

P610-042065-Hose Assy-Thd 0x45

8

P310-080808

P310-080808-Tee

9

P310-040404

P310-040404-Tee
