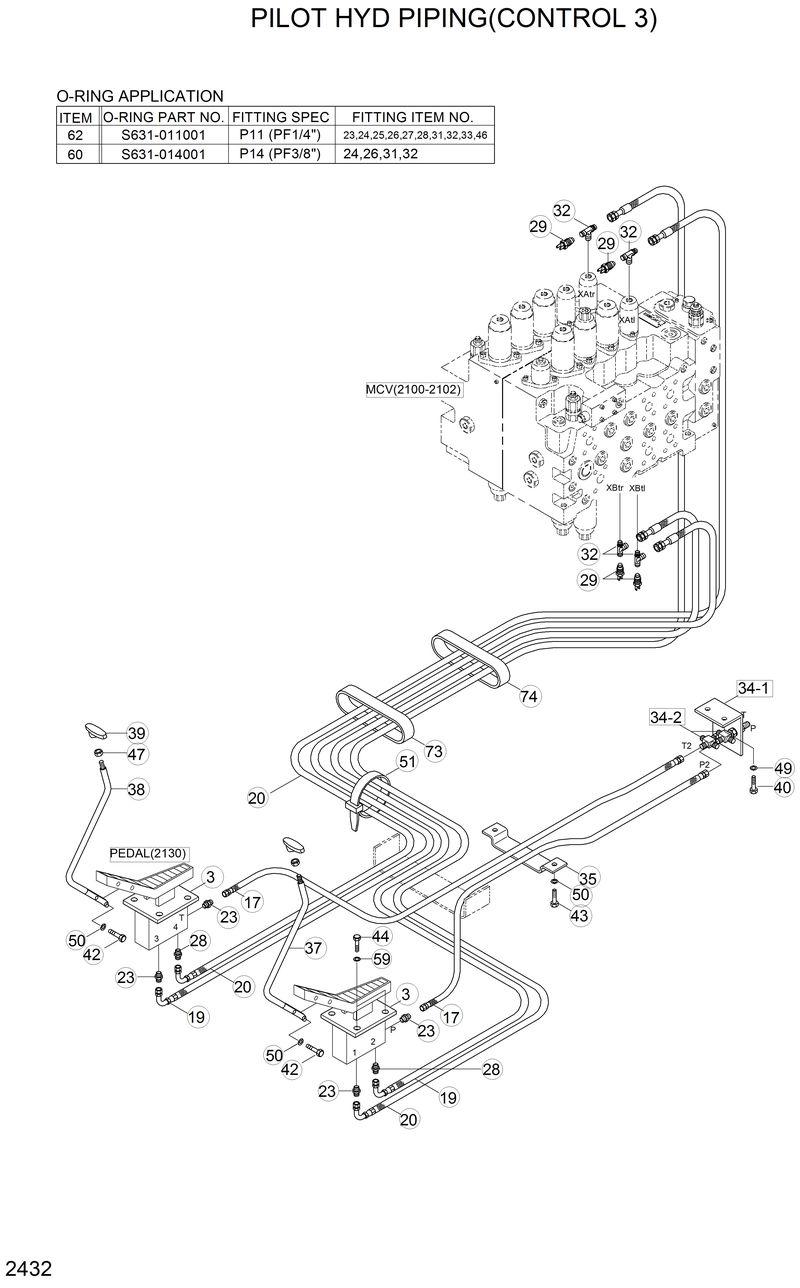

Запчасти Hyundai 33HDLL PILOT HYD PIPING(CONTROL 3)

17

P840-042080

P840-042080-Hose Assy-Synflex Thd

19

P840-042090

P840-042090-Hose Assy-Synflex Thd

20

P840-042098

P840-042098-Hose Assy-Synflex Thd

23

P010-110002

P010-110002-Connector

28

P010-110009

P010-110009-Connector-Long

29

E123-4013

E123-4013-Switch-Travel Alarm

3

31EH-00550

31EH-00550-Plate-Pedal

32

31EM-20140

31EM-20140-Tee

34

31EM-20330

31EM-20330-Cross Assy

34-1

31EM-20271

31EM-20271-. Cross-Filter

34-2

31EM-20280

31EM-20280-. Plate

35

31E9-10410

31E9-10410-Clamp-Hose

37

31EH-00620

31EH-00620-Lever-Lh

38

31EH-00630

31EH-00630-Lever-Rh

39

E131-1019

E131-1019-Knob

40

S015-080202

S015-080202-Bolt-Hex

42

S017-100206

S017-100206-Bolt-Hex

43

S017-100252

S017-100252-Bolt-Hex

44

S017-100306

S017-100306-Bolt-Hex

47

S205-101002

S205-101002-Nut-Hex

49

S411-080002

S411-080002-Washer-Spring

50

S411-100002

S411-100002-Washer-Spring

51

S551-050203

S551-050203-Clamp-Band

59

S411-100006

S411-100006-Washer-Spring

60

S631-014001

S631-014001-O-Ring

62

S631-011001

S631-011001-O-Ring

73

31EM-20080

31EM-20080-Grommet

74

S760-041922

S760-041922-Grommet
