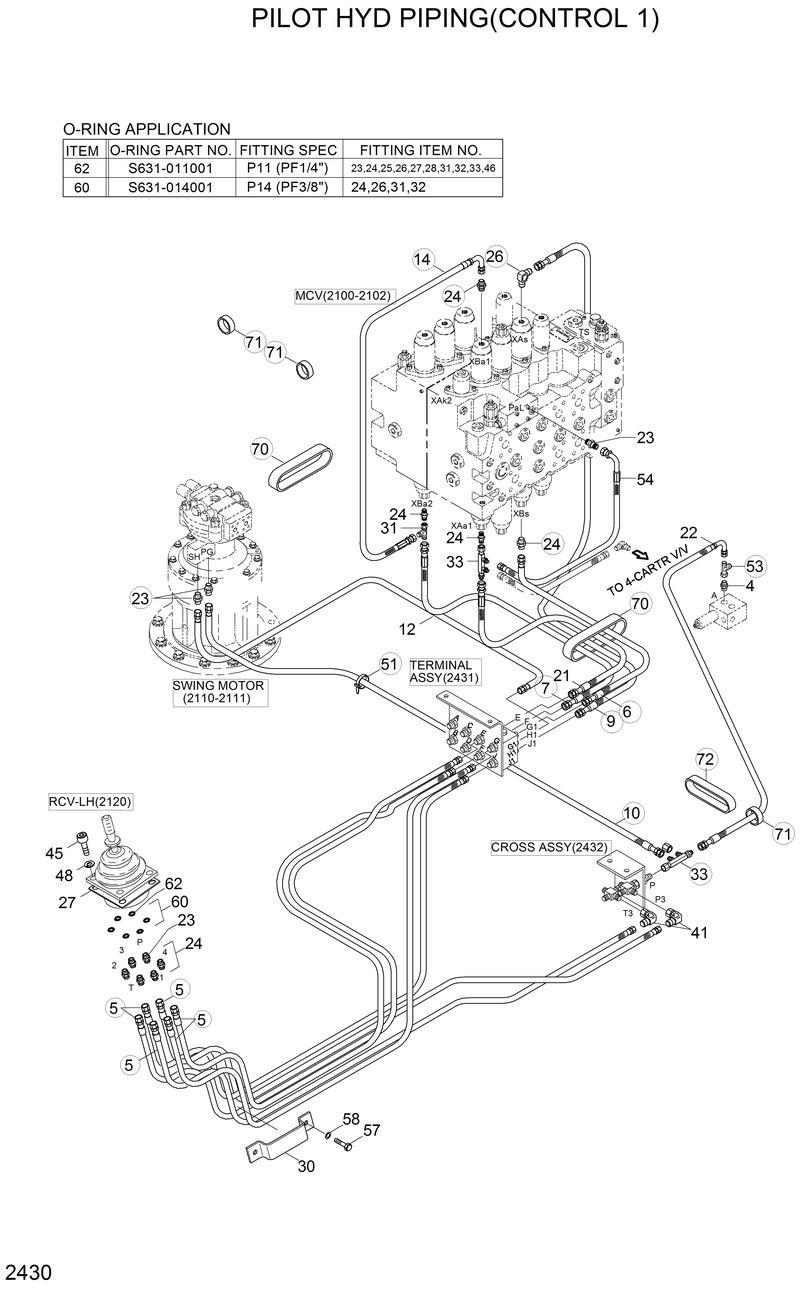

Запчасти Hyundai 33HDLL PILOT HYD PIPING(CONTROL 1)

10

P860-042045

P860-042045-Hose Assy-Synflex Thd

12

P860-042035

P860-042035-Hose Assy-Synflex Thd

14

P860-042016

P860-042016-Hose Assy-Synflex Thd

21

P840-042022

P840-042022-Hose Assy-Synflex Thd

22

P860-042021

P860-042021-Hose Assy-Synflex Thd

23

P010-110002

P010-110002-Connector

24

P010-110013

P010-110013-Connector

26

P020-110012

P020-110012-Elbow-90

27

31E9-20030

31E9-20030-Spacer-Rcv Lever

30

31E6-20020

31E6-20020-Clamp-Hose

31

31EH-00710

31EH-00710-Tee

33

31EM-20250

31EM-20250-Adaptor-Tee

4

31EK-20100

31EK-20100-Filter-Last Guard

41

31M5-56270

31M5-56270-Elbow-90

45

S175-060306

S175-060306-Bolt-Hex,Rd Hd

48

S403-062006

S403-062006-Washer-Plain

5

P850-042108

P850-042108-Hose Assy-Synflex Thd

51

S551-050203

S551-050203-Clamp-Band

53

32E6-10460

32E6-10460-Tee-Swivel

54

P860-042017

P860-042017-Hose Assy

57

S015-080206

S015-080206-Bolt-Hex

58

S403-082006

S403-082006-Washer-Plain

6

P840-042019

P840-042019-Hose Assy-Synflex Thd

60

S631-014001

S631-014001-O-Ring

62

S631-011001

S631-011001-O-Ring

7

P840-042020

P840-042020-Hose Assy-Synflex Thd

70

31EM-20070

31EM-20070-Grommet

71

S681-410800

S681-410800-Grommet

72

S760-031126

S760-031126-Grommet

9

P840-042027

P840-042027-Hose Assy-Synflex Thd
