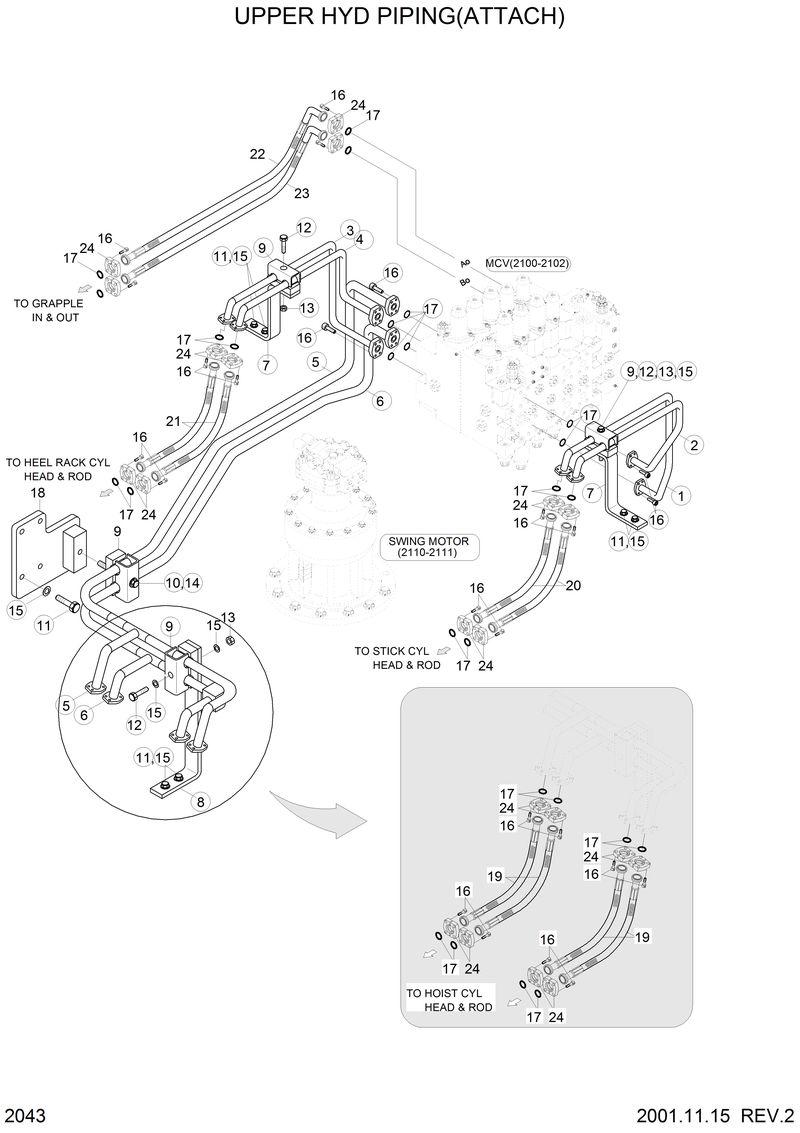

Запчасти Hyundai 33HDLL UPPER HYD PIPING(ATTACH)

Y171-024001

Y171-024001-O-Ring

Y171-024001

Y171-024001-O-Ring

S107-100354

S107-100354-Bolt-Socket

S107-100354

S107-100354-Bolt-Socket

1

31EM-13013

31EM-13013-Pipe Assy

10

S017-100752

S017-100752-Bolt-Hex

11

S017-120302

S017-120302-Bolt-Hex

12

S017-120802

S017-120802-Bolt-Hex

13

S207-121002

S207-121002-Nut-Hex

14

S411-100002

S411-100002-Washer-Spring

15

S411-120002

S411-120002-Washer-Spring

18

31EM-13140

31EM-13140-Bracket

19

31EM-50231

31EM-50231-Hose Assy

2

31EM-13022

31EM-13022-Pipe Assy

20

32W1-50082

32W1-50082-Hose Assy

21

32W1-50090

32W1-50090-Hose Assy

22

32W1-50101

32W1-50101-Hose Assy

23

32W1-50111

32W1-50111-Hose Assy

24

P173-160104

P173-160104-Flange-Split

3

31EM-13032

31EM-13032-Pipe Assy

4

31EM-13043

31EM-13043-Pipe Assy

5

32W1-10010

32W1-10010-Pipe Assy

6

32W1-10020

32W1-10020-Pipe Assy

7

31EM-13100

31EM-13100-Bracket-Attach

8

31EM-13110

31EM-13110-Bracket-Boom

9

31EM-12170

31EM-12170-Clamp-Pipe
