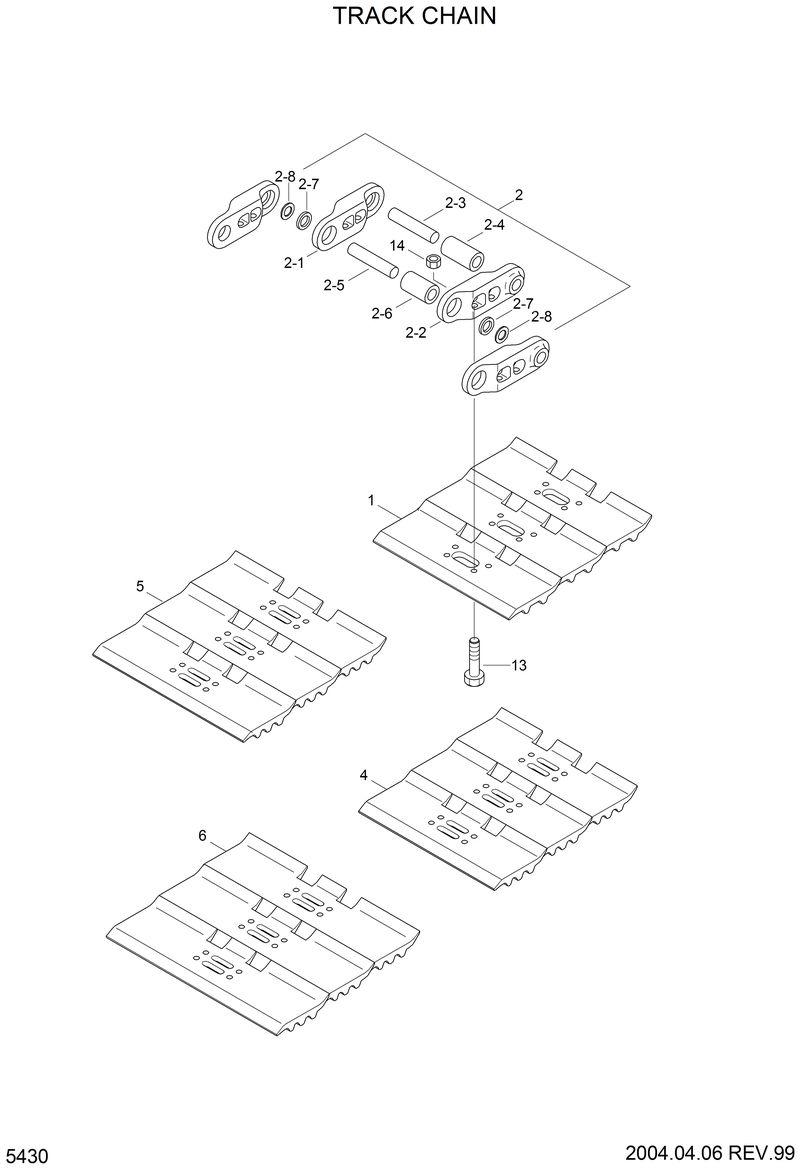

Запчасти Hyundai 33HDLL TRACK CHAIN

*

81W2-10100

81W2-10100-Track Chain Assy

*

83E5-2005

83E5-2005-Track Chain Assy(600mm)

*

83E5-2570

83E5-2570-Track Chain Assy(700mm)

*

83E5-2580

83E5-2580-Track Chain Assy(800mm)

1

81E9-28610

81E9-28610-. Shoe-Track

13

81E5-2503

81E5-2503-. Bolt-Shoe

13

81EM-20020

81EM-20020-. Bolt-Shoe

13

81EM-20020

81EM-20020-. Bolt-Shoe

13

81EM-20020

81EM-20020-. Bolt-Shoe

14

81N6-26620

81N6-26620-. Nut

14

81E5-2504

81E5-2504-. Nut

14

81N6-26620

81N6-26620-. Nut

14

81N6-26620

81N6-26620-. Nut

2

83E5-2501

83E5-2501-. Track Link Assy

2

83E5-2501

83E5-2501-. Track Link Assy

2

83E5-2501

83E5-2501-. Track Link Assy

2

83E5-2501

83E5-2501-. Track Link Assy

2-1

81E9-25111

81E9-25111-.. Track Link-Rh

2-2

81E9-25121

81E9-25121-.. Track Link-Lh

2-3

81E9-25161

81E9-25161-.. Pin

2-4

81E9-25151

81E9-25151-.. Bushing

2-5

81E9-25181

81E9-25181-.. Master Pin

2-6

81E9-25171

81E9-25171-.. Master Bushing

2-7

81E9-25191

81E9-25191-.. Spacer

2-8

81E9-25201

81E9-25201-.. Dust Seal

4

81E5-2502

81E5-2502-. Shoe-Track(600mm)

5

81E5-2507

81E5-2507-. Shoe-Track(700mm)

6

81E5-2508

81E5-2508-. Shoe-Track(800mm)
