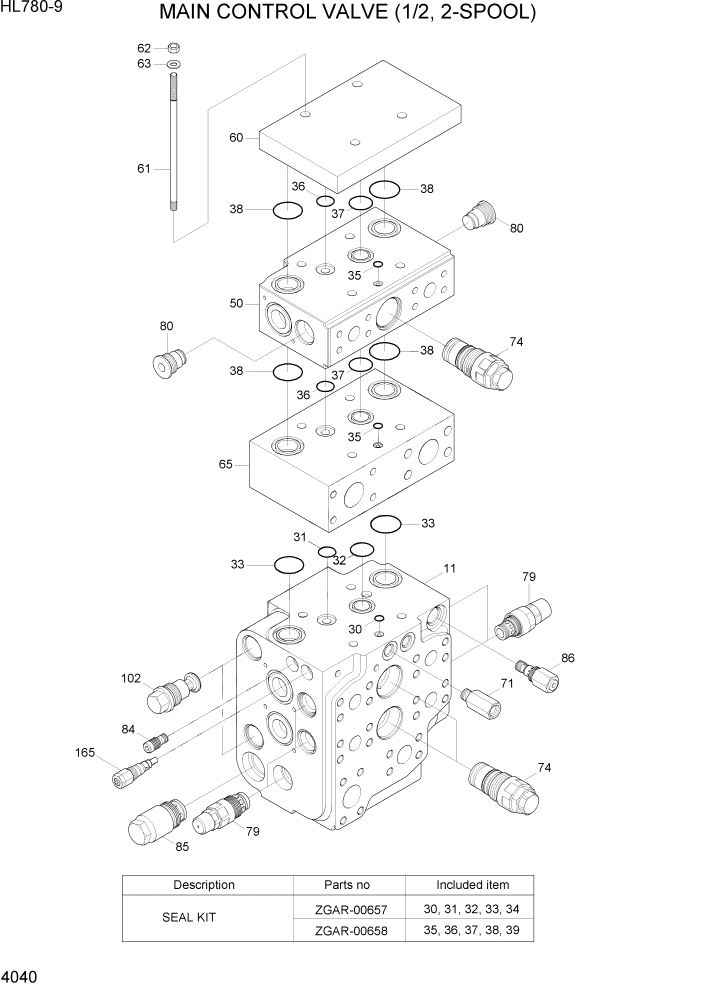

Запчасти Hyundai HL780-9 PAGE 4040 MAIN CONTROL VALVE (1/2, 2-SPOOL) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31LQ-00031

MCV-2SPOOL

1шт.

11

@

HOUSING

NOT

1шт.

K30

@

O-RING

NOT

2шт.

K31

@

O-RING

NOT

1шт.

K32

@

O-RING

NOT

1шт.

K33

@

O-RING

NOT

2шт.

K34

@

O-RING

NOT

6шт.

K35

@

O-RING

NOT

1шт.

K36

@

O-RING

NOT

1шт.

K37

@

O-RING

NOT

1шт.

K38

@

O-RING

NOT

2шт.

K39

@

O-RING

NOT

2шт.

50

ZGAR-00671

HOUSING

1шт.

60

ZGAR-00646

PLATE

1шт.

61

ZGAR-00682

LOCKING SCREW

4шт.

62

ZGAR-00673

HEXAGON NUT

4шт.

63

ZGAR-00648

WASHER

4шт.

65

ZGAR-00674

SANDWICH PLATE

1шт.

71

ZGAR-00649

SHUTTLE VALVE

1шт.

74

ZGAR-00650

COMPENSATOR VALVE

3шт.

79

ZGAR-00651

PRESSURE VALVE

5шт.

80

ZGAR-00675

PLUG SCREW

2шт.

84

ZGAR-00612

FLOW CONTROL VALVE

1шт.

85

ZGAR-00659

PREE CHARGE VALVE

1шт.

86

ZGAR-00636

PRESSURE REDUCING VLV

1шт.

102

ZGAR-00656

LOCKING SCREW

2шт.

165

ZGAR-00611

PRESSURE RELIEF VALVE

1шт.

K

ZGAR-00657

SEAL KIT

SEE ILLUST

1шт.

K

ZGAR-00658

SEAL KIT

SEE ILLUST

1шт.
