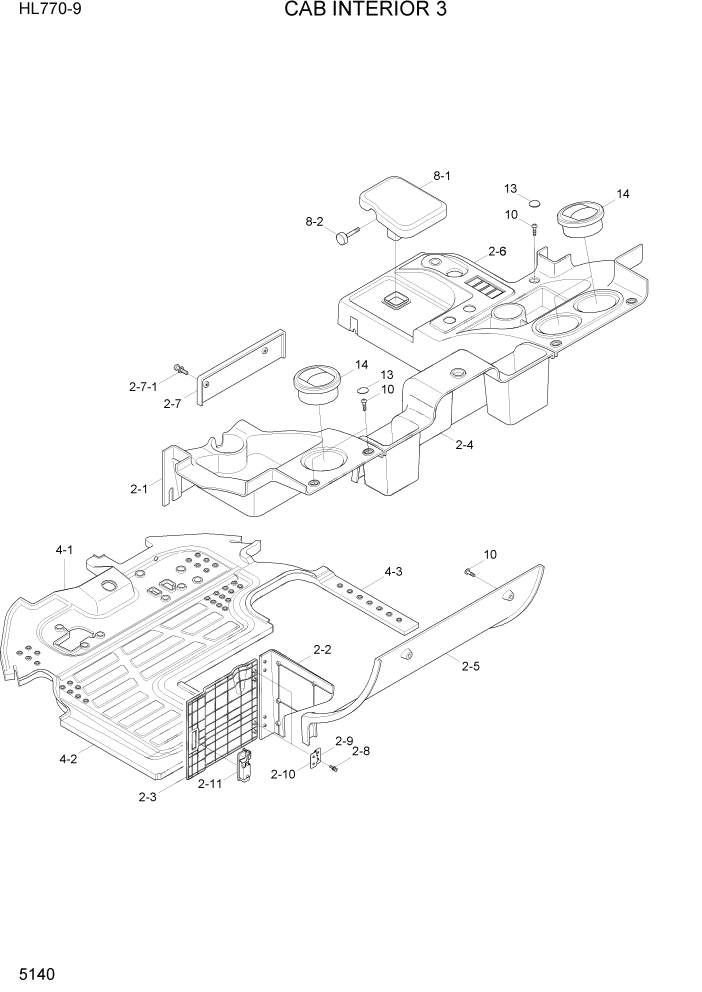

Запчасти Hyundai HL770-9 PAGE 5140 CAB INTERIOR 3 СТРУКТУРА

2

71LM-30203

CONSOLE BOX ASSY

1шт.

2-1

71LM-30213

CONSOLE BOX-LH UP

1шт.

2-2

71LM-30223

CONSOLE BOX-LH SIDE

1шт.

2-3

71LM-30233

CONSOLE BOX-LH FRONT

1шт.

2-4

71LM-30283

CONSOLE BOX-RR UP

1шт.

2-5

71LM-30293

CONSOLE BOX-RR LOW

1шт.

2-6

71LM-30313

CONSOLE_BOX-RH RR

1шт.

2-7

71LM-30363

COVER-SEAT

1шт.

2-7-1

71LN-29011

SCREW-CAPTIVE

2шт.

2-8

S002-06015B

SCREW-TRUS HEAD

8шт.

2-8

S002-06015B

SCREW-TRUS HEAD

8шт.

2-9

71LM-30263

HINGE-LH CON B

2шт.

2-1

71LM-30253

HINGE-LH CON A

2шт.

2-11

71LB-01221

LATCH ASSY

1шт.

2-12

71LM-30370

HINGE ASSY

#0001

2шт.

4

71LM-30550

MAT FLOOR ASSY-SINGLE

SINGLE BRAKE

1шт.

4

71LM-30513

MAT FLOOR-DUAL

DUAL BRAKE

1шт.

4-1

71LM-30560

MAT FLOOR-DUAL FRT

SINGLE BRAKE

1шт.

4-1

71LM-30523

MAT FLOOR-DUAL FRT

DUAL BRAKE

1шт.

4-2

71LM-30533

MAT FLOOR-DUAL RR LH

1шт.

4-3

71LM-30543

MAT FLOOR-DUAL RR RH

1шт.

8

71LM-30803

WRIST REST ASSY

1шт.

8-1

71LM-30940

KNOB-WRIST REST

1шт.

N8-2

71LM-30960

FOAM-WRIST REST

NOT

1шт.

10

S002-060166

SCREW-TRUSHEAD

22шт.

13

71Q6-22760

CAP-TRIM

18шт.

14

71Q6-22400

AIR NOZZLE-REAR

3шт.

N

@

NOT SUPPLIED PARTS

NOT

ARшт.
