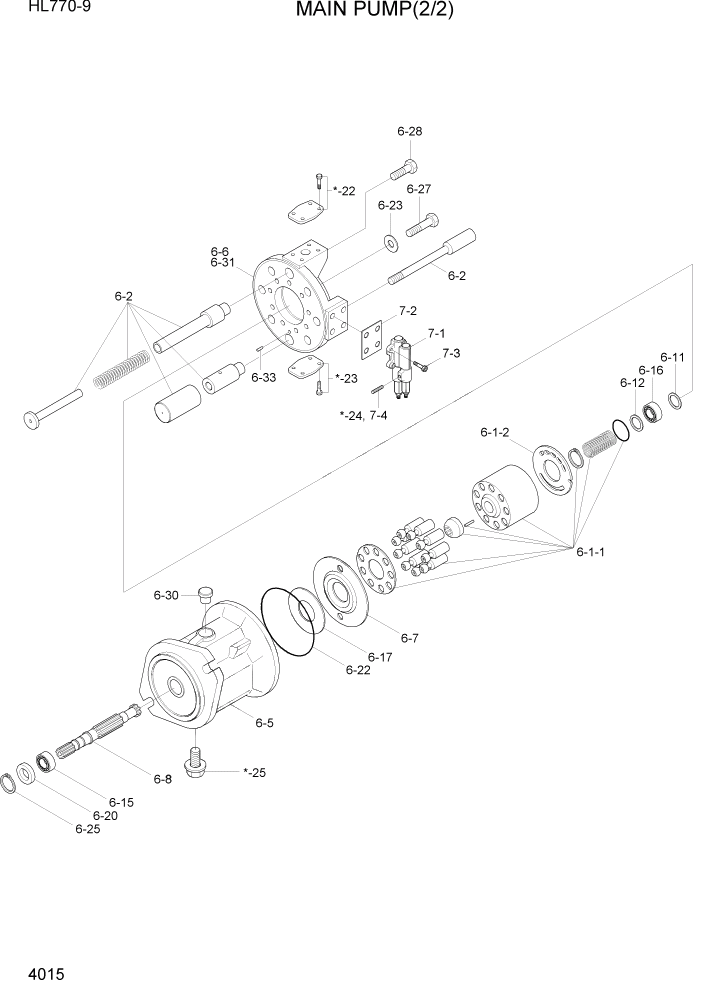

Запчасти Hyundai HL770-9 PAGE 4015 MAIN PUMP(2/2) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

@

MAIN PUMP

NOT

1шт.

*-2

ZGBP-00182

IMPLEMENT PUMP

1шт.

*-21

ZGBP-00184

IMPLEMENT PUMP-UNP

1шт.

6

ZGBP-00059

IMP PUMP W/O CON V/V

1шт.

6-1

ZGBP-00061

ROTARY GROUP

1шт.

6-1-1

ZGBP-00078

HIGH SPEED ROTARY

1шт.

6-1-2

ZGBP-00079

CONTROL PLATE

1шт.

N6-2

ZGBP-00062

ADJUSTING PIECE

NOT

1шт.

6-5

ZGBP-00063

PUMP HOUSING

1шт.

6-6

ZGBP-00064

PORT PLATE

1шт.

N6-7

ZGBP-00065

SWASH PLATE

NOT

1шт.

6-8

ZGBP-00066

DRIVE SHAFT

1шт.

N6-11

@

ADJUSTMENT SHIM

NOT

1шт.

6-12

ZGBP-00067

ADJUSTMENT SHIM

1шт.

6-15

ZGBP-00068

TAPERED R/BEARING

1шт.

6-16

ZGBP-00069

TAPERED R/BEARING

1шт.

6-17

ZGBP-00070

BEARING LINER(PAIR)

2шт.

6-2

ZGBP-00071

SHAFT SEAL RING

1шт.

6-22

ZGBP-00072

O-RING

1шт.

6-23

ZGBP-00073

O-RING

4шт.

6-25

ZGBP-00074

RETAINING RING

1шт.

6-27

ZGBP-00075

HEAD SCREW-SOCKET

4шт.

6-28

ZGBP-00076

LOCKING SCREW

1шт.

6-3

ZGBP-00077

LOCKING SCREW

1шт.

6-31

ZGBP-00031

DOUBLE BREAK-OFF PIN

1шт.

6-33

ZGBP-00032

CYLINDER PIN

1шт.

7

R902456686

CONTROL VALVE

1шт.

7-1

ZGBP-00094

CONTROL VALVE

1шт.

7-2

ZGBP-00049

GASKET

1шт.

7-3

ZGBP-00050

HEAD SCREW-SOCKET

4шт.

7-4

ZGBP-00051

LOCKING SCREW

1шт.

*-22

ZGBP-00006

FLANGE COVER

1шт.

*-23

ZGBP-00057

FLANGE COVER

1шт.

*-24

ZGBP-00008

SCREW-SEAL

1шт.

*-25

R902603190

SCREW-SEAL

1шт.

N

@

NOT SUPPLIED PARTS

NOT

ARшт.
