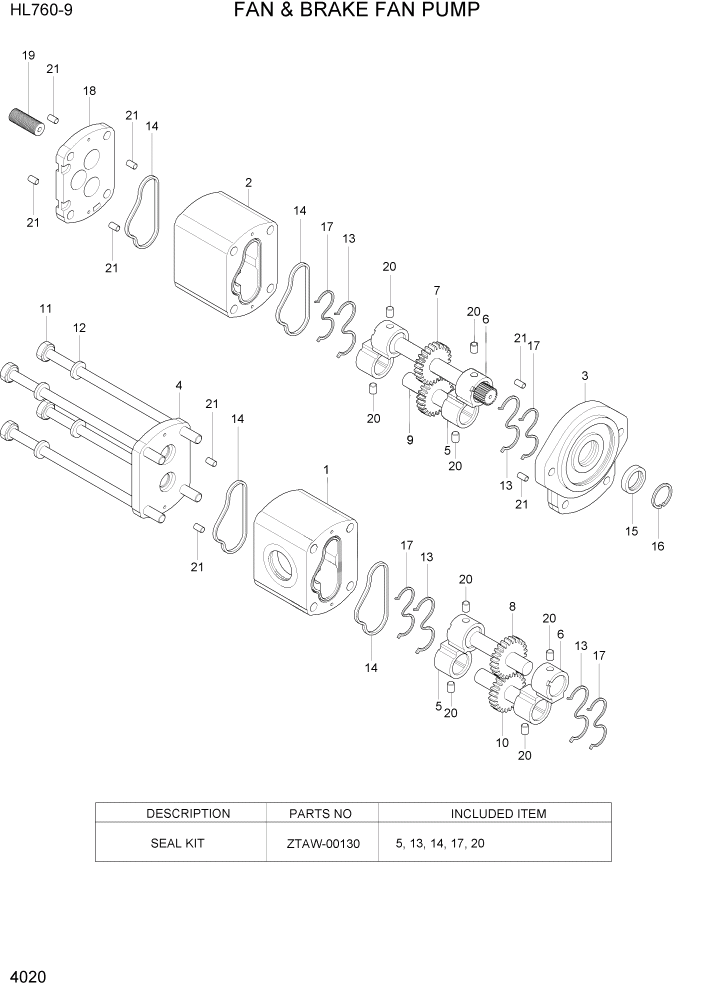

Запчасти Hyundai HL760-9 PAGE 4020 FAN & BRAKE PUMP ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31LD-40250

FAN & BRAKE PUMP

1шт.

1

@

HOUSING

NOT

1шт.

2

@

BODY

NOT

1шт.

3

@

COVER-FRONT

NOT

1шт.

4

@

COVER-REAR

NOT

1шт.

5

@

PLATE-HALFB THRUST

NOT

4шт.

6

@

PLATE-HALFB THRUST

NOT

4шт.

7

@

SHAFT-DRIVE

NOT

1шт.

8

@

GEAR-DRIVE

NOT

1шт.

9

@

GEAR-DRIVEN

NOT

1шт.

10

@

GEAR-DRIVEN

NOT

1шт.

11

@

SCREW

NOT

4шт.

12

@

WASHER

NOT

4шт.

K13

@

SEAL

NOT

4шт.

K14

@

SEAL

NOT

4шт.

15

@

SEAL-SHAFT

NOT

1шт.

16

@

RING

NOT

1шт.

K17

@

RING-BACKING

NOT

4шт.

18

@

FLANGE

NOT

1шт.

19

@

SHAFT-SPLINED

NOT

1шт.

K20

@

SPRING

NOT

8шт.

21

@

PIN-DOWEL

NOT

8шт.

K

ZTAW-00130

SEAL KIT

SEE ILLUST

1шт.
