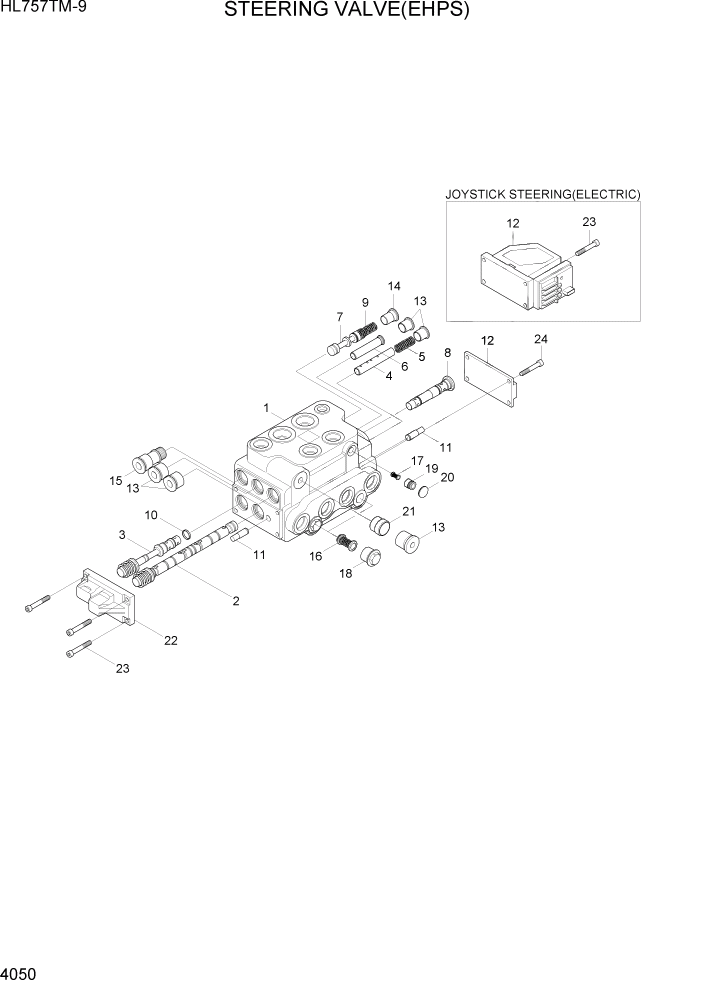

Запчасти Hyundai HL757TM-9 PAGE 4050 STEERING VALVE(EHPS) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31LM-30030

STEERING VALVE

STD

1шт.

*

31LM-30050

ELECTRIC STEERING VALVE

JOYSTICK STEER

1шт.

1

@

BLOCK-VALVE

NOT

1шт.

2

@

SPOOL

NOT

1шт.

3

@

SPOOL

NOT

1шт.

4

@

SPOOL

NOT

1шт.

5

@

SPRING

NOT

1шт.

6

@

PIPE

NOT

1шт.

7

@

SPOOL

NOT

1шт.

8

@

PLUG

NOT

1шт.

9

@

SPRING

NOT

1шт.

10

@

BUSHING WITH PLUG

NOT

1шт.

11

@

SHUTTLE

NOT

1шт.

12

@

PVES

NOT

1шт.

12

YUBS-00334

PVES

JOYSTICK STEER

1шт.

13

@

PLUG

NOT

5шт.

14

@

PLUG

NOT

1шт.

15

@

PLUG

NOT

1шт.

16

@

PVLP

NOT

2шт.

17

@

SPRING

NOT

1шт.

18

@

PLUG

NOT

1шт.

19

@

ADJUSTING SCREW

NOT

1шт.

20

@

BUSHING WITH PLUG

NOT

1шт.

21

@

CHECK VALVE

NOT

1шт.

22

@

COVER

NOT

1шт.

23

@

SCREW

NOT

4шт.

23

@

SCREW

NOT

8шт.

24

@

SCREW

NOT

4шт.

K

YUBS-00101

SEAL KIT

1шт.
