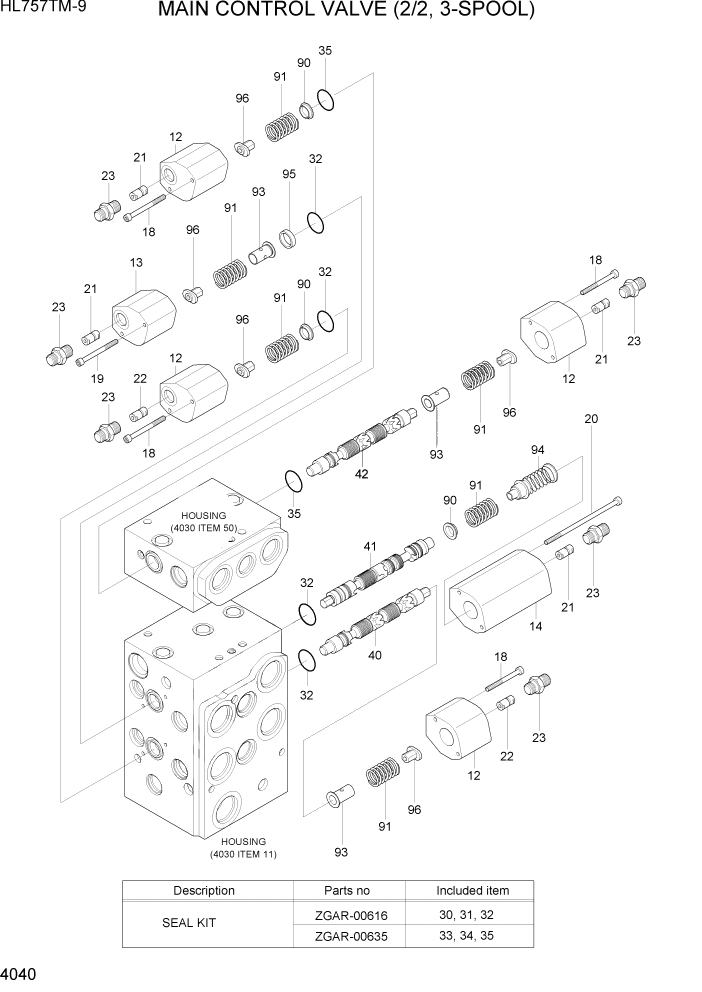

Запчасти Hyundai HL757TM-9 PAGE 4040 MAIN CONTROL VALVE (2/2, 3-SPOOL) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

@

MCV-3 SPOOL

NOT

1шт.

12

ZGAR-00617

COVER

4шт.

13

ZGAR-00618

COVER

1шт.

14

ZGAR-00619

COVER

1шт.

18

ZGAR-00620

CYLINDER SCREW

8шт.

19

ZGAR-00621

CYLINDER SCREW

2шт.

20

ZGAR-00622

CYLINDER SCREW

2шт.

21

ZGAR-00623

THROTTLE CHECK VALVE

4шт.

22

ZGAR-00624

THROTTLE CHECK VALVE

2шт.

23

ZGAR-00625

FITTING-STEEL PIPE

6шт.

K30

@

O-RING

NOT

1шт.

K31

@

O-RING

NOT

3шт.

K32

@

O-RING

NOT

4шт.

K33

@

O-RING

NOT

1шт.

K34

@

O-RING

NOT

3шт.

K35

@

O-RING

NOT

2шт.

40

ZGAR-00680

THROTTLE CHECK VALVE

1шт.

41

ZGAR-00627

SPOOL

1шт.

42

ZGAR-00626

SPOOL

1шт.

90

ZGAR-00628

SPRING RETAINER

3шт.

91

ZGAR-00629

COMPRESSION SPRING

6шт.

93

ZGAR-00630

SPRING RETAINER

3шт.

94

ZGAR-00631

SPRING

1шт.

95

ZGAR-00632

RING

1шт.

96

ZGAR-00633

SPRING RETAINER

5шт.

K

ZGAR-00616

SEAL KIT

SEE ILLUST

1шт.

K

ZGAR-00635

SEAL KIT

SEE ILLUST

1шт.
