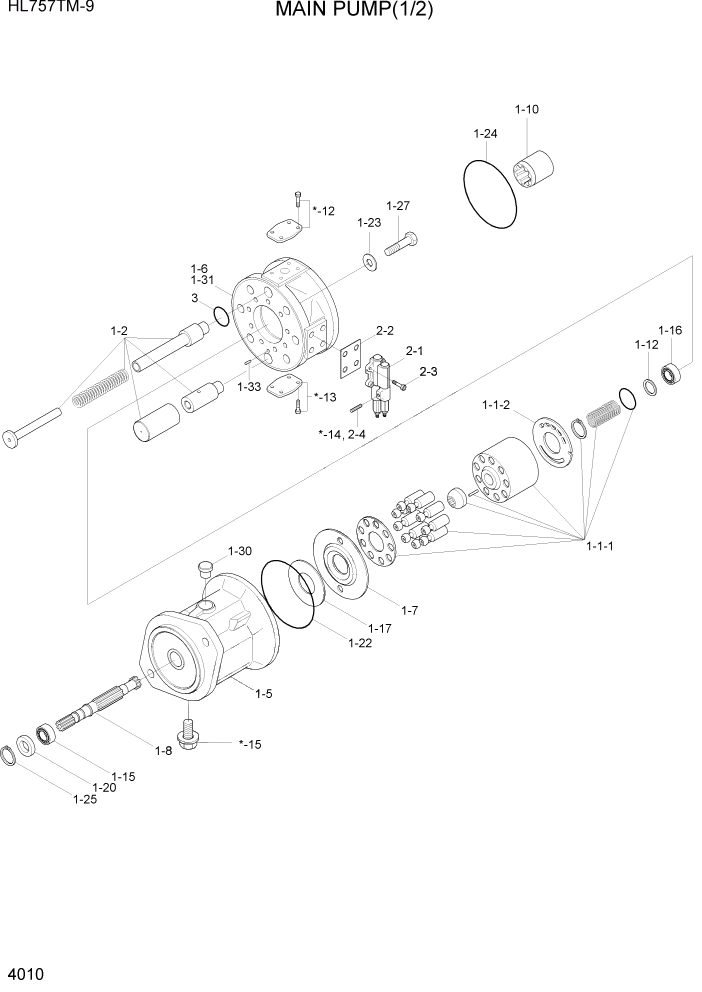

Запчасти Hyundai HL757TM-9 PAGE 4010 MAIN PUMP(1/2) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31LM-00010

MAIN PUMP

WITH *-1, *-2

1шт.

*-1

ZGBP-00181

STEERING PUMP

1шт.

*-11

ZGBP-00183

STEERING PUMP-UNP

1шт.

1

ZGBP-00010

STEER-PUMP W/O CON V/V

1шт.

1-1

ZGBP-00013

ROTARY GROUP

1шт.

1-1-1

ZGBP-00033

HIGH SPEED ROTARY GRP

1шт.

1-1-2

ZGBP-00034

CONTROL PLATE

1шт.

N1-2

ZGBP-00014

ADJUSTING PIECE

NOT

1шт.

1-5

ZGBP-00015

PUMP HOUSING

1шт.

1-6

ZGBP-00016

PORT PLATE

1шт.

N1-7

ZGBP-00017

SWASH PLATE

NOT

1шт.

1-8

ZGBP-00018

DRIVE SHAFT

1шт.

1-1

ZGBP-00019

SPLINED HUB

1шт.

1-12

ZGBP-00020

ADJUSTMENT SHIM

1шт.

1-15

ZGBP-00021

TAPERED R/BEARING

1шт.

1-16

ZGBP-00022

TAPERED R/BEARING

1шт.

1-17

ZGBP-00023

BEARING LINER

2шт.

1-2

ZGBP-00024

SHAFT SEAL RING

1шт.

1-22

ZGBP-00025

O-RING

1шт.

1-23

ZGBP-00026

O-RING

4шт.

1-24

ZGBP-00027

O-RING

1шт.

1-25

ZGBP-00028

RETAINING RING

1шт.

1-27

ZGBP-00029

SCREW-SOCKET HEAD

4шт.

1-3

ZGBP-00030

LOCKING SCREW

1шт.

1-31

ZGBP-00031

DOUBLE BREAK-OFF PIN

1шт.

1-33

ZGBP-00032

CYLINDER PIN

1шт.

2

ZGBP-00011

CONTROL VALVE

1шт.

2-1

ZGBP-00105

CONTROL VALVE

1шт.

2-2

ZGBP-00049

GASKET

1шт.

2-3

ZGBP-00050

HEAD SCREW-SOCKET

4шт.

2-4

ZGBP-00051

LOCKING SCREW

1шт.

3

ZGBP-00012

SIDE MARKER RING

1шт.

*-12

ZGBP-00006

FLANGE COVER

1шт.

*-13

ZGBP-00007

FLANGE COVER

1шт.

*-14

ZGBP-00008

SCREW-SEAL

1шт.

*-15

ZGBP-00009

SCREW-SEAL

1шт.

*-2

@

IMPLEMENT PUMP

NOT

1шт.
