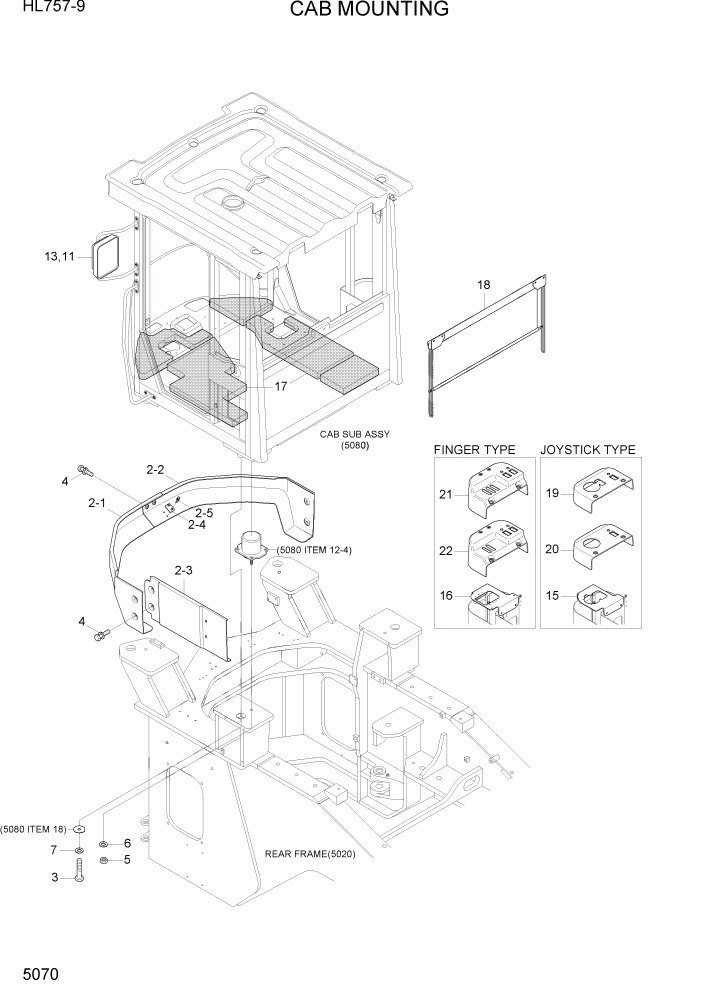

Запчасти Hyundai HL757-9 PAGE 5070 CAB MOUNTING СТРУКТУРА

1

@

CAB SUB ASSY

NOT

1шт.

2

71LM-01013

CAB LOW COVER ASSY

1шт.

2-1

71LM-01023

CAB LOW COVER-FR, LH

1шт.

2-2

71LM-01033

CAB LOW COVER-FR, RH

1шт.

2-3

71LM-01043

CAB LOW COVER-SD, LH

1шт.

2-4

71LM-01083

PLATE

1шт.

2-5

S037-122526

BOLT-W/WASHER

2шт.

3

S017-30060D

BOLT-HEX

4шт.

4

S037-122526

BOLT-W/WASHER

8шт.

5

S205-16100B

NUT-HEX

4шт.

6

S441-160006

WASHER-HARDENED

4шт.

7

S441-300006

WASHER-HARDENED

4шт.

*-5

71LM-36002

OPTION PARTS SUB ASSY

1шт.

11

71LB-00111

MIRROR ASSY-EXT

2шт.

13

71LB-00311

MIRROR ASSY-EXT/HEAT

HEATED, OPT

2шт.

15

71LM-23562

SUPPORT-RCV, JOYSTICK

1шт.

16

71LM-23582

SUPPORT-RCV, FINGER TIP

1шт.

17

71LM-27202

SPONGE

LOW NOISE

1шт.

18

71LM-29052

SUN VISOR-ROLL SCREEN

REAR

1шт.

19

71LM-30323

COVER-RCV, JOYSTICK

3-SPOOL

1шт.

20

71LM-30333

COVER-RCV, JOYSTICK

2-SPOOL

1шт.

21

71LM-30343

COVER-RCV, FINGER TIP

3-SPOOL

1шт.

22

71LM-30353

COVER-RCV, FINGER TIP

2-SPOOL

1шт.
