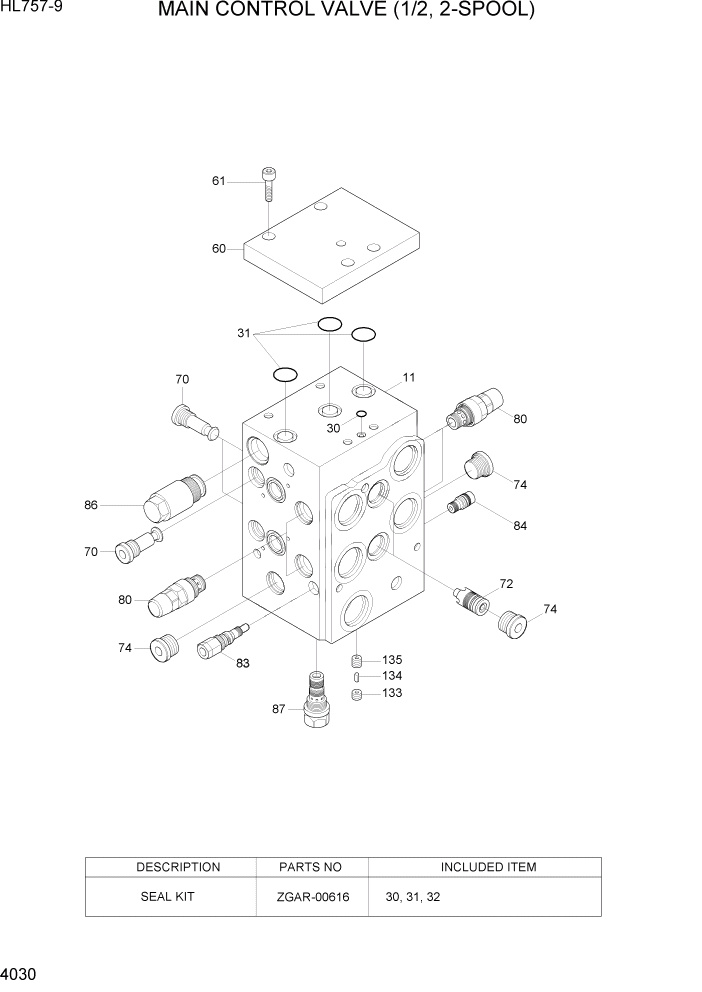

Запчасти Hyundai HL757-9 PAGE 4030 MAIN CONTROL VALVE (1/2, 2-SPOOL) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31LM-00020

MCV-2SPOOL

SEE 4035

1шт.

11

@

HOUSING

NOT

1шт.

K30

@

O-RING

NOT

1шт.

K31

@

O-RING

NOT

3шт.

K32

@

O-RING

NOT

4шт.

60

ZGAR-00605

PLATE

1шт.

61

ZGAR-00606

CYLINDER SCREW

4шт.

70

ZGAR-00607

CHECK VALVE

3шт.

72

ZGAR-00608

SPOOL

2шт.

74

ZGAR-00609

SCREW-LOCKING

4шт.

N80

ZGAR-00610

PRESSURE RELIEF VALVE

NOT

4шт.

83

ZGAR-00611

PRESSURE RELIEF VALVE

MAIN

1шт.

84

ZGAR-00612

FLOW CONTROL VALVE

1шт.

86

ZGAR-00613

COUNTER BALANCE VALVE

1шт.

87

ZGAR-00614

PRESSURE REDUCING V/V

1шт.

133

ZGAR-00566

SEAT-VALVE

1шт.

134

ZGAR-00615

BOLT-THROTTLE

1шт.

135

ZGAR-00565

SEAT-VALVE

1шт.

K

ZGAR-00616

SEAL KIT

SEE ILLUST

1шт.
