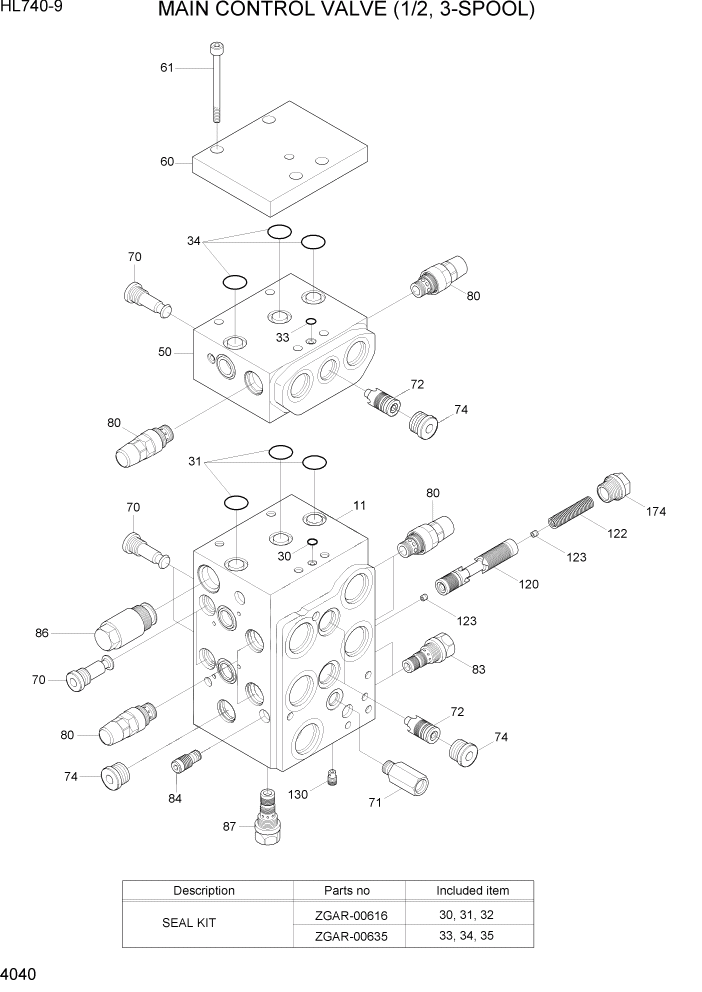

Запчасти Hyundai HL740-9 PAGE 4040 MAIN CONTROL VALVE (1/2, 3-SPOOL) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31LN-00031

MCV-3 SPOOL

SEE 4045

1шт.

11

@

HOUSING

NOT

1шт.

K30

@

O-RING

NOT

2шт.

K31

@

O-RING

NOT

3шт.

K32

@

O-RING

NOT

4шт.

K33

@

O-RING

NOT

1шт.

K34

@

O-RING

NOT

3шт.

K35

@

O-RING

NOT

2шт.

50

@

HOUSING

NOT

1шт.

60

ZGAR-00605

PLATE

1шт.

61

ZGAR-00634

CYLINDER SCREW

4шт.

70

ZGAR-00607

CHECK VALVE

5шт.

71

ZGAR-00649

SHUTTLE VALVE

1шт.

72

ZGAR-00608

SPOOL

3шт.

74

ZGAR-00609

SCREW-LOCKING

4шт.

N80

ZGAR-00610

PRESSURE RELIEF VALVE

NOT

6шт.

83

ZGAR-00611

PRESSURE RELIEF VALVE

2шт.

84

ZGAR-00612

FLOW CONTROL VALVE

1шт.

86

ZGAR-00613

COUNTER BALANCE VALVE

1шт.

87

ZGAR-00636

PRESSURE REDUCING VLV

1шт.

120

ZGAR-00663

SPOOL

1шт.

122

ZGAR-00664

PRESSURE SPRING

1шт.

123

ZGAR-00665

ORIFICE

2шт.

130

ZGAR-00666

CHECK VALVE

1шт.

174

ZGAR-00667

LOCKING SCREW

1шт.

K

ZGAR-00616

SEAL KIT

SEE ILLUST

1шт.

K

ZGAR-00635

SEAL KIT

SEE ILLUST

1шт.

N

@

NOT SUPPLIED PARTS

NOT

ARшт.
