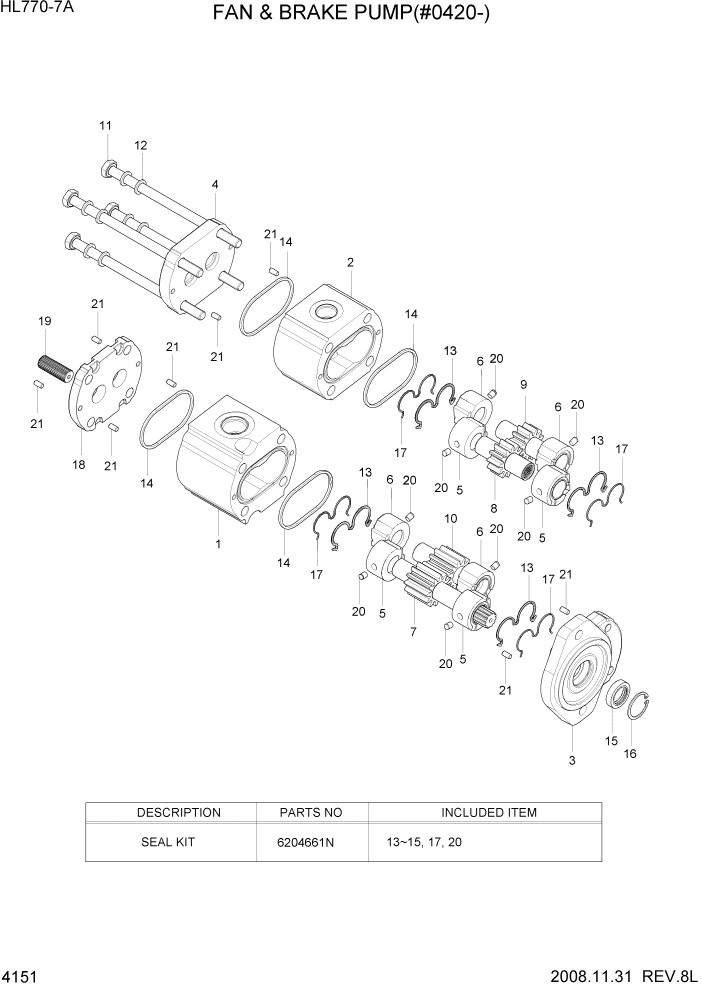

Запчасти Hyundai HL770-7A PAGE 4151 FAN & BRAKE PUMP(#0420-#1436) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31LB-40440

PUMP ASSY

#0420 - #0798

1шт.

*

31LB-40441

FAN & BRAKE PUMP

SEE 3090 #0799 - #1436

1шт.

1

@

BODY

NOT

1шт.

2

@

BODY

NOT

1шт.

3

@

COVER-FRONT

NOT

1шт.

4

@

COVER-REAR

NOT

1шт.

5

@

BUSHING

NOT

4шт.

6

@

BUSHING

NOT

4шт.

7

@

GEAR-DRIVE

NOT

1шт.

8

@

GEAR-DRIVE

NOT

1шт.

9

@

GEAR-DRIVEN

NOT

1шт.

10

@

GEAR-DRIVEN

NOT

1шт.

11

@

SCREW

NOT

4шт.

12

@

WASHER-SPRING

NOT

8шт.

K13

@

BUSH LOBE SEAL

NOT

4шт.

K14

@

BODY SEAL

NOT

4шт.

K15

@

SHAFT SEAL

NOT

1шт.

16

@

RING

NOT

1шт.

K17

@

BUSH LOBE SEAL

NOT

4шт.

18

@

PLATE-INTERMEDIATE

NOT

1шт.

19

@

CONNECTING SHAFT

NOT

1шт.

K20

@

SPRING

NOT

8шт.

21

@

DOWEL PIN

NOT

8шт.

22

31LB-40450

PLATE

#0790

1шт.

23

31LB-40460

PLATE

#0790

1шт.

24

S037-102556

BOLT-W/WASHER

#0790

4шт.

K

6204661N

SEAL KIT

SEE ILLUST

1шт.
