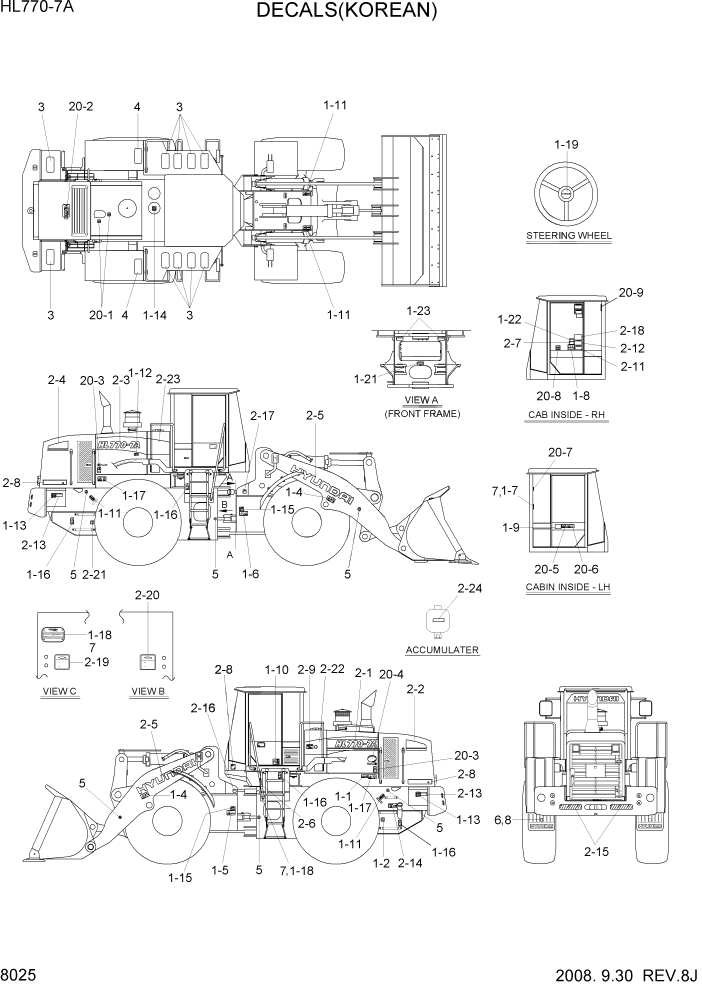

Запчасти Hyundai HL770-7A PAGE 8025 DECALS(KOREAN) ДРУГИЕ ЧАСТИ

1

92LB-00062

DECAL KIT(A)

#1167

1шт.

1

92LB-00063

DECAL KIT(A)

#1168

1шт.

1-1

91LB-01110

DECAL-START MOTOR

1шт.

1-2

91LB-01190

DECAL-DRAIN/REMOTE

1шт.

1-4

91LB-01210

DECAL-BUCKET STOPPER

1шт.

1-5

91LB-01260

DECAL-STEER WARN/LH

1шт.

1-6

91LB-01270

DECAL-STEER WARN/RH

1шт.

1-7

91LB-01280

ROPS PLATE

1шт.

1-8

91LB-01300

CONTROL IDEOGRAM

1шт.

1-8

91LB-01310

CONTROL IDEOGRAM

2-LEVER

1шт.

1-9

91E1-18080

DECAL-PUBLIC PERMIT

1шт.

1-1

91LB-01320

DECAL-AIRCON FILTER

1шт.

1-11

94L3-00420

SLINGING IDEOGRAM

#1167

4шт.

1-11

92LB-14000

DECAL-LIFT & TIE

#1168

4шт.

1-12

91N6-01102

AIR CLEANER FILTER

1шт.

1-13

91N6-02120

DECAL-BATT ACCIDENT

2шт.

1-14

91N6-03111

HYD OIL LUBR

1шт.

1-15

91N6-03130

DECAL-H/PRESSURE HOSE

2шт.

1-16

91N6-03140

FALLING

4шт.

1-17

91N6-07121

SHEARING

2шт.

1-18

91E1-14110

NAME PLATE

1шт.

1-19

91LB-08110

DECAL-STEERING WHEEL

1шт.

1-21

91LH-01210

DECAL-GREASE CENTER

1шт.

1-22

91N8-07390

DECAL-TURBOCHARGER

1шт.

1-23

91LB-06360

DECAL-RIDE CONTROL

RIDE CONTROL

2шт.

2

92LB-06100

DECAL KIT(B)

HL770-7A #0232

1шт.

2

92LB-06101

DECAL KIT(B)

HL770-7A #0233 - #0559

1шт.

2

92LB-06102

DECAL KIT(B)

HL770-7A #0560 - #0672

1шт.

2

92LB-06103

DECAL KIT(B)

HL770-7A #0673 - #1166

1шт.

2

92LB-06104

DECAL KIT(B)

HL770-7A #1167

1шт.

2

92LB-06200

DECAL KIT(B)

HL770XTD-7A #0232

1шт.

2

92LB-06201

DECAL KIT(B)

HL770XTD-7A #0233 - #0559

1шт.

2

92LB-06202

DECAL KIT(B)

HL770XTD-7A #0560 - #0672

1шт.

2

92LB-06203

DECAL KIT(B)

HL770XTD-7A #0673 - #1166

1шт.

2

92LB-06204

DECAL KIT(B)

HL770XTD-7A #1167

1шт.

2-1

92LB-15110

MODEL NAME-LH/FR

HL770-7A #0232

1шт.

2-1

92LB-15112

MODEL NAME-LH/FR

HL770-7A #0233

1шт.

2-1

92LB-15130

MODEL NAME-LH/FR

HL770XTD-7A #0232

1шт.

2-1

92LB-15132

MODEL NAME-LH/FR

HL770XTD-7A #0233

1шт.

2-2

91LB-15121

MODEL NAME-LH/RR

#0232

1шт.

2-2

92LB-15170

MODEL NAME-LH/RR

#0233

1шт.

2-3

92LB-15120

MODEL NAME-RH/FR

HL770-7A #0232

1шт.

2-3

92LB-15122

MODEL NAME-RH/FR

HL770-7A #0233

1шт.

2-3

92LB-15140

MODEL NAME-RH/FR

HL770XTD-7A #0232

1шт.

2-3

92LB-15142

MODEL NAME-RH/FR

HL770XTD-7A #0233

1шт.

2-4

91LB-15141

MODEL NAME-RH/RR

#0232

1шт.

2-4

92LB-15180

MODEL NAME-RH/RR

#0233

1шт.

2-5

91N6-21090

DECAL-TRADE MARK

#0232

2шт.

2-5

91N6-23120

TRADE MARK-BOOM/CW

#0233

2шт.

2-6

92LB-60710

DECAL-S/INSTRUCTION

#0559

1шт.

2-6

92LB-60711

DECAL-S/INSTRUCTION

#0560 - #1166

1шт.

2-6

92LB-60712

SERVICE INSTRUCTION

#1167

1шт.

2-7

92LB-60510

DECAL-SPEC SHEET

1шт.

2-8

91LB-16150

OVERALL WIDTH

1шт.

2-9

91LB-06130

DECAL-HYD OIL LEVEL

1шт.

2-11

91LB-06250

DECAL-ROPS CABIN

1шт.

2-12

91LB-06290

DECAL-REFER MANUAL

1шт.

2-13

91LB-06350

DECAL-MCU CONNECT

1шт.

2-14

91N8-01130

DECAL-FUELING

1шт.

2-15

91LB-06410

DECAL-KEEPCLEAR

2шт.

2-16

91LB-06190

GREASE(A)

1шт.

2-17

91LB-06200

GREASE(B)

1шт.

2-18

91LB-16170

DECAL-START PROCEDURE

1шт.

2-19

91LB-06170

GREASE(C)

1шт.

2-2

91LB-06180

GREASE(D)

1шт.

2-21

91LB-01370

DECAL-DRAIN/ENGINE

1шт.

2-22

92LB-15190

M/NAME-LH,HYD TANK

#0233

1шт.

2-23

92LB-15200

M/NAME-RH,HYD TANK

#0233

1шт.

2-24

91N6-03200

DECAL-ACCUMULATER

#0673

4шт.

R2-24

91N6-03200

DECAL-ACCUMULATER

RIDE CONTROL #0673

6шт.

2-25

91LB-17010

DECAL-NOISE LEVEL

#0673

1шт.

3

91E1-26300

STEP TREAD

A/S ITEM

10шт.

4

91E1-26300

STEP TREAD

MUD GUARD #1058

2шт.

5

21EK-10150

REFLECTOR-SIDE

6шт.

6

51EK-52990

REFLECTOR-REAR

MUD GUARD

2шт.

7

E171-1246

RIVET

8шт.

8

S403-05200B

WASHER-PLAIN

MUD GUARD

2шт.

20

92LB-00080

DECAL KIT-A/S

1шт.

20-1

91N6-01111

TURBO COVER

2шт.

20-2

91N6-01121

DECAL-RADIATOR CAP

1шт.

20-3

91N6-07112

STAY FIX

2шт.

20-4

91E1-27110

LOW EMISSION ENG

1шт.

20-5

91LB-01230

DECAL-MAX H/REACH

1шт.

20-6

91LB-01240

DECAL-ROLL OVER

1шт.

20-7

91LB-01340

DECAL-HAMMER

1шт.

20-8

91N6-07261

ALTERNATE EXIT

1шт.

20-9

91N6-07290

DECAL-FIRE

1шт.
