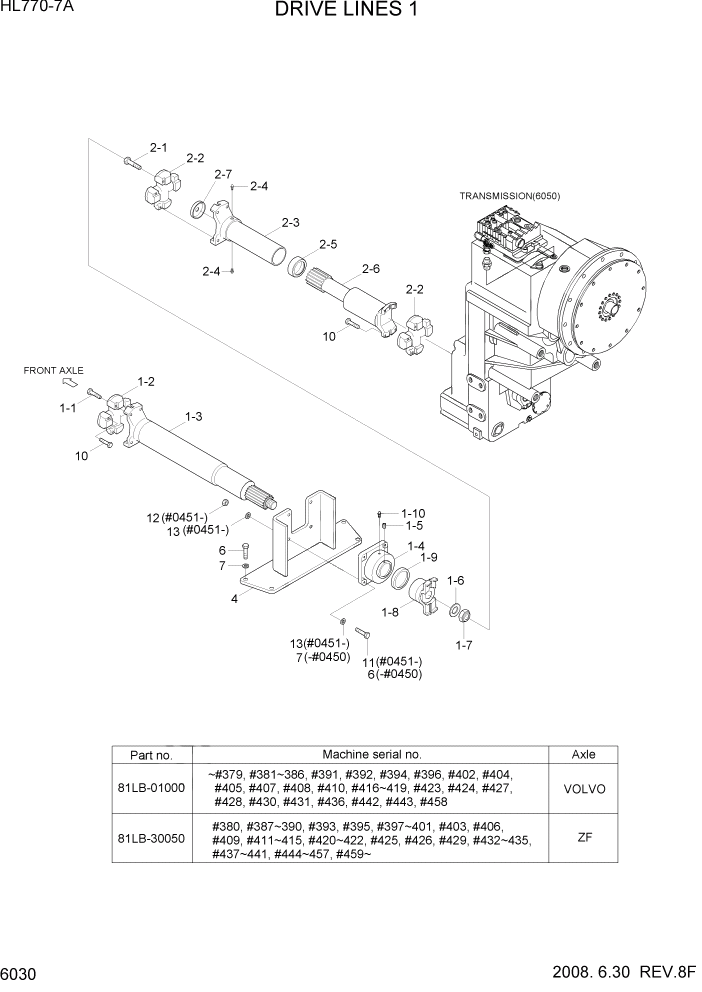

Запчасти Hyundai HL770-7A PAGE 6030 DRIVE LINES 1 СИЛОВАЯ СИСТЕМА

1

81LB-01000

DRIVE SHAFT-FRONT

SEE ILLUST #0428

1шт.

1

81LB-30050

DRIVE SHAFT-FRONT

SEE ILLUST #0429 - #0450

1шт.

1

81LB-30070

DRIVE SHAFT-FRONT

CHANGE WITH 4 #0451

1шт.

1-1

103-21UNF859

BOLT

4шт.

1-2

100-8-5C-1

J/BEARING ASSY

1шт.

1-3

40AF-8-5C640L

SHAFT ASSY-SLIP

SEE ILLUST #0428

1шт.

1-3

40AF-85C715L

SHAFT ASSY-SUB

SEE ILLUST #0429

1шт.

1-4

700-UCF213

F/L BEARING ASSY

#0450

1шт.

1-4

700-UCF313

F/L BEARING ASSY

CHANGE WITH 4 #0451

1шт.

1-5

710-M10125

SCREW-SET

#0001

2шт.

1-1

S651-810002

NIPPLE-GREASE

#0001

1шт.

1-6

120-M33

WASHER

1шт.

1-7

110-M33

NUT-LOCK

1шт.

1-8

220-85C100L

FLANGE COMPLETE

1шт.

1-9

230-5675

SPACER

1шт.

2

81LB-01100

DRIVE SHAFT-CENTER

1шт.

2-1

103-21UNF859

BOLT

8шт.

2-2

100-8-5C-1

J/BEARING ASSY

2шт.

2-3

220-85C265L

SLIP YOKE

CHANGE WITH 2-5

1шт.

2-4

101-PT81

NIPPLE-GREASE

2шт.

2-5

810-53JK

SEAL-JOINT

1шт.

2-6

40AF-85C875L

SHAFT ASSY-SLIP

1шт.

2-7

900-67

EXPANSION PLUG

1шт.

4

81LB-30040

BRACKET WA

#0450

1шт.

4

81LB-30080

BRACKET WA

CHANGE WITH 1-4 #0451

1шт.

6

S017-16045D

BOLT-HEX

#0450

8шт.

6

S017-16045D

BOLT-HEX

#0451

4шт.

7

S441-160006

WASHER-HARDENED

#0450

8шт.

7

S441-160006

WASHER-HARDENED

#0451

4шт.

10

81L1-3410

BOLT-HEX

20шт.

11

S017-20070D

BOLT-HEX

#0451

4шт.

12

S205-20100B

NUT-HEX

#0451

4шт.

13

S441-200006

WASHER-HARDENED

#0451

8шт.
