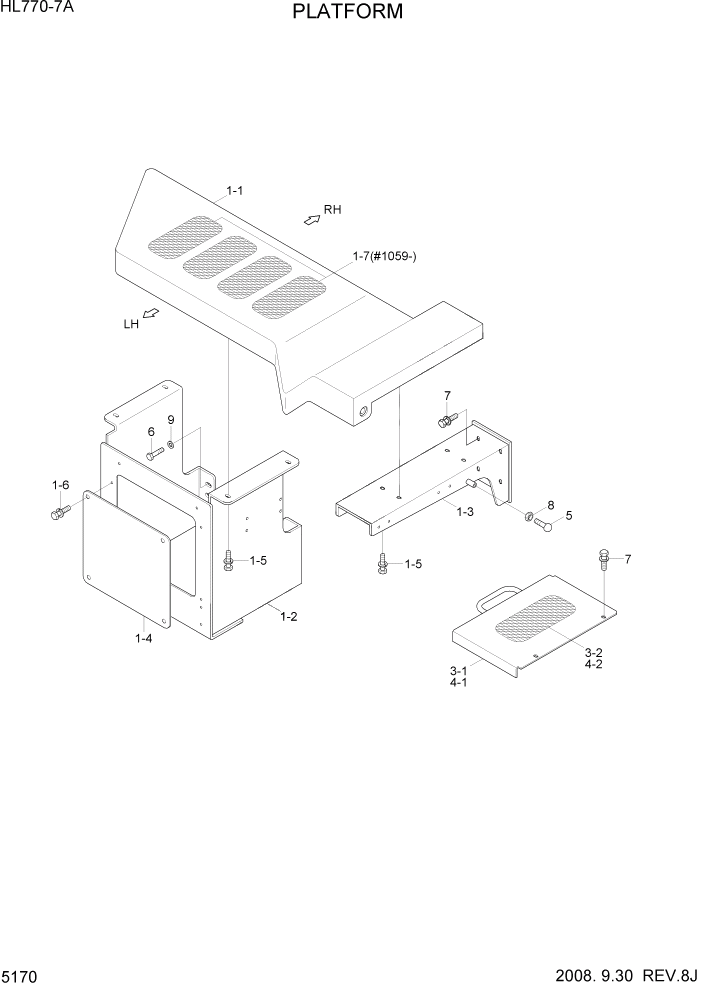

Запчасти Hyundai HL770-7A PAGE 5170 PLATFORM СТРУКТУРА

1

71LB-53170

PLATFORM ASSY-LH

#0232

1шт.

1

71LB-53171

PLATFORM ASSY-LH

#0233 - #1058

1шт.

1

71LB-53172

PLATFORM ASSY-LH

#1059

1шт.

1

71LB-50180

PLATFORM ASSY-RH

#1058

1шт.

1

71LB-53181

PLATFORM ASSY-RH

#1059

1шт.

1-1

71LB-50081

COVER WA-LH

#0232

1шт.

1-1

71LB-53010

COVER WA-LH

#0233

1шт.

1-1

71LB-50091

COVER WA-RH

#0232

1шт.

1-1

71LB-53020

COVER WA-RH

#0233

1шт.

1-2

71LB-50190

SUPPORT WA-LH

1шт.

1-2

71LB-50200

SUPPORT WA-RH

1шт.

1-3

71LB-50122

SUPPORT WA-LH

1шт.

1-3

71LB-50132

SUPPORT WA-RH

1шт.

1-4

71LB-50300

PLATE

1шт.

1-5

S037-123056

BOLT-W/WASHER

8шт.

1-6

S037-122556

BOLT-W/WASHER

4шт.

1-7

91E1-26300

STEP TREAD

#1059

4шт.

3

71LB-50031

COVER WA-BATT,LH

#1058

1шт.

3

71LB-50032

COVER WA-BATT,LH

#1059

1шт.

3-1

71LB-50031

COVER WA-BATT,LH

#1059

1шт.

3-2

91E1-26300

STEP TREAD

#1059

1шт.

4

71LB-50041

COVER WA-BATT,RH

#1058

1шт.

4

71LB-50042

COVER WA-BATT,RH

#1059

1шт.

4-1

71LB-50041

COVER WA-BATT,RH

#1059

1шт.

4-2

91E1-26300

STEP TREAD

#1059

1шт.

5

71EH-13150

RUBBER-BUMPER

2шт.

6

S017-16030D

BOLT-HEX

12шт.

7

S037-122556

BOLT-W/WASHER

16шт.

8

S285-10100B

NUT-FLANGED

2шт.

9

S441-160006

WASHER-HARDENED

12шт.
