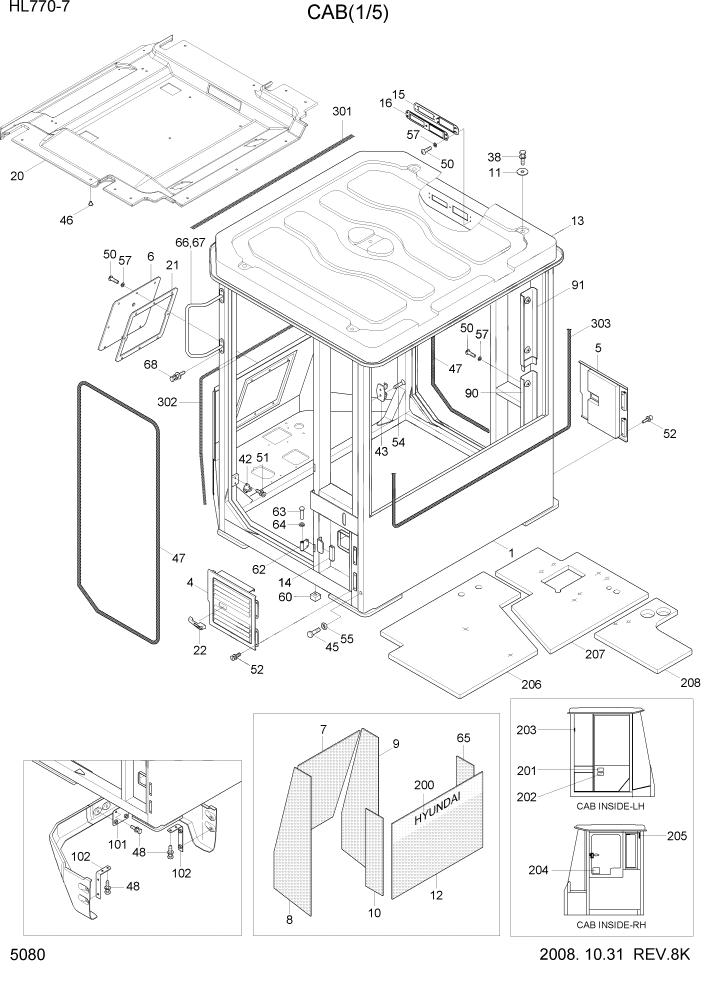

Запчасти Hyundai HL770-7 PAGE 5080 CAB(1/5) СТРУКТУРА
№
Артикул
Название
Примечание
Количество
*
71LB-00012
CAB ASSY
FIXED WINDOW #0003
1шт.
*
71LB-00013
CAB ASSY
FIXED WINDOW #0004 - #0043
1шт.
*
71LB-00014
CAB ASSY
FIXDE WINDOW #0044 - #0172
1шт.
*
71LB-00015
CAB ASSY
FIXED WINDOW #0173 - #0358
1шт.
*
71LB-00016
CAB ASSY
FIXED WINDOW #0359 - #0755
1шт.
*
71LB-00017
CAB ASSY
FIXED WINDOW #0756
1шт.
*
71LB-00070
CAB ASSY-F/WIN,L/NOISE
FIXED,LOW NOISE #0564 - #0755
1шт.
*
71LB-00071
CAB ASSY-F/WIN,L/NOISE
FIXED,LOW NOISE #0756
1шт.
*
71LB-00020
CAB ASSY
SLIDING WINDOW #0011 - #0043
1шт.
*
71LB-00021
CAB ASSY
SLIDING WINDOW #0044 - #0172
1шт.
*
71LB-00022
CAB ASSY
SLIDING WINDOW #0173 - #0358
1шт.
*
71LB-00023
CAB ASSY
SLIDING WINDOW #0359 - #0755
1шт.
*
71LB-00024
CAB ASSY
SLIDING WINDOW #0756
1шт.
*-1
71LB-01012
CAB SUB ASSY
FIXED WINDOW #0003
1шт.
*-1
71LB-01013
CAB SUB ASSY
FIXED WINDOW #0004 - #0358
1шт.
*-1
71LB-01014
CAB SUB ASSY
FIXED WINDOW #0359
1шт.
*-1
71LB-07010
CAB SUB ASSY
SLIDING WINDOW #0011 - #0358
1шт.
*-1
71LB-07011
CAB SUB ASSY
SLIDING WINDOW #0359
1шт.
*
71LB-00080
CAB ASSY-S/WIN,L/NOISE
SLIDE,LOW NOISE #0564 - #0755
1шт.
*
71LB-00081
CAB ASSY-S/WIN,L/NOISE
SLIDE,LOW NOISE #0756
1шт.
*-1
71LB-01012
CAB SUB ASSY
FIXED WINDOW #0003
1шт.
*-1
71LB-01013
CAB SUB ASSY
FIXED WINDOW #0004 - #0358
1шт.
*-1
71LB-01014
CAB SUB ASSY
FIXED WINDOW #0359 - #0755
1шт.
*-1
71LB-01015
CAB SUB ASSY
FIXED WINDOW #0756
1шт.
*-1
71LB-07010
CAB SUB ASSY
SLIDING WINDOW #0011 - #0358
1шт.
*-1
71LB-07011
CAB SUB ASSY
SLIDING WINDOW #0359 - #0755
1шт.
*-1
71LB-01015
CAB SUB ASSY
SLIDING WINDOW #0756
1шт.
1
71LB-02012
CAB WA
#0755
1шт.
1
71LB-02013
CAB WA
#0756
1шт.
4
71LB-01041
COVER ASSY-LH
1шт.
5
71LB-01051
COVER ASSY-RH
1шт.
6
71LB-01061
COVER WA-W/MOTOR
1шт.
8
71LB-01081
GLASS-FRONT,SIDE,LH
1шт.
11
71LB-01110
WASHER-ROOF COVER
#0001
5шт.
13
71LB-01131
COVER-ROOF
SEE 5070 #0043
1шт.
14
71LB-01140
PAD-RUBBER
1шт.
15
71LB-01151
PLATE WA-CASSETTE
1шт.
16
71LB-01161
COVER-CASSETTE
#0584
1шт.
16
71LB-01162
COVER-CASSETTE
#0585
1шт.
20
71LB-01201
HEADLINING
#0755
1шт.
20
71LB-11450
HEADLINING
#0756
1шт.
21
71LB-01211
PAD-RUBBER
1шт.
22
71LB-01220
LATCH ASSY
2шт.
38
S017-160202
BOLT-HEX
5шт.
43
71N6-02920
HOOK-COAT
1шт.
45
71EH-13150
RUBBER-BUMPER
4шт.
46
E171-1310
PLUG-HEADLINER
14шт.
47
S771-039500
WEATHER STRIP
2шт.
48
S037-122552
BOLT-W/WASHER
#0004
6шт.
50
S161-080206
SCREW-CROSS R/ROUND
20шт.
51
S145-080166
SCREW-FLAT HD
4шт.
52
S132-061656
SCREW-W/WASHER
8шт.
54
S141-040206
SCREW-FLAT HD
2шт.
55
S203-101006
NUT-HEX
4шт.
57
S403-082006
WASHER-PLAIN
20шт.
60
71LB-01560
FOAM-SPONGE
1шт.
62
71LB-01600
HINGE
6шт.
63
74L3-05330
PIN-HINGE
6шт.
64
74L3-04450
WASHER-COPPER
6шт.
65
71LB-01681
GLASS-SIDE,RH
1шт.
66
71LB-01691
HANDRAIL WA-LH
#0010
1шт.
66
71LB-01692
HANDRAIL WA-LH
#0011
1шт.
67
71LB-01701
HANDRAIL WA-RH
#0010
1шт.
67
71LB-01702
HANDRAIL WA-RH
#0011
1шт.
90
71LB-20141
COVER-HARNESS(LOW)
1шт.
91
71LB-20151
COVER-HARNESS(UP)
1шт.
101
71LB-04190
PLATE WA-FRONT
#0004
1шт.
102
71LB-04200
PLATE WA-SIDE
#0004
2шт.
303
71LB-03560
SEAL-REAR
#0001
1шт.
200
91LB-21000
ADHESIVE SUN SCREEN
#0173
1шт.
201
91LB-01230
DECAL-MAX H/REACH
LOW NOISE #0564
1шт.
202
91LB-01240
DECAL-ROLL OVER
LOW NOISE #0564
1шт.
203
91LB-01340
DECAL-HAMMER
LOW NOISE #0564
1шт.
204
91N6-07261
ALTERNATE EXIT
LOW NOISE #0564
1шт.
205
91N6-07290
DECAL-FIRE
LOW NOISE #0564
1шт.
206
71LB-11261
SPONGE-BOTTOM/LOW(1)
LOW NOISE #0564
1шт.
207
71LB-11271
SPONGE-BOTTOM/LOW(2)
LOW NOISE #0564
1шт.
208
71LB-11281
SPONGE-BOTTOM/LOW(3)
LOW NOISE #0564 - #0755
1шт.
208
71LB-04240
SPONGE-BOTTOM/LOW(3)
LOW NOISE #0756
1шт.
*-2
@
ELECTRIC CAB ASSY
NOT
1шт.
Выбрано товаров: 88
