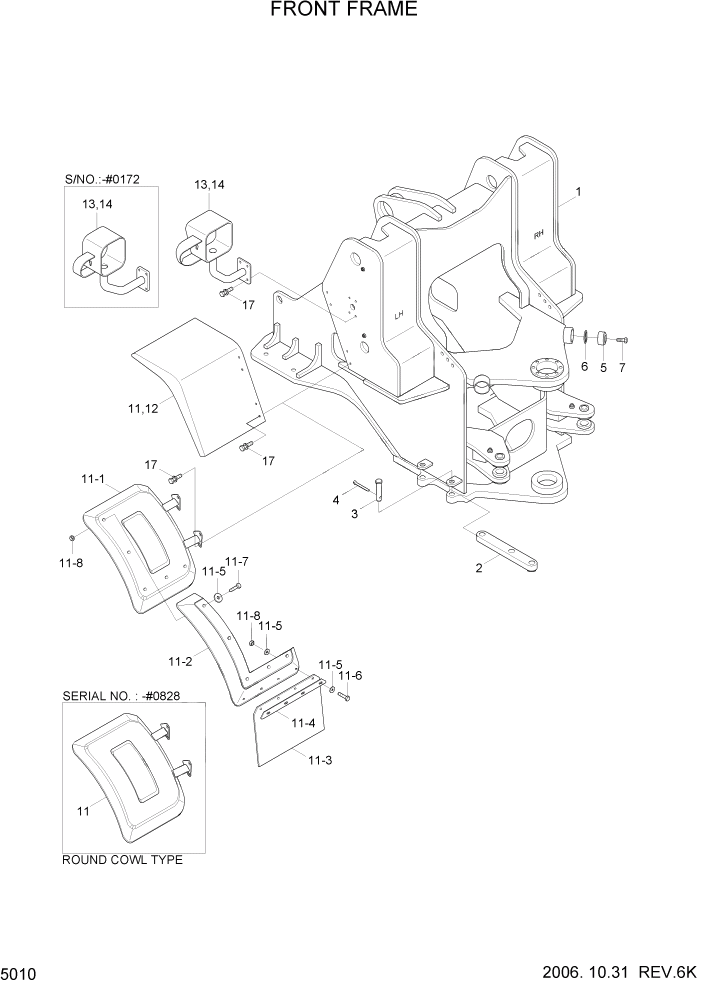

Запчасти Hyundai HL770-7 PAGE 5010 FRONT FRAME СТРУКТУРА

1

41LB-00011

FRONT FRAME WA

SQUARE COWL

1шт.

1

43LB-00010

FRONT FRAME WA

ROUND COWL TYPE #0152

1шт.

2

41LB-09010

BAR

1шт.

3

41LB-09020

PIN-CLEVIS

2шт.

4

41L1-1074

PIN-BETA

2шт.

5

44L1-00401

STOPPER

2шт.

6

44L1-00410

SHIM(3.0T)

2шт.

7

S017-200452

BOLT-HEX

2шт.

11

71LB-70011

FRONT FENDER WA-LH

1шт.

11

71LC-72021

FENDER WA-FRONT

ROUND COWL TYPE #0152 - #0828

2шт.

11

71LB-72050

FENDER ASSY-LH

ROUND COWL TYPE #0829

1шт.

11

71LB-72060

FENDER ASSY-RH

ROUND COWL TYPE #0829

1шт.

13

71LB-72010

LAMP BOX WA-LH

SQUARE TYPE #0173

1шт.

13

71LB-70090

LAMP BOX WA-LH

SQUARE TYPE #0037 - #0172

1шт.

11-1

71LB-72070

FENDER WA-LH

ROUND COWL TYPE #0829

1шт.

14

71LB-72020

LAMP BOX WA-RH

SQUARE TYPE #0173

1шт.

14

71LB-70100

LAMP BOX WA-RH

SQUARE TYPE #0037 - #0172

1шт.

11-1

71LB-72080

FENDER WA-RH

ROUND COWL TYPE #0829

1шт.

11-2

71LB-72090

WIDENER-LH

ROUND COWL TYPE #0829

1шт.

11-2

71LB-72100

WIDENER-RH

ROUND COWL TYPE #0829

1шт.

11-3

71LB-72110

RUBBER-PLATE

ROUND COWL TYPE #0829

1шт.

11-4

71LB-72120

PLATE

ROUND COWL TYPE #0829

1шт.

11-5

71LB-72130

WASHER-WIDE

ROUND COWL TYPE #0829

13шт.

11-6

S018-120306

BOLT-HEX

ROUND COWL TYPE #0829

4шт.

11-7

S018-120206

BOLT-HEX

ROUND COWL TYPE #0829

5шт.

11-8

S205-121006

NUT-HEX

ROUND COWL TYPE #0829

9шт.

11

71LB-70011

FRONT FENDER WA-LH

SQUARE COWL

1шт.

12

71LB-70021

FRONT FENDER WA-RH

SQUARE COWL

1шт.

13

71LB-70050

LAMP BOX WA-LH

#0172

1шт.

13

71LB-72010

LAMP BOX WA-LH

#0173

1шт.

13

71LB-70090

LAMP BOX WA-LH

#0037 - #0172

1шт.

14

71LB-70060

LAMP BOX WA-RH

#0172

1шт.

14

71LB-72020

LAMP BOX WA-RH

#0173

1шт.

14

71LB-70100

LAMP BOX WA-RH

#0037 - #0172

1шт.

17

S037-123052

BOLT-W/WASHER

16шт.

11

71LB-70011

FRONT FENDER WA-LH

1шт.

12

71LB-70021

FRONT FENDER WA-RH

1шт.
