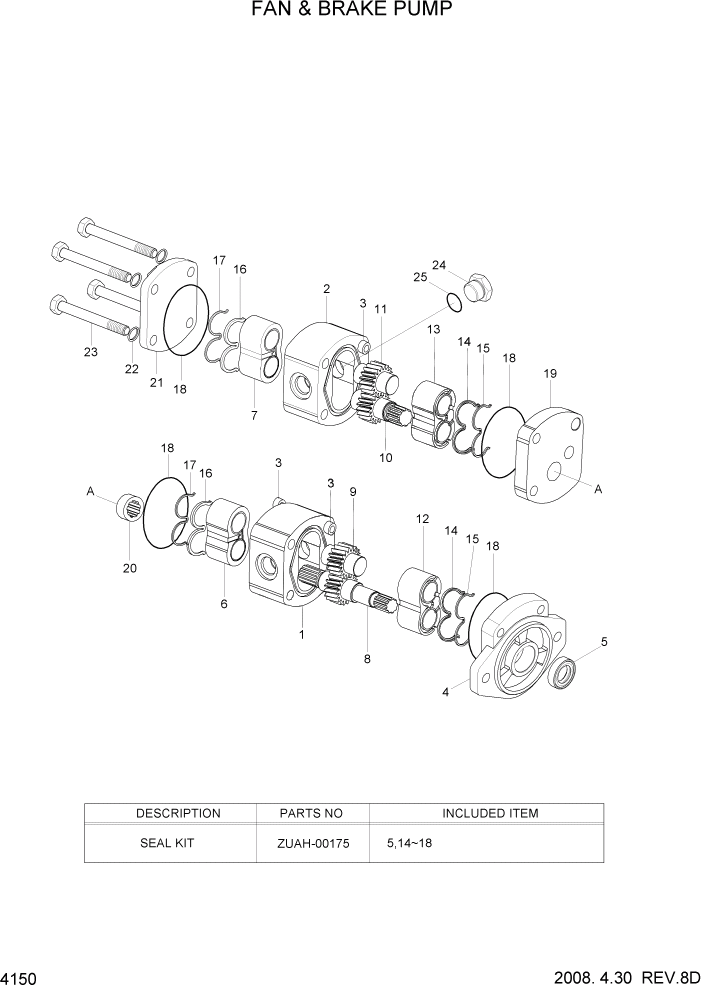

Запчасти Hyundai HL770-7 PAGE 4150 FAN & BRAKE PUMP ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31LC-40010

FAN & BRAKE PUMP

#0128

1шт.

*

31LB-40300

FAN & BRAKE PUMP

#0129

1шт.

1

@

BODY

NOT

1шт.

2

@

BODY

NOT

1шт.

3

@

PIN-DOWEL

NOT

6шт.

4

@

COVER-FRONT

NOT

1шт.

K5

@

SHAFT SEAL

NOT

1шт.

6

@

BUSHING

NOT

1шт.

7

@

BUSHING

NOT

1шт.

8

@

GEAR-DRIVE

NOT

1шт.

9

@

GEAR-DRIVEN

NOT

1шт.

10

@

GEAR-DRIVE

NOT

1шт.

11

@

GEAR-DRIVEN

NOT

1шт.

12

@

BUSHING

NOT

1шт.

13

@

BUSHING

NOT

1шт.

K14

@

BUSH LOBE SEAL

NOT

2шт.

K15

@

BACKING RING

NOT

2шт.

K16

@

BUSH LOBE SEAL

NOT

2шт.

K17

@

BACKING RING

NOT

2шт.

K18

@

BODY SEAL

NOT

4шт.

19

@

PLATE-INTERMEDIATE

NOT

1шт.

20

@

COUPLING

NOT

1шт.

21

@

COVER-REAR

NOT

1шт.

22

@

WASHER-SPRING

NOT

4шт.

23

@

SCREW

NOT

4шт.

24

@

PLUG

NOT #0129

1шт.

25

@

O-RING

NOT #0129

1шт.

K

ZUAH-00175

SEAL KIT

SEE ILLUST

2шт.
