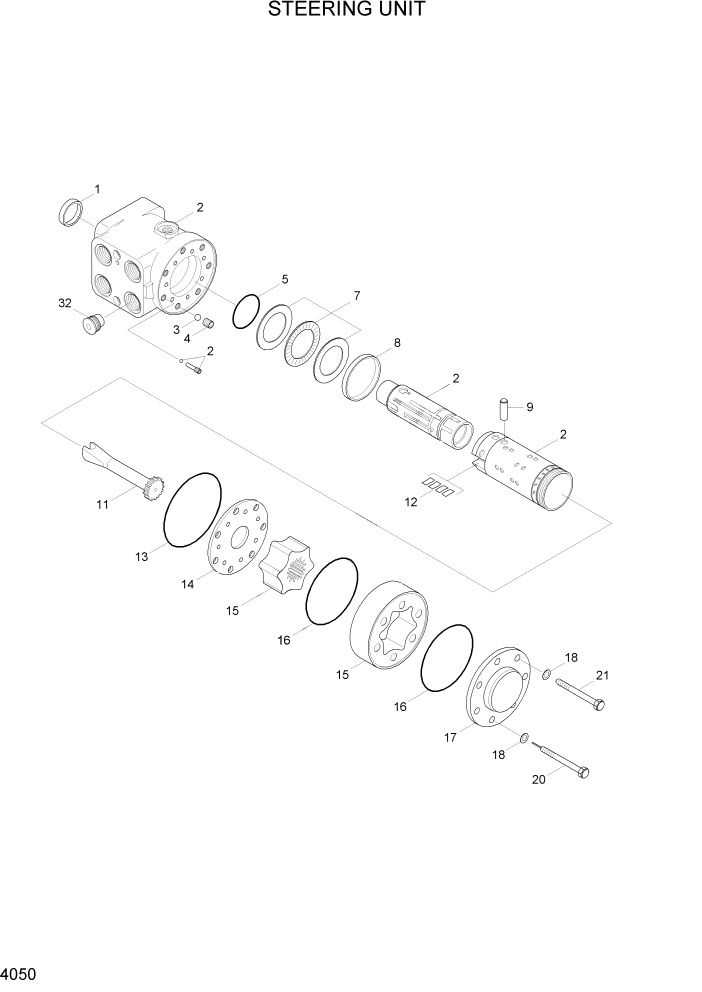

Запчасти Hyundai HL770-7 PAGE 4050 STEERING UNIT ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31L6-00990

STEERING UNIT

1шт.

K1

YUBS-00001

SEAL-DUST

633B9002

1шт.

N2

@

HSG,SPOOL,SLEEVE

NOT

1шт.

3

YUBS-00002

BALL

689X1031

1шт.

4

YUBS-00003

BUSHING-THREAD

150.0304

1шт.

K5

YUBS-00004

O-RING

150N4014

1шт.

7

YUBS-00005

BEARING ASSY

150.4262

1шт.

8

YUBS-00006

RING

150.031

1шт.

9

YUBS-00007

PIN-CROSS

150.0305

1шт.

11

YUBS-00008

SHAFT-CARDAN

150.0844

1шт.

12

YUBS-00009

SPRING SET

150.4265

1шт.

K13

YUBS-00010

O-RING

633B1202

1шт.

14

YUBS-00011

PLATE-DISTRIBUTOR

150N0610

1шт.

15

YUBS-00012

SET-GEAR WHEEL

150.4187

1шт.

K16

YUBS-00013

O-RING

633B1173

2шт.

17

YUBS-00014

COVER-END

150.0328

1шт.

K18

YUBS-00015

WASHER

684X2481

7шт.

20

YUBS-00016

SCREW-PIN

150.1575

1шт.

21

YUBS-00017

SCREW

681X1834

6шт.

32

YUBS-00018

VALVE-CHECK

150N4093

1шт.

K

YUBS-00019

SEAL KIT(1,5,13,16,18)

150N4038

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
